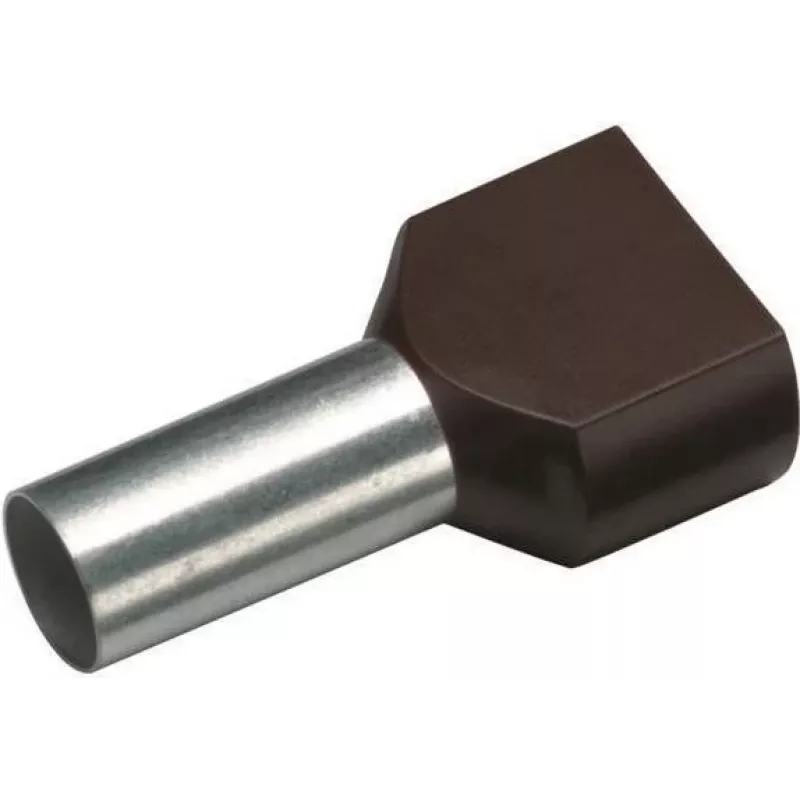

Cimco διπλό ακροχιτώνιο 1,5 mm² 8 mm μερικώς μονωμένο μαύρο 18 2470 100 τεμ.

The Cimco 18 2470 twin wire end sleeve is a precision-engineered ferrule for terminating two fine-stranded copper conductors in a single crimp. Its funnel-shaped entry simplifies insertion, while the 8 mm tin-plated electrolytic copper sleeve ensures a gas-tight, durable connection. The black polypropylene insulation collar provides strain relief and is partially insulated, leaving the barrel exposed for reliable crimping.

Highlights

• Nominal cross-section: 1.5 mm²
• Sleeve length: 8 mm
• Partially insulated, black polypropylene collar
• Tin-plated electrolytic copper sleeve
• Funnel-shaped entry for easy conductor insertion
• For two fine-stranded copper conductors
• Compliant with DIN 46228 Part 4
• Pack of 100 pieces

In daily use

These twin wire end sleeves are ideal for control cabinets, industrial wiring, and any application where two conductors must be joined in a single terminal point. The partial insulation allows visual inspection of the crimp while protecting the conductor insulation from damage. The black collar is colour-coded for quick identification of the 1.5 mm² size.

Full specifications

• Product type: Twin wire end sleeve (ferrule)
• Nominal cross-section: 1.5 mm²
• Sleeve length: 8 mm
• Insulation type: Partially insulated
• Insulation colour: Black
• Sleeve material: Electrolytic copper (E-Cu)
• Sleeve surface treatment: Tin-plated
• Insulation material: Polypropylene (PP)
• Packaging unit: 100 pieces
• Standard compliance: DIN 46228 Part 4
• Conductor compatibility: Fine-stranded copper conductors
• Temperature range: -40°C to +105°C
• Voltage rating: Up to 600 V
• Flammability rating (insulation): UL 94 V-0
• RoHS compliant: Yes
• Connection method: Crimp
• Entry type: Funnel-shaped
• Number of conductors per ferrule: 2

Final note

Supplied in a pack of 100, the Cimco 18 2470 offers consistent quality for professional wiring tasks.
