Cat.6 μη θωρακισμένο Keystone Jack χωρίς εργαλεία Equip 769211

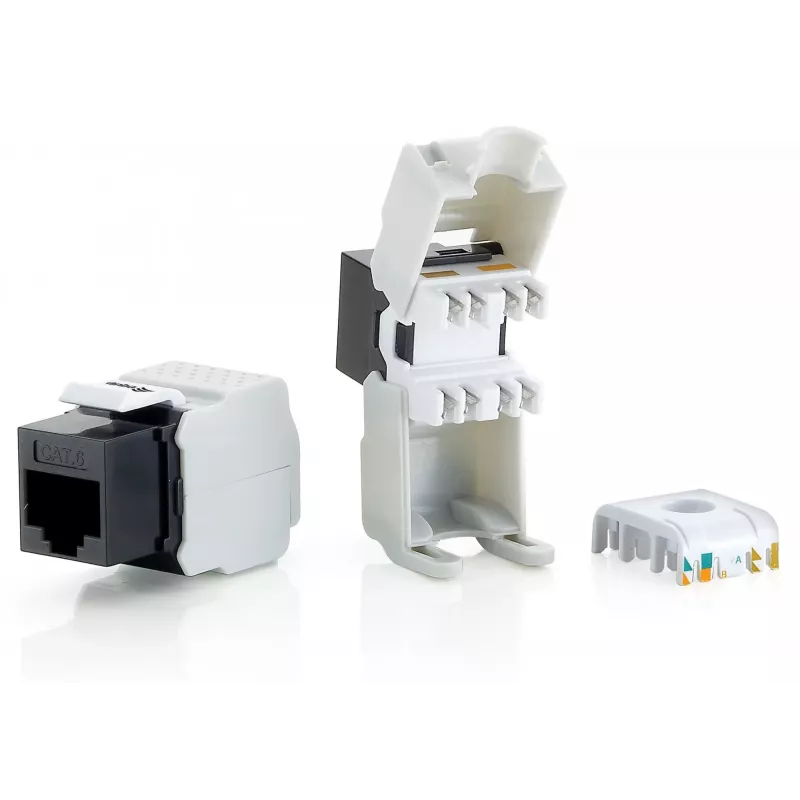

The equip® Cat.6 Unshielded Keystone Jack Toolfree is a compact, tool-free connector designed for reliable Cat.6 cabling installations. Manufactured to meet ISO/IES 11801 and EN 50173 standards, this keystone jack provides a flexible termination point compatible with faceplates, wall-mount outlets, and patch panels. It features gold-plated contacts for improved conductivity and comes in black or white with dimensions of 18.1 mm (W) x 24.5 mm (D) x 41 mm (H).

Advantages

The tool-free design allows fast termination without specialized tools, reducing installation time. Gold-plated connector contacts ensure stable signal transmission and corrosion resistance. Compliance with ISO/IES 11801 and EN 50173 guarantees interoperability and performance suitable for high-speed networking. Its keystone form factor fits standard faceplates and patch panels for flexible deployment.

Suitable for

• Structured Cat.6 horizontal cabling in offices and data rooms
• Patch panels and wall-mounted faceplates
• Home and small-business high-speed Ethernet connections
• Retrofit or new installations requiring tool-free termination

Key specifications

• Category: Cat.6 (Unshielded)
• Mounting: Keystone jack (fits standard faceplates and patch panels)
• Termination: Tool-free
• Contacts: Gold-plated
• Standards: ISO/IES 11801, EN 50173
• Dimensions: 18.1 mm (W) x 24.5 mm (D) x 41 mm (H)
• Colors: Black, White
• Brand: EQUIP
• MPN: 769211
• EAN: 4015867176542

How to use

Prepare the Cat.6 cable by stripping the outer jacket and untwisting pairs according to the colour code. Open the keystone jack's tool-free termination area, insert each conductor into the corresponding slot following the printed wiring guide, and close the termination mechanism to secure the wires. Snap the keystone jack into a compatible faceplate or patch panel until it clicks. After installation, verify connections with a cable tester to ensure correct pair continuity and performance.

Recommendations

For best performance, maintain proper pair untwist lengths and avoid excessive cable bending near the termination. Use a cable tester to certify each run after installation and choose appropriate faceplates or panels that match the keystone format.
