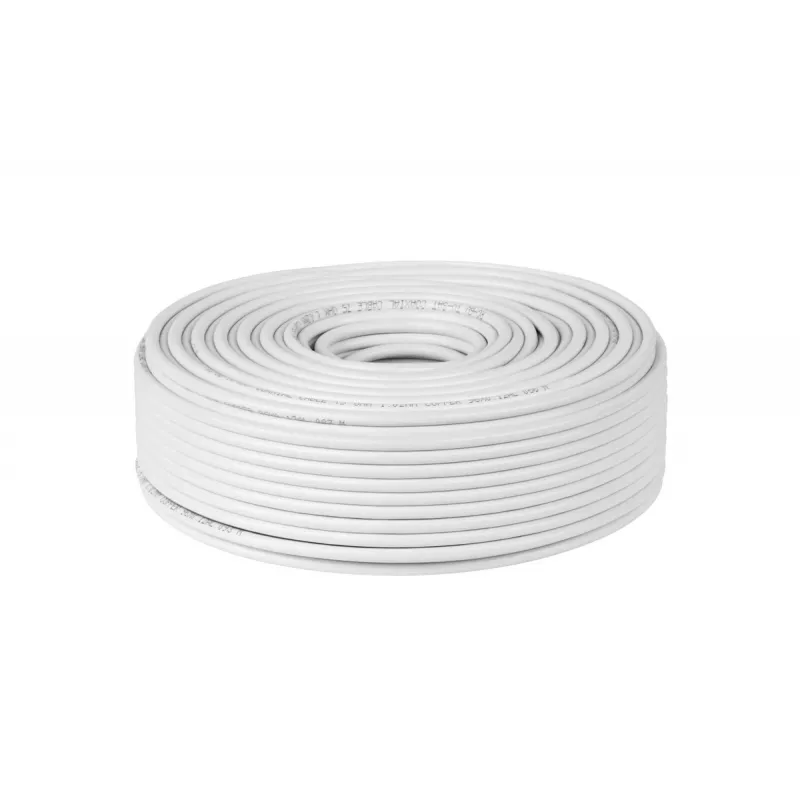

CABLETECH ομοαξονικό καλώδιο RG-6U CU 100m λευκό

Coaxial cable RG-6U with pure copper conductor, delivering exceptional signal integrity for satellite, terrestrial TV, CCTV, and broadband installations. The dual shielding (aluminium foil + 60% copper braid) ensures minimal interference, while the foamed polyethylene dielectric maintains a stable 75 Ohm impedance across the entire 100-meter length.

Advantages

Pure copper core (1.02 mm, 18 AWG) provides superior conductivity and lower attenuation compared to copper-clad steel. Dual-layer shielding effectively blocks EMI/RFI, preserving signal quality even in electrically noisy environments. The white PVC jacket is UV-resistant and flexible, simplifying routing through conduits and around corners. With a velocity of propagation of 82% and capacitance of just 53 pF/m, this cable supports high-frequency signals up to 3 GHz with minimal loss.

Suitable for

• Satellite TV distribution (DVB-S/S2)
• Terrestrial and cable TV (DVB-T/C)
• CCTV analog and HD-over-coax systems
• Broadband internet and DOCSIS modems
• Professional AV installations requiring long runs

Key specifications

• Impedance: 75 Ohm
• Conductor: Pure copper, 1.02 mm (18 AWG)
• Shielding: Dual (aluminium foil + 60% copper braid)
• Jacket: PVC, white, outer diameter 6.9 mm
• Attenuation: 5.9 dB/100m @ 200 MHz, 19.7 dB/100m @ 1000 MHz
• Operating temperature: -20°C to +70°C
• RoHS compliant, voltage rating 300V

Recommendations

For best results, use compression-type F connectors rated for RG-6U and avoid sharp bends (minimum bend radius 10x cable diameter). This cable is ideal for both indoor and outdoor runs when properly sealed.
