Bosch 0 611 910 000 σφυροδράπανο SDS Plus

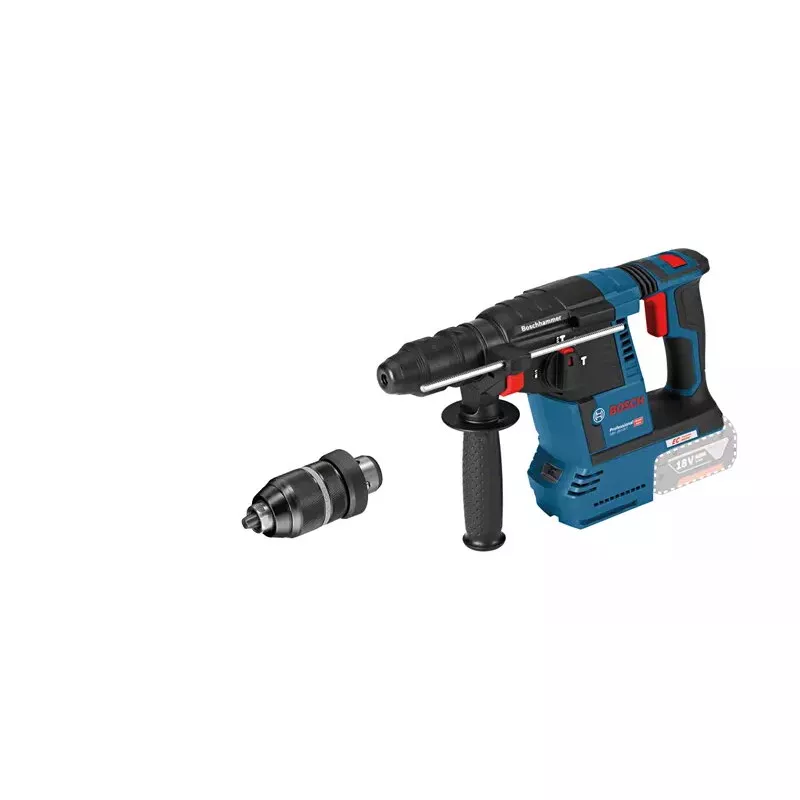

The Bosch 0 611 910 000 rotary hammer is a battery-powered 18 V SDS Plus tool designed for drilling and light chiseling tasks. It combines a compact form factor with a high-impact rate of 980 to 4350 impacts per minute, enabling efficient penetration into masonry and concrete while remaining suitable for metal and wood drilling. The tool’s measured vibration level of 2.5 m/s² during metal drilling supports longer working periods with reduced user fatigue. With overall dimensions of approximately 102 mm (width) × 364 mm (depth) × 226 mm (height) and a multi-colour housing in red, blue and black, the unit is intended for on-site portability and easy handling.

Advantages

The SDS Plus chuck provides reliable bit retention and quick bit changes without additional tools. A broad impact rate range allows adaptation to different materials and drilling diameters, improving efficiency for both repetitive and precision tasks. Battery operation on 18 V power removes the constraints of a power cord and improves mobility on job sites. Low measured vibration for metal drilling contributes to operator comfort and can reduce the risk of interruption during extended use. The compact dimensions make the tool easier to manoeuvre in confined spaces.

Suitable for

• Drilling holes in concrete, brick and stone
• Metal and wood drilling where a compact SDS Plus hammer is appropriate
• Light chiseling and demolition tasks where portability is required
• On-site repair and renovation work with limited access and no immediate mains power

Key specifications

• Chuck type: SDS Plus
• Impact rate: 980–4350 impacts per minute
• Power source: 18 V battery
• Vibration level (metal drilling): 2.5 m/s²
• Dimensions (W×D×H): 102 × 364 × 226 mm
• Colour: Red, Blue, Black

How to use

Install a compatible SDS Plus drill bit by inserting the shank into the chuck until it locks. Select the appropriate impact rate and drilling mode for the material and diameter you are working with. Hold the tool with both hands, apply steady pressure without forcing the bit, and start drilling at low speed to position the hole before increasing speed as needed. For metal or wood drilling, use the relevant drill bits and set the mode accordingly. Observe battery charge level and replace or recharge the battery pack as required to maintain consistent performance.

Recommendations

Use appropriate personal protective equipment including eye protection, hearing protection and gloves. For extended drilling in hard materials, allow occasional breaks to avoid overheating the bit and tool. Match drill bits to material and diameter for optimal results and ensure the battery is compatible with Bosch 18 V systems.
