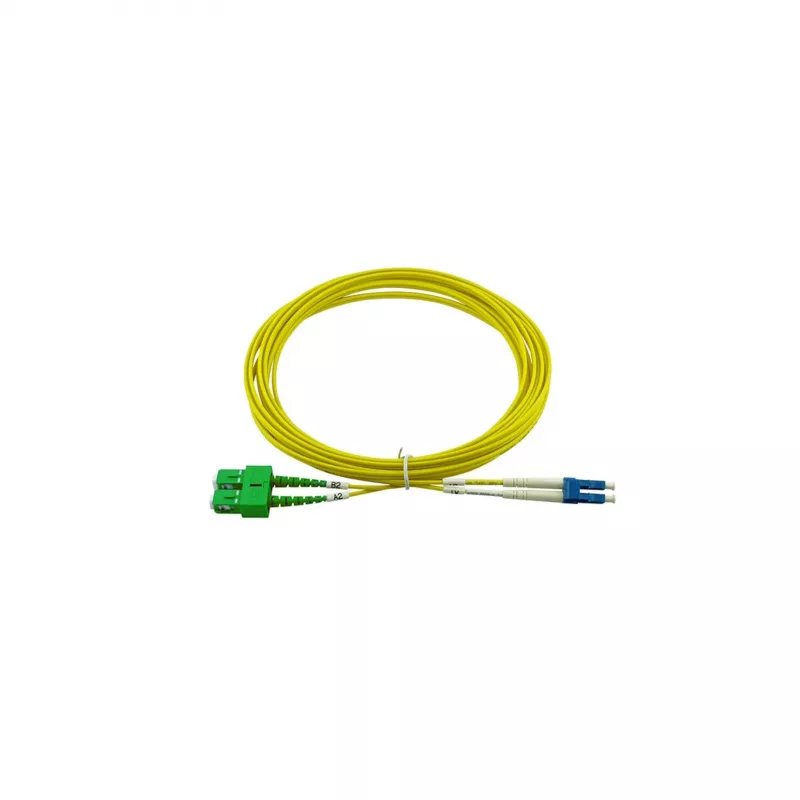

BlueOptics Duplex Καλώδιο Patch Οπτικής Ίνας LC/UPC-SC/APC Singlemode 5 μέτρα

The BlueOptics Duplex Fibre Optic Patch Cable is a high-performance singlemode cable designed for reliable data transmission in demanding network environments. With LC/UPC to SC/APC connectors and a length of 5 metres, this OS2-rated cable ensures low insertion loss and high return loss, making it ideal for data centers, telecommunication networks, LAN, and FTTx applications.

Advantages

This patch cable offers exceptional signal integrity with typical insertion loss ≤0.2 dB and return loss ≥60 dB (APC side). The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, reducing toxic fumes and smoke in case of fire. The yellow jacket colour ensures easy identification for singlemode fibre.

Suitable for

• Data Centers
• Telecommunication Networks
• Local Area Networks (LAN)
• FTTx (Fibre to the x)

Key specifications

• Fibre Type: Singlemode OS2
• Core/Cladding: 9/125 µm
• Connector A: LC/UPC
• Connector B: SC/APC
• Configuration: Duplex (2 Fibres)
• Length: 5 Metres
• Jacket Material: LSZH
• Jacket Colour: Yellow
• Insertion Loss: ≤0.2 dB (typical)
• Return Loss: ≥60 dB (APC side)
• Cable Diameter: 3.0 mm
• Operating Temperature: -20°C to 70°C
• Standards: IEC 61754, TIA/EIA-568-C.3
• Polarity: A-B (Crossed)

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and SC ports. Store in a clean, dry environment.
