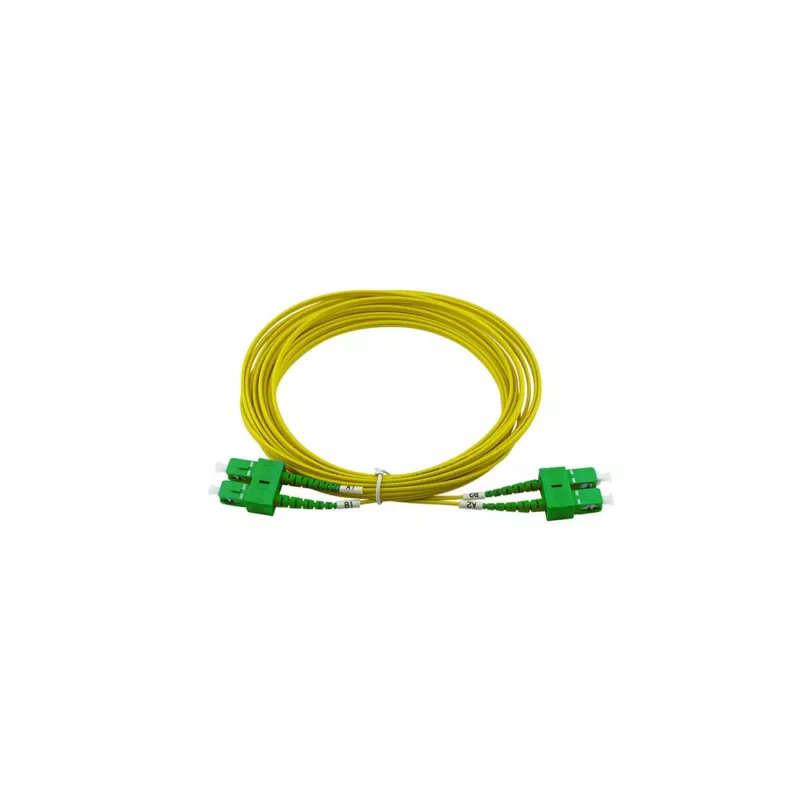

BlueOptics Duplex Fibre Optic Patch Cable SC-APC/SC-APC Singlemode 2 μέτρα

The BlueOptics Duplex Fibre Optic Patch Cable SC-APC/SC-APC Singlemode 2 metres is a high-performance fibre optic cable designed for reliable data transmission in telecommunications and data centre environments. With its duplex configuration and SC-APC connectors, this cable ensures low insertion loss and high return loss, making it ideal for applications requiring minimal signal reflection.

Advantages

This cable offers excellent signal integrity with a maximum insertion loss of ≤0.25 dB and a minimum return loss of ≥60 dB, ensuring stable and efficient data transfer. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces by reducing toxic fumes and smoke in case of fire. The yellow jacket colour allows for easy identification among other cables.

Suitable for

• Telecommunications networks
• Data centres and server rooms
• FTTx (Fibre to the x) installations
• Local Area Networks (LANs) requiring singlemode fibre
• High-speed data transmission up to 10 Gbps and beyond

Key specifications

• Cable Type: Fibre Optic Patch Cable
• Fiber Type: Singlemode OS2
• Core/Cladding Diameter: 9/125 µm
• Connector A: SC-APC
• Connector B: SC-APC
• Polish: APC (Angled Physical Contact)
• Configuration: Duplex
• Length: 2 metres
• Jacket Material: LSZH
• Jacket Colour: Yellow
• Cable Diameter: 3.0 mm
• Insertion Loss (Max): ≤0.25 dB
• Return Loss (Min): ≥60 dB
• Polarity: A-B (Cross-over)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Attenuation at 1310nm: ≤0.35 dB/km
• Attenuation at 1550nm: ≤0.25 dB/km
• Compliance: RoHS, REACH, CE

Recommendations

For optimal performance, ensure that connectors are clean and properly mated. This cable is compatible with standard SC-APC interfaces and is suitable for use in both indoor and controlled outdoor environments. Pair with BlueOptics transceivers for best results.
