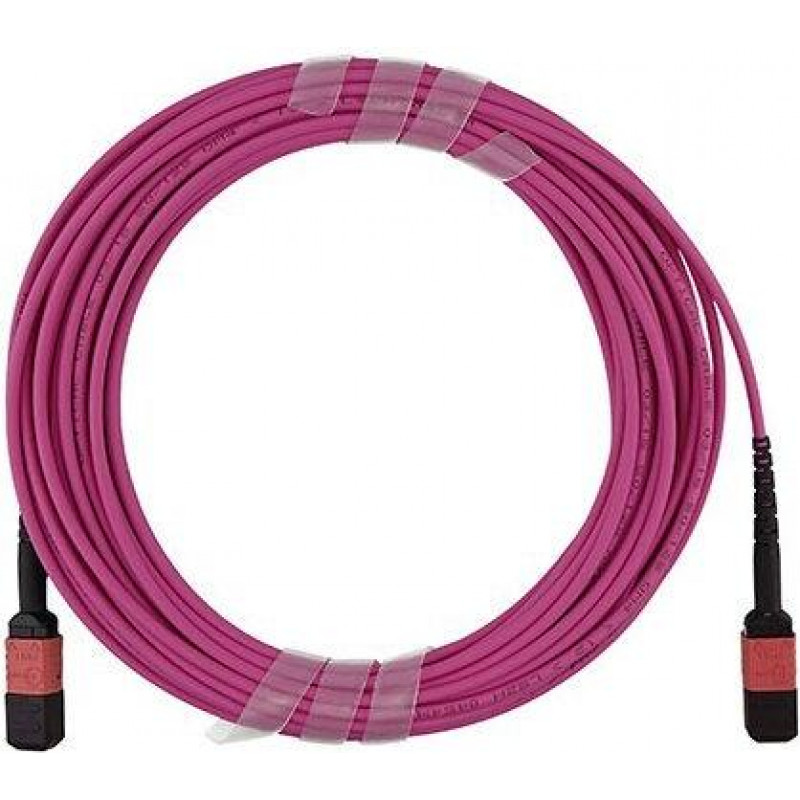

BlueOptics Dell GZLD3CO MPO-MPO Πολύτροπο OM4 Καλώδιο patch 5 μέτρα

For high-density 40G and 100G links, this BlueOptics MPO-MPO OM4 patch cable delivers a factory-terminated 12-fiber trunk in a single 5-meter assembly. Unlike duplex jumpers that multiply cable volume, the MPO interface consolidates twelve 50/125 µm multimode fibers into one push-on connector, cutting installation time and reducing the risk of polarity errors in Dell-compatible structured cabling. The aqua LSZH jacket keeps the cable identifiable as OM4 while meeting low-smoke, zero-halogen fire safety requirements for enclosed spaces.

Highlights

• MPO to MPO (12-fiber) factory-terminated assembly, ready for immediate patching between cassettes, panels, or QSFP transceivers.
• OM4 multimode fiber supports 40GBASE-SR4 and 100GBASE-SR4 up to 150 m at 850 nm, with 50/125 µm core/cladding geometry.
• Type B polarity matches the most common MPO trunk configuration, simplifying link planning in parallel-optic channels.
• Low insertion loss of ≤0.35 dB per mated pair and return loss ≥20 dB ensure stable signal integrity across all twelve lanes.
• Aqua LSZH jacket provides halogen-free flame resistance, low smoke emission, and clear OM4 color coding.

In daily use

Patch from a 40G QSFP+ port to a distribution cassette or directly connect two MPO-enabled switches. The 5-meter length bridges adjacent racks or connects a leaf switch to a spine in the same row without excess slack. The round LSZH jacket is durable yet flexible, and the push-pull MPO connectors engage with an audible click. Because the cable is pre-terminated and polarity-verified, field termination errors are eliminated—just route, plug, and verify the link.

Full specifications

• Brand: BlueOptics
• Model: GZLD3CO-BO
• MPN: GZLD3CO-BO
• Cable type: Fiber optic patch cable, multimode OM4
• Connector A: MPO (Multi-fiber Push On), 12-fiber, male with pins
• Connector B: MPO (Multi-fiber Push On), 12-fiber, male with pins
• Polarity: Type B (key-up to key-up, fiber 1 to fiber 12)
• Fiber count: 12 fibers
• Core/cladding diameter: 50/125 µm
• Jacket color: Aqua
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Cable length: 5 m
• Insertion loss (max): 0.35 dB
• Return loss (min): 20 dB
• Attenuation at 850 nm: 3.0 dB/km
• Attenuation at 1300 nm: 1.0 dB/km
• Supported wavelengths: 850 nm, 1300 nm
• Application: 40 Gigabit Ethernet (40GbE), 100 Gigabit Ethernet (100GbE)
• Compatibility: Dell networking equipment and standard MPO interfaces

Final note

Choose this BlueOptics MPO trunk when you need a reliable, standards-compliant OM4 link that saves space and installation time in high-density fiber environments.
