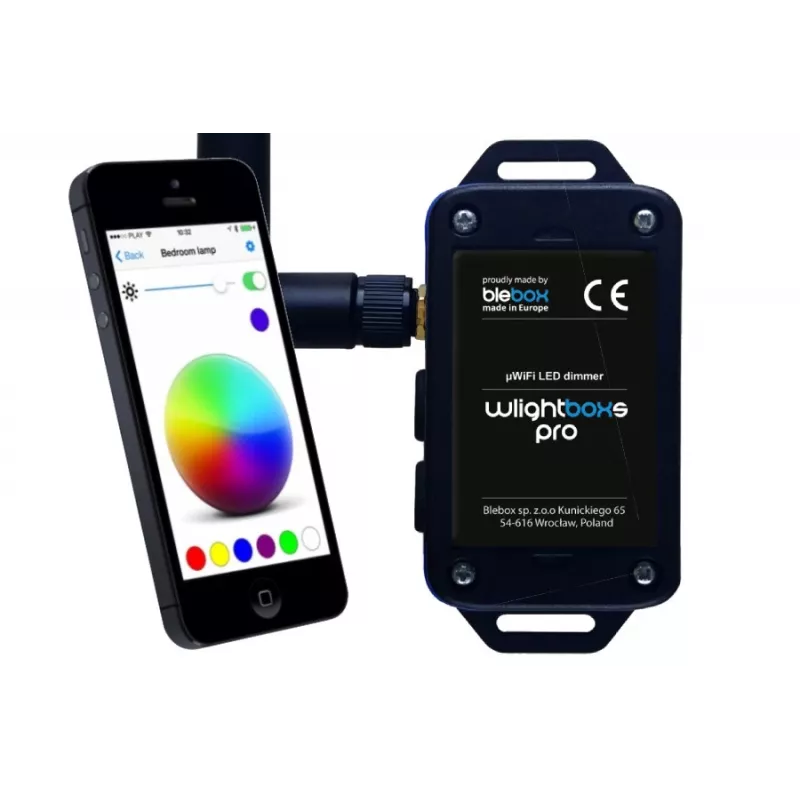

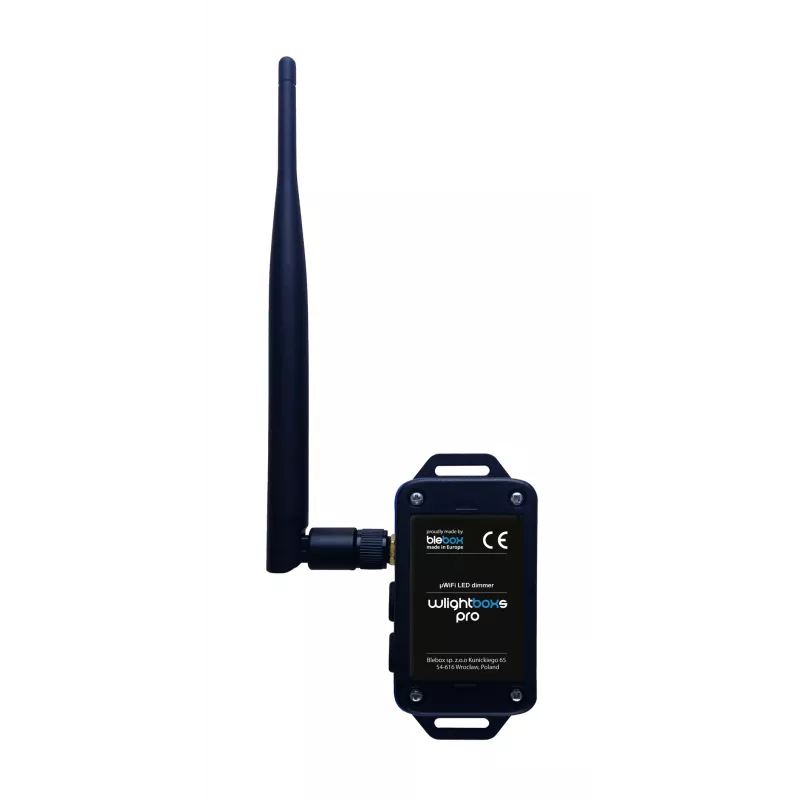

BLEBOX wLightBoxS Pro Smart LED dimmer controller με εξωτερική κεραία 12-24V DC

Traditional LED installations often lack the flexibility to adjust brightness and colour temperature without complex wiring or proprietary hubs. The BLEBOX wLightBoxS Pro solves this by bringing smart, app-controlled dimming to any 12-24V DC LED setup, with an external antenna for reliable Wi-Fi connectivity even in challenging locations.

Who is it for

This controller is ideal for DIY enthusiasts, smart home integrators, and professionals who need precise, wireless control over LED strips, modules, or fixtures. Whether you're upgrading under-cabinet lighting, accent lighting, or architectural installations, the wLightBoxS Pro offers a robust, hub-free solution that works with popular smart home platforms.

Main features

• 5-channel PWM dimming supports single colour, CCT, RGB, RGBW, and RGBWW LED configurations.

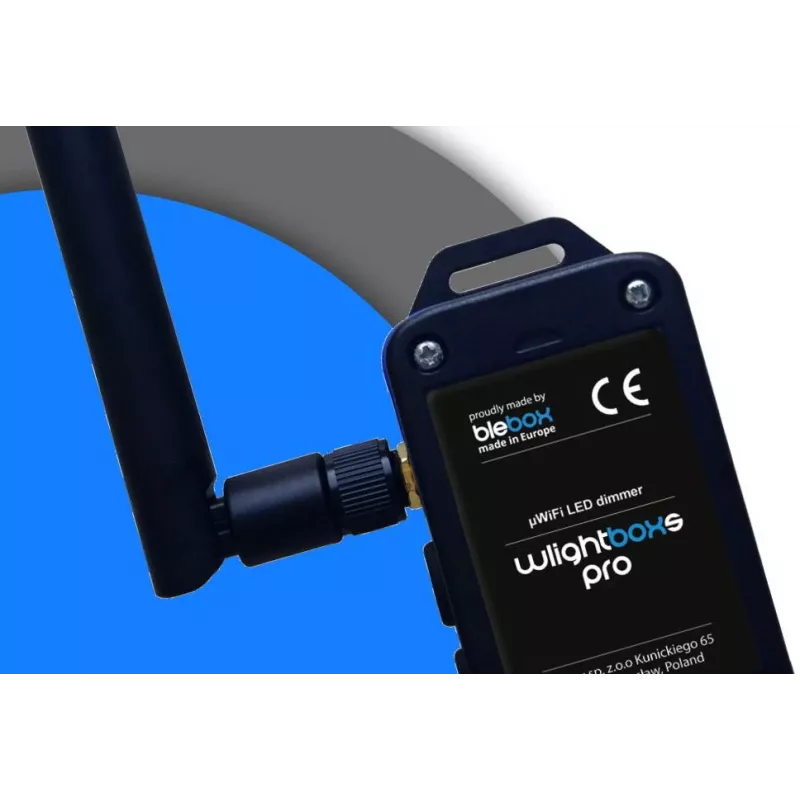

• External SMA antenna ensures strong Wi-Fi signal reception, even when the controller is mounted inside metal enclosures or shielded areas.
• Direct Wi-Fi control via the free BleBox app—no additional hub or gateway required.
• Compatible with REST API, MQTT, and Home Assistant for advanced automation and integration.
• Built-in overload, overheat, and reverse polarity protection for safe, reliable operation.
• Wide 12-24V DC input range with total output up to 12A (144W at 12V, 288W at 24V).
• Compact ABS enclosure with simple screw-terminal wiring for quick installation.

Specifications

• Input voltage: 12-24V DC
• Output channels: 5 (PWM)
• Max output current: 12A total
• Max output power: 144W @ 12V, 288W @ 24V
• Wireless: Wi-Fi 802.11 b/g/n (2.4 GHz), WPA/WPA2
• Operating temperature: -20 to 50 °C
• Enclosure: ABS plastic
• Protection: Overload, overheat, reverse polarity
• Compatibility: BleBox app, REST API, MQTT, Home Assistant

Tips

For best Wi-Fi performance, position the external antenna away from large metal objects. Use the BleBox app to create custom scenes and schedules, or integrate with Home Assistant for advanced automations.
