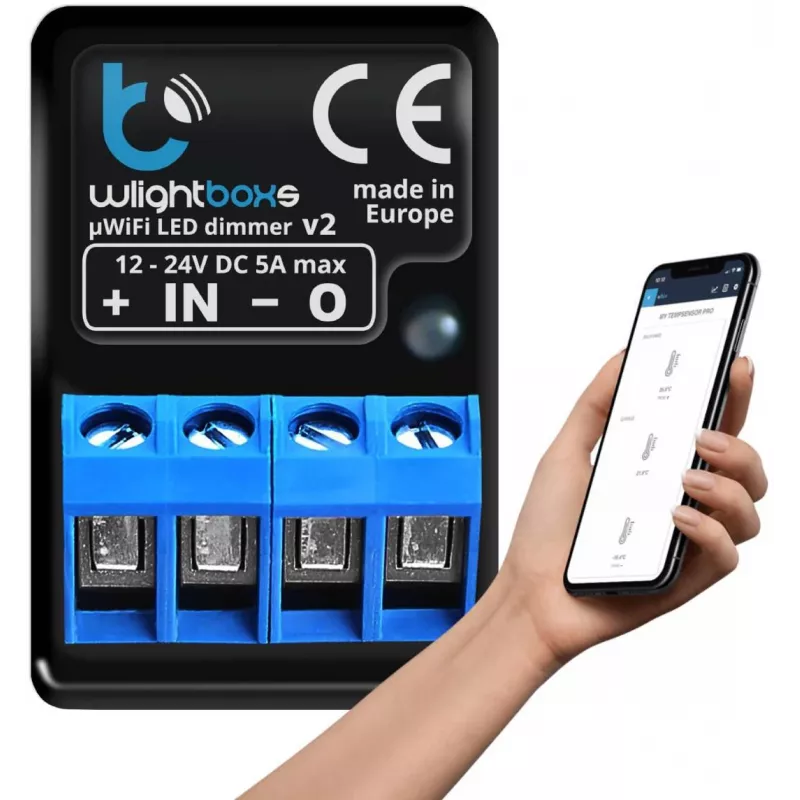

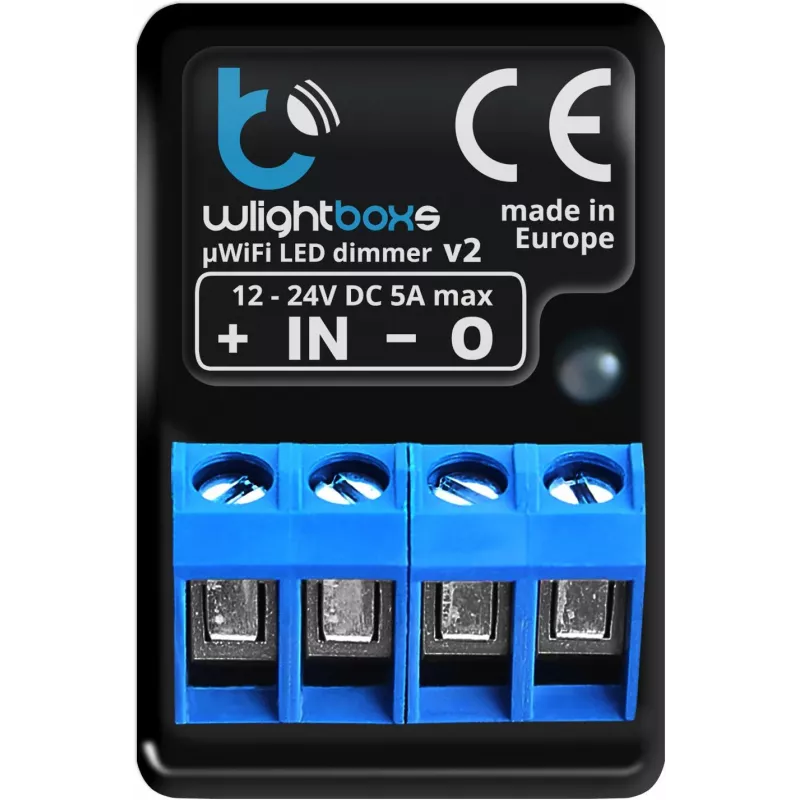

BLEBOX Module Φωτισμού wLightBox S v2

The BLEBOX Lighting Module wLightBox S v2 is a versatile Wi-Fi controlled LED lighting controller designed for smart home automation. It enables precise control of RGB, RGBW, CCT, and single-color LED strips via the BleBox wBox app, web interface, or voice commands through Google Assistant and Amazon Alexa. With four output channels, each supporting up to 3A, and a total output current of 12A, it can handle a wide range of lighting setups. The module operates on 12-24V DC input and output, delivering up to 144W at 12V or 288W at 24V. Its compact design fits in-wall boxes or surface mounts, making it ideal for residential and commercial installations.

Advantages

Easy to install and configure, the wLightBox S v2 offers seamless integration with existing smart home ecosystems. Its PWM dimming ensures smooth, flicker-free lighting transitions, while built-in protection against overload, short-circuit, and overheating guarantees reliable operation. OTA firmware updates keep the device up-to-date with the latest features.

Suitable for

• Smart home lighting control
• RGB, RGBW, CCT, and single-color LED strips
• Indoor and outdoor lighting (with appropriate enclosure)
• Residential and commercial spaces

Key specifications

• Connectivity: Wi-Fi 802.11 b/g/n, 2.4 GHz
• Input/Output Voltage: 12-24V DC
• Output Channels: 4
• Max Output Current per Channel: 3A
• Max Total Output Current: 12A
• Max Total Output Power: 144W (12V) / 288W (24V)
• Supported LED Types: RGB, RGBW, CCT, Single Color
• Dimming Method: PWM
• Control: BleBox wBox App, Web Interface, Voice Control
• Operating Temperature: -20°C to 50°C
• Housing Material: ABS Plastic
• Mounting: In-wall box, Surface mount
• Security: WPA/WPA2
• Standby Power: <1W
• Protection: Overload, Short-circuit, Overheating
• Firmware Updates: OTA

Recommendations

For optimal performance, use a stable 2.4 GHz Wi-Fi network and ensure the power supply matches the LED strip requirements. The module is not compatible with 5 GHz Wi-Fi networks.
