BCS PoE σύστημα buffer για 4 κάμερες, καταγραφέας

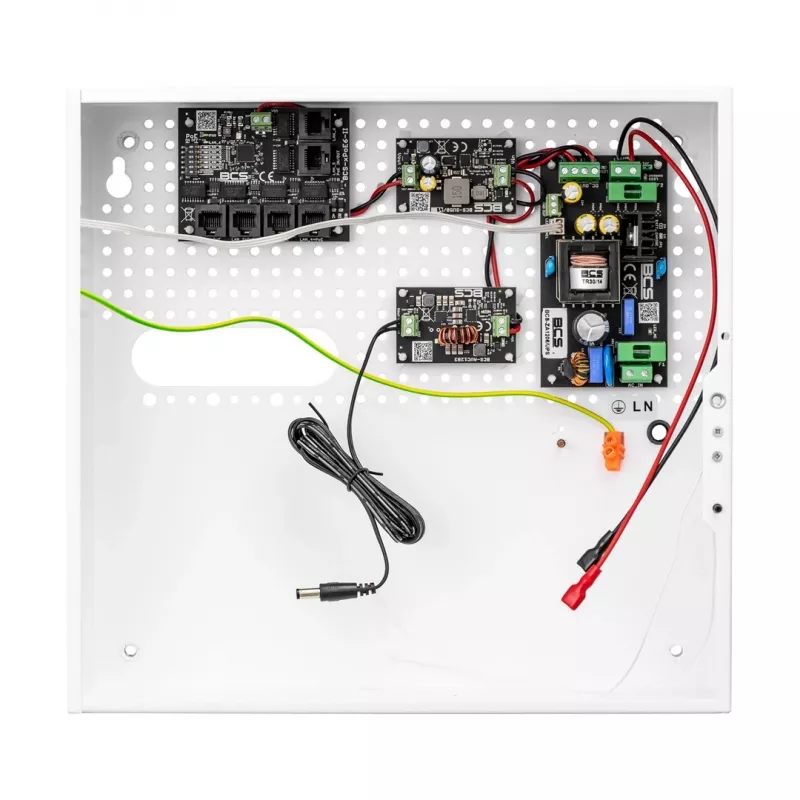

The BCS PoE Buffer System for 4 Cameras, Recorder is a reliable power backup solution designed to keep your surveillance system operational during power outages. With an integrated 12V 7Ah sealed lead-acid battery, it provides up to 20 minutes of backup time, ensuring continuous recording and monitoring. The system features 4 PoE ports (IEEE 802.3af/at) with a total power budget of 60W, delivering up to 30W per port. It also includes a dedicated 12V DC output for an NVR, with 5A current and 60W power. The metal enclosure is wall-mountable and offers surge protection on AC input and PoE ports.

Advantages

Uninterrupted power supply for your IP cameras and NVR, surge protection to safeguard equipment, and easy wall-mount installation. The LED indicators provide clear status updates for power, PoE, and battery.

Suitable for

• Small to medium surveillance systems with up to 4 PoE cameras
• Applications requiring backup power for security recording
• Installations where power reliability is critical

Key specifications

• Number of PoE Ports: 4
• PoE Standard: IEEE 802.3af/at
• Max PoE Power per Port: 30W
• Total PoE Power Budget: 60W
• Data Rate (PoE Ports): 10/100 Mbps
• NVR Output: 12V DC, 5A, 60W
• Uplink Port: 1x RJ45 (10/100 Mbps)
• LAN Port (for NVR): 1x RJ45 (10/100 Mbps)
• Input Voltage: 230V AC
• Internal Battery: 12V 7Ah (Sealed Lead Acid)
• Backup Time: Up to 20 minutes (depending on load)
• Surge Protection: Yes (AC input, PoE ports)
• LED Indicators: Power, PoE Status, Battery Status
• Operating Temperature: -10°C to +40°C
• Mounting Type: Wall-mountable
• Enclosure Material: Metal
• Protection Class: IP20

Recommendations

For optimal performance, connect the system to a dedicated 230V AC outlet and ensure the battery is fully charged before first use. Regularly test the backup function to maintain reliability.
