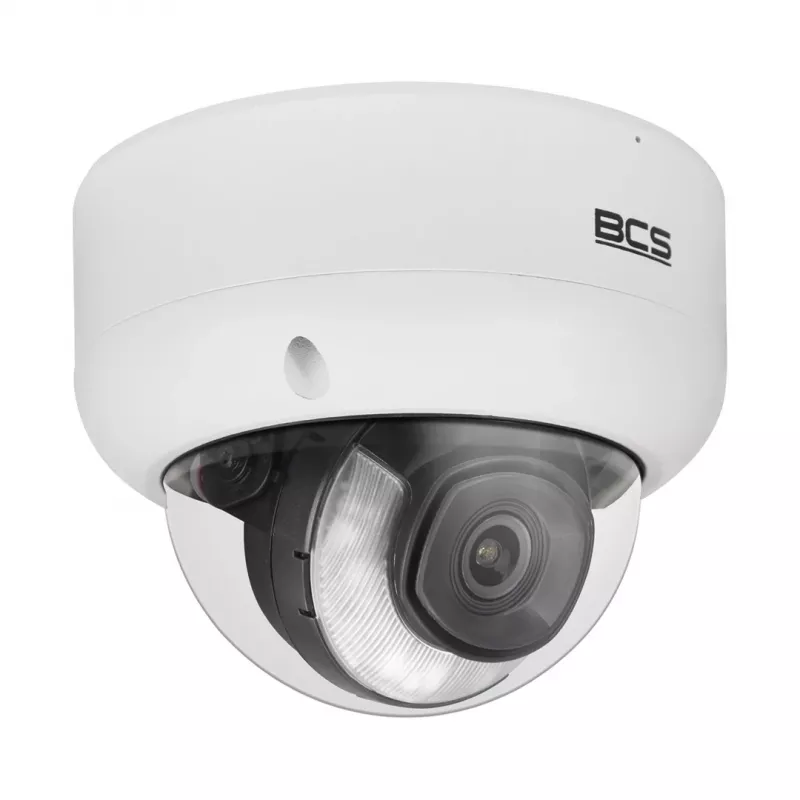

BCS IP Dome Κάμερα 8MP BCS-L-DIP28FCR3L3-Ai1

The BCS-L-DIP28FCR3L3-Ai1 is a high-performance 8-megapixel IP dome camera designed for professional surveillance. Featuring a 1/2.8" CMOS sensor, it delivers crisp 3840x2160 resolution at 25/30 fps. With a 2.8mm fixed lens (F1.6) and 108° horizontal field of view, it covers wide areas. True 120dB WDR ensures clear images in challenging light. Smart IR provides up to 30m night vision. AI capabilities include perimeter protection with human/vehicle classification, face detection, and SMD Plus. The camera is IP67 and IK10 rated, suitable for outdoor and vandal-resistant installations. Powered via 12V DC or PoE (802.3af), with max 6.5W consumption. Supports H.265+/H.265/H.264+/H.264/MJPEG compression and microSD storage up to 256GB.

Advantages

Exceptional 8MP resolution with True WDR for superior image quality in high-contrast scenes. AI analytics reduce false alarms by distinguishing humans and vehicles. Robust IP67/IK10 construction ensures durability in harsh environments. Flexible power options (12V DC/PoE) simplify installation.

Suitable for

• Perimeter surveillance of commercial and industrial sites
• Retail stores, warehouses, and parking lots
• Critical infrastructure requiring high detail and AI analytics

Key specifications

• Sensor: 1/2.8" 8MP CMOS
• Resolution: 3840x2160 (8MP)
• Lens: 2.8mm fixed, F1.6, 108° HFOV
• IR Range: Up to 30m (Smart IR)
• WDR: 120dB True WDR
• Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
• Audio: Built-in microphone
• Storage: microSD slot (max 256GB)
• Power: 12V DC / PoE (802.3af), max 6.5W
• Protection: IP67, IK10
• AI: Perimeter protection, face detection, SMD Plus
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure microSD card is rated for continuous recording (e.g., High Endurance). Mount the camera in a location with clear view of the area of interest, avoiding direct sunlight or extreme reflections.
