BCS 32-κάναλος 8K AI Καταγραφέας βίντεο δικτύου BCS-L-NVR3202-A-8K-Ai2

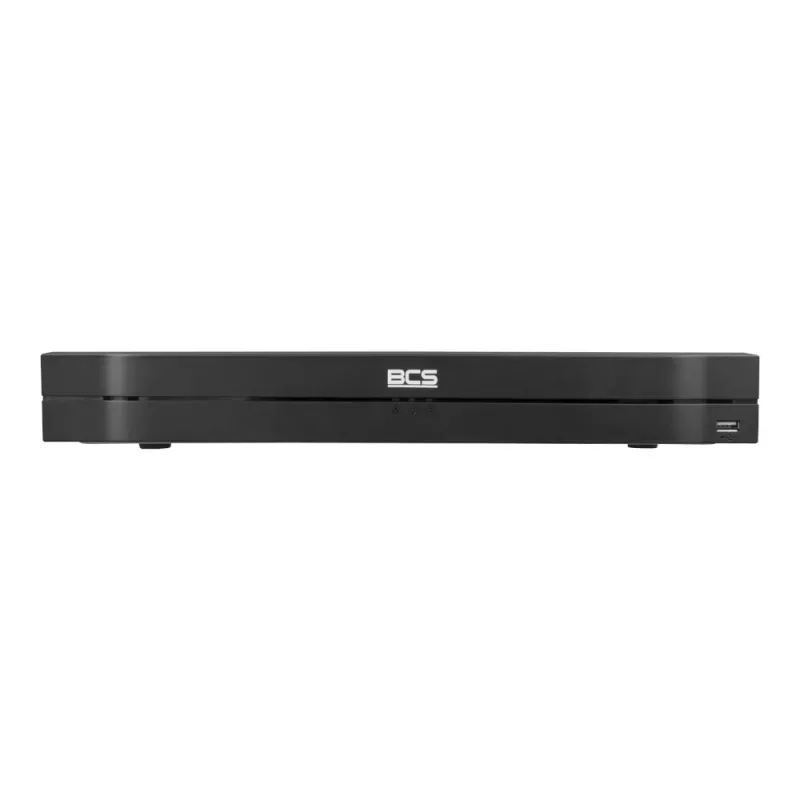

For installations where high-resolution surveillance and intelligent analytics are non-negotiable, the BCS-L-NVR3202-A-8K-Ai2 stands apart. This 32-channel recorder captures 8K video from IP cameras, processes 256 Mbps of incoming bandwidth, and embeds AI directly into the unit — no external server required. Its 1U metal chassis fits standard racks or desktops, making it a compact yet powerful core for professional security systems.

Highlights

• 32 IP camera channels with 8K (7680×4320) recording resolution
• H.265+/H.265/H.264+/H.264 compression to reduce storage demands
• 256 Mbps incoming bandwidth for high-bitrate streams
• Two SATA III bays, each supporting up to 16 TB (32 TB total)
• Built-in AI: Perimeter Protection, SMD Plus, Face Detection/Recognition (up to 2 channels), ANPR (up to 1 channel)
• Simultaneous playback of up to 16 channels
• 1× HDMI output with 8K support and 1× VGA
• 1U rack-mountable design with full metal chassis

In daily use

The NVR runs on an embedded Linux OS, ensuring stable 24/7 operation. The BCS Manager app (iOS/Android) gives you remote live view, playback, and AI event management. Dual SATA bays make storage expansion straightforward, while the Gigabit Ethernet port handles heavy traffic. ONVIF Profile S/T/G support ensures compatibility with a wide range of IP cameras and accessories.

Full specifications

• Video Input: 32 IP channels
• Max Recording Resolution: 8K (7680×4320)
• Video Compression: H.265+, H.265, H.264+, H.264
• Incoming Bandwidth: 256 Mbps
• Outgoing Bandwidth: 128 Mbps
• HDD Bays: 2 SATA III ports
• Max HDD Capacity per Bay: 16 TB (32 TB total)
• Video Outputs: 1× HDMI (up to 8K), 1× VGA (up to 1080p)
• Audio I/O: 1× RCA In / 1× RCA Out
• Alarm I/O: 4 In / 2 Out
• Network: 1× RJ-45 10/100/1000 Mbps Ethernet
• USB: 1× USB 2.0, 1× USB 3.0
• AI: Perimeter Protection, SMD Plus, Face Detection/Recognition (2 ch), ANPR (1 ch)
• Playback: Up to 16 channels simultaneously
• OS: Embedded Linux
• Power: DC12V/4A
• ONVIF: Profile S, T, G
• Rack Mount: 1U

Final note

With 8K recording, embedded AI, and a compact 1U footprint, the BCS-L-NVR3202-A-8K-Ai2 is a practical choice for demanding surveillance projects that require both performance and space efficiency.
