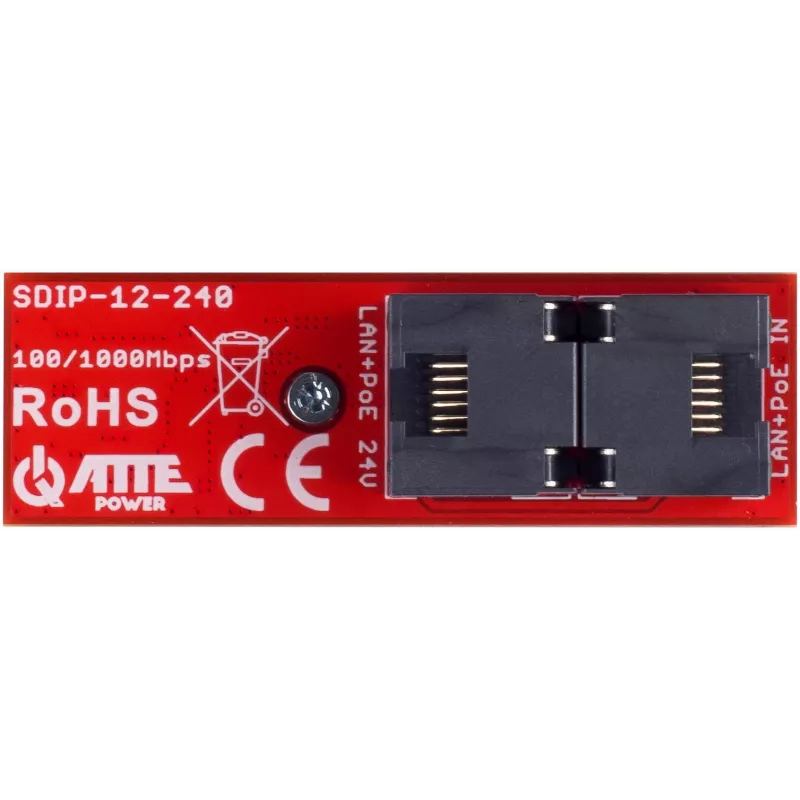

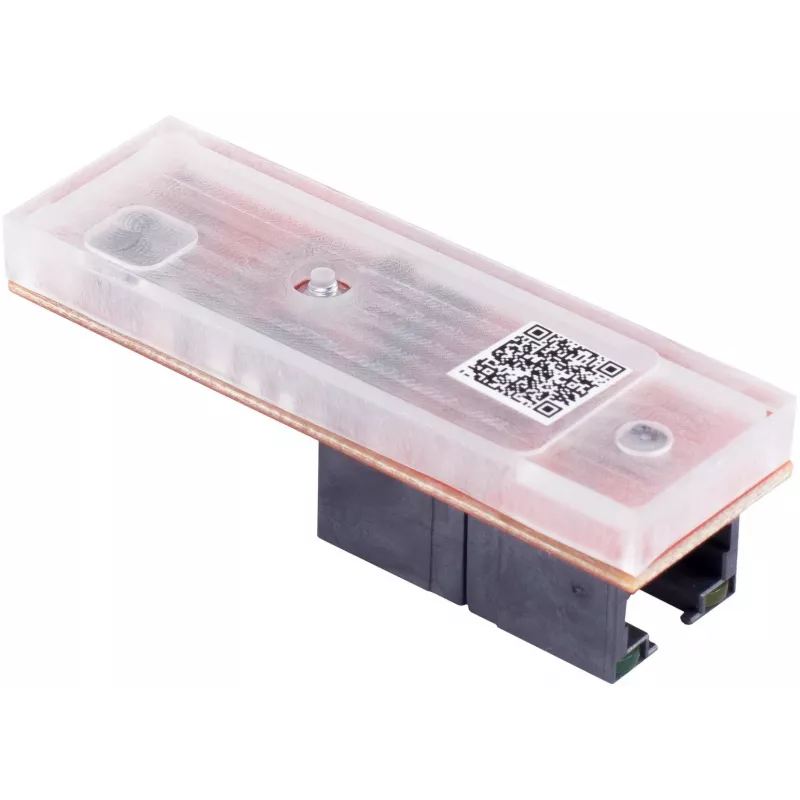

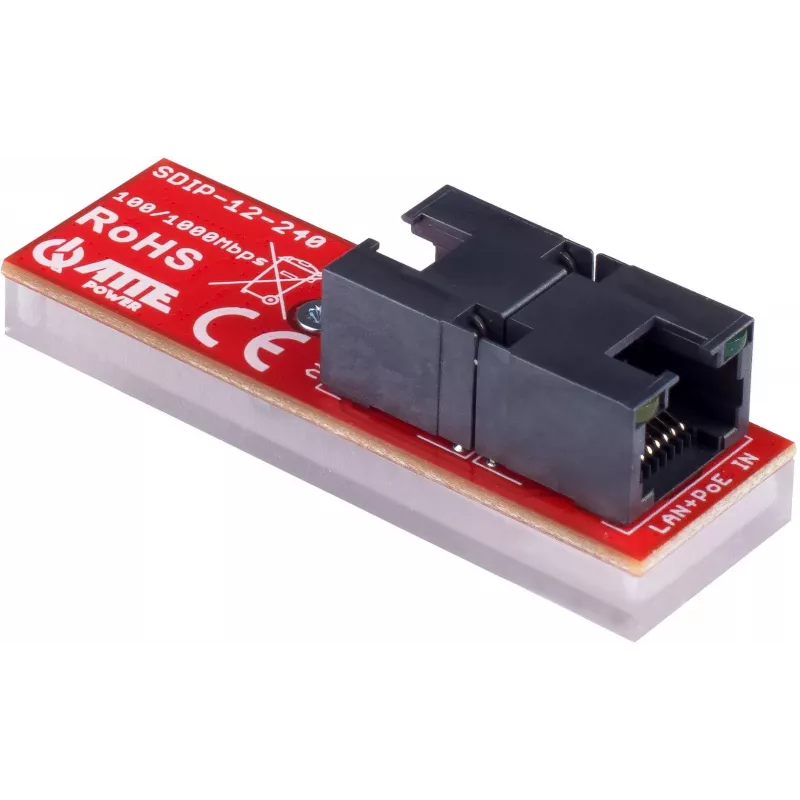

ATTE SDIP-12-240 PoE+ Adapter 30W DIN Rail Gigabit

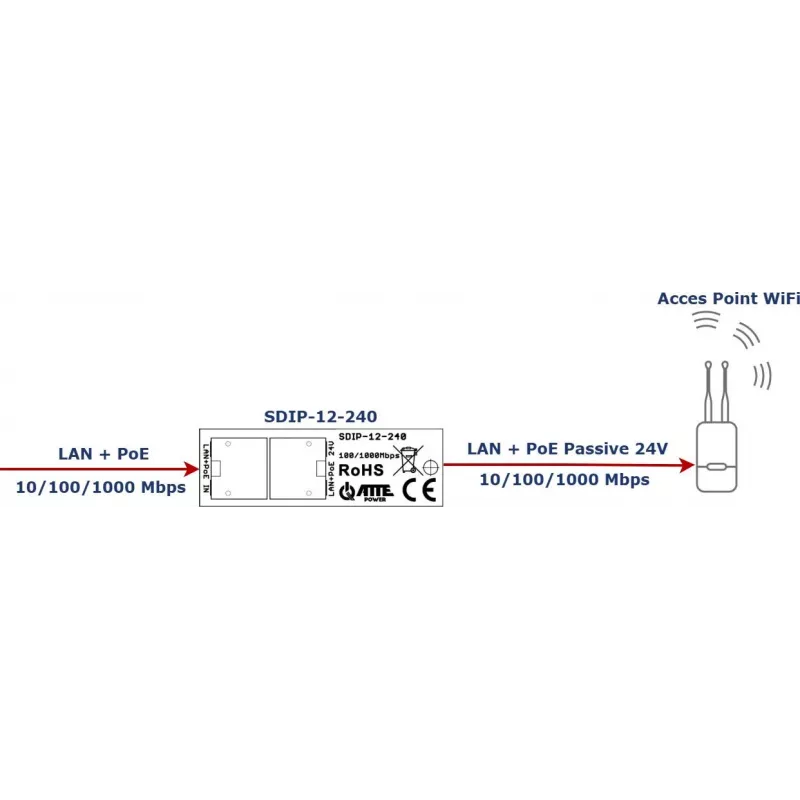

The ATTE SDIP-12-240 is a high-performance Power over Ethernet (PoE) adapter designed to deliver reliable power and data connectivity for PoE-enabled devices. Compliant with IEEE 802.3at (PoE+) standard, this adapter provides up to 30W of power over a single Gigabit Ethernet connection, making it ideal for powering IP cameras, wireless access points, VoIP phones, and other network devices. Its compact DIN rail mount design ensures easy installation in industrial control cabinets, server rooms, or network racks.

Advantages

With a wide input voltage range of 10-58V DC and robust protection features including short-circuit, overload, and overvoltage protection, the SDIP-12-240 guarantees stable and safe operation in demanding environments. The aluminum housing and extended operating temperature range (-40°C to +75°C) make it suitable for outdoor or industrial applications. LED indicators for power and PoE status provide quick visual diagnostics, simplifying maintenance and troubleshooting.

Suitable for

• Powering IP cameras, wireless access points, and VoIP phones
• Industrial automation and control systems
• Network installations requiring DIN rail mounting
• Remote or harsh environments with extreme temperatures

Key specifications

• PoE Standard: IEEE 802.3at (PoE+)
• Ethernet Speed: Gigabit Ethernet (10/100/1000 Mbps)
• Number of PoE Ports: 1
• Data Input Ports: 1x RJ45 (Data In)
• PoE Output Ports: 1x RJ45 (PoE Out)
• Input Voltage Range: 10-58V DC
• Output Voltage (PoE): 48V DC
• Max. PoE Output Power: 30W
• Mounting Type: DIN Rail
• Operating Temperature: -40°C to +75°C
• Housing Material: Aluminum
• Protection Features: Short-circuit, Overload, Overvoltage
• LED Indicators: Power, PoE Status
• PoE Power Pinout: All 4 pairs (Mode A & B)
• Power Connector: 2-pin Terminal Block
• Compliance: CE, RoHS

Recommendations

For optimal performance, use with a compatible DC power supply (10-58V) and ensure proper grounding. The adapter supports both Mode A and Mode B PoE pinouts, offering flexibility for various network devices. Ideal for upgrading existing network infrastructure to support PoE+ without replacing switches.
