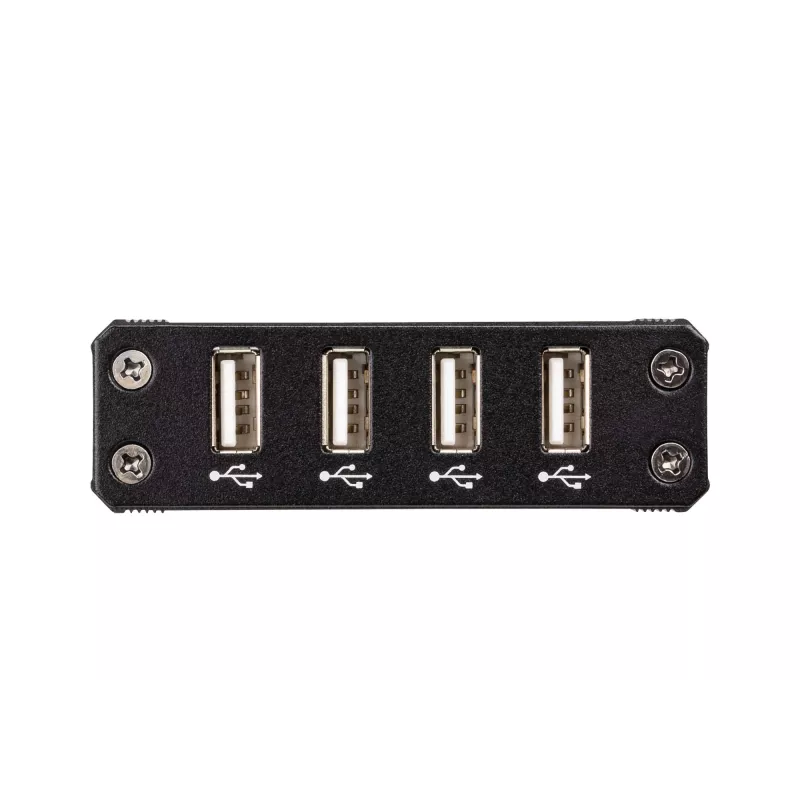

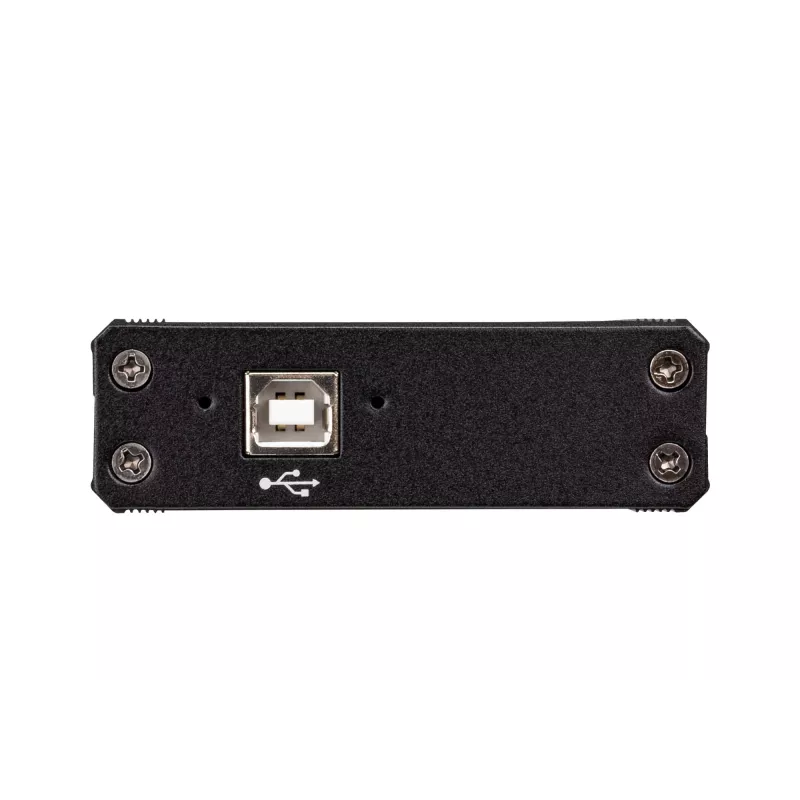

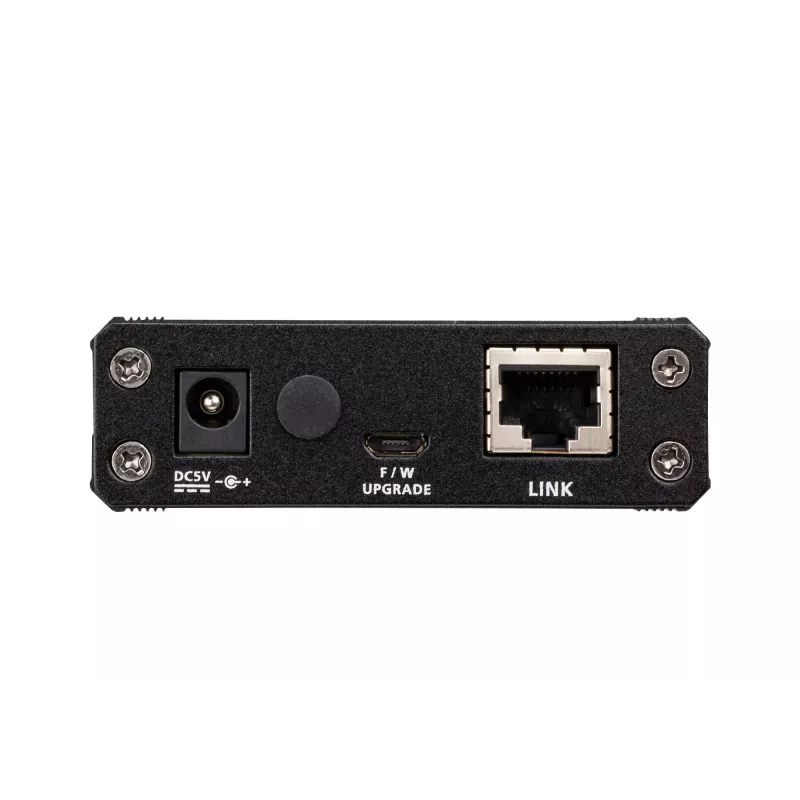

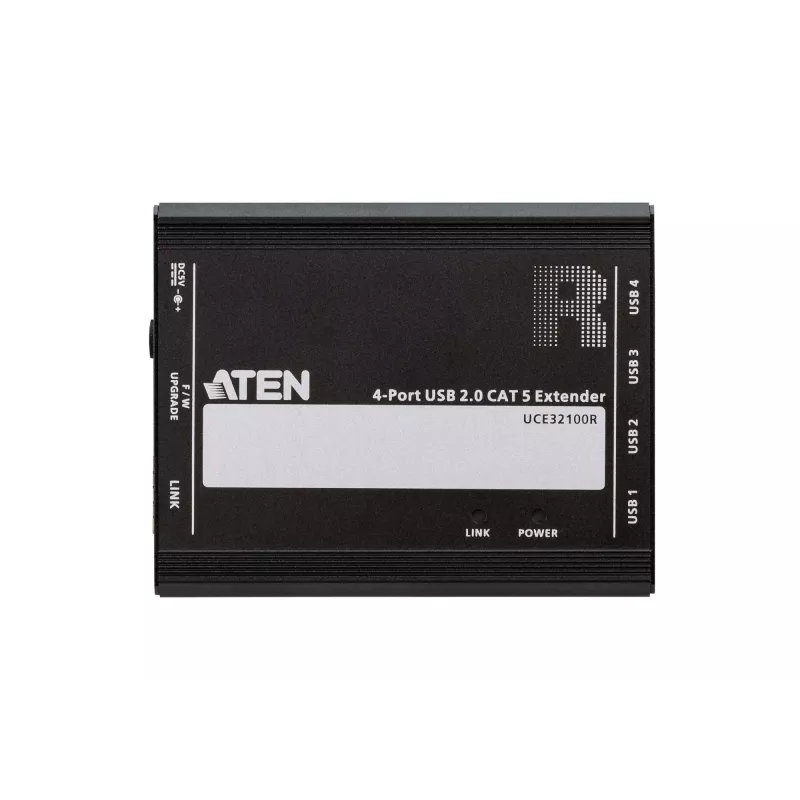

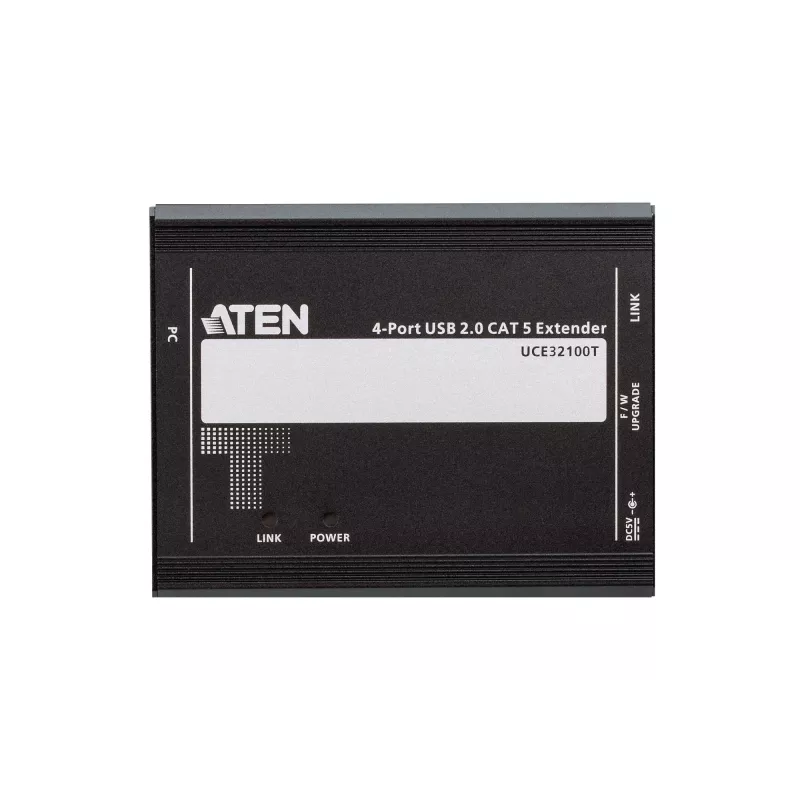

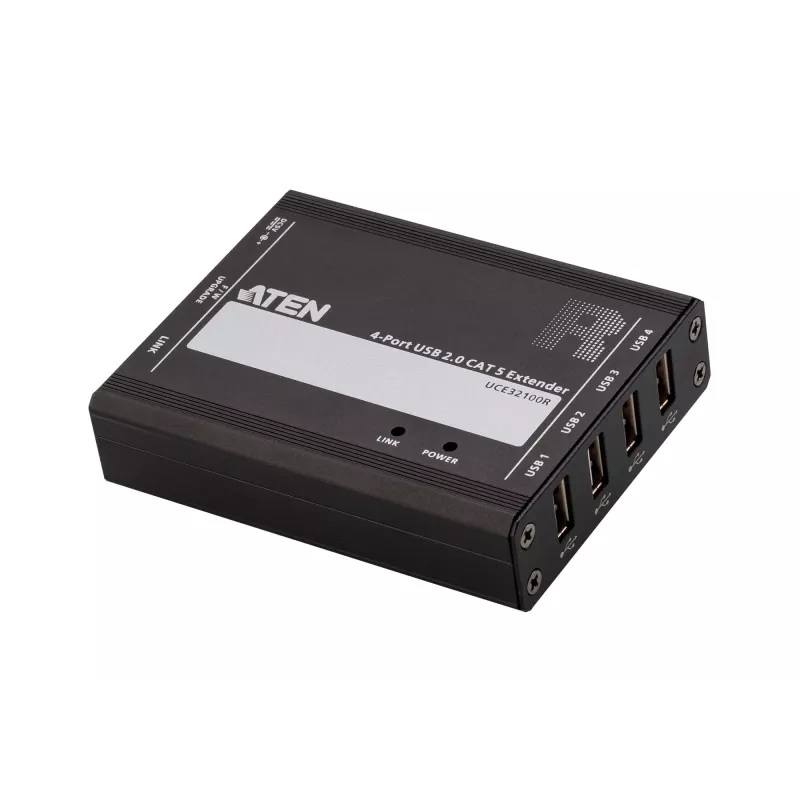

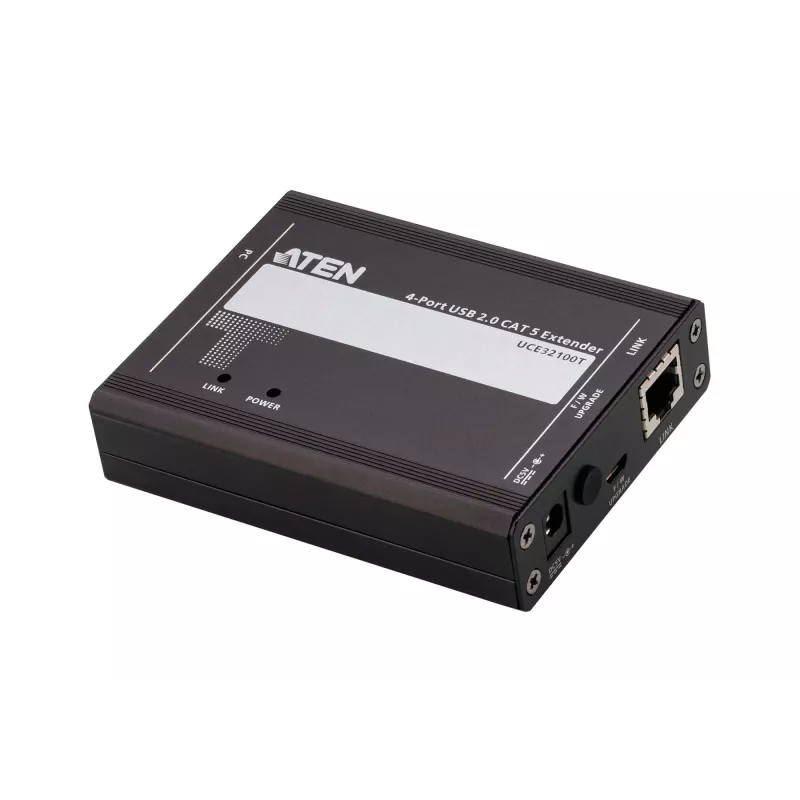

ATEN 4-Port USB 2.0 CAT 5 επεκτατής (έως 100 m)

The ATEN UCE32100-AT-G is a 4-port USB 2.0 CAT 5 Extender consisting of a transmitter and a receiver. It extends USB 2.0 connections up to 100 meters over a Cat 5 Ethernet cable and supports a wide range of USB devices including flash drives, webcams, scanners, printers and POS equipment. The receiver includes a power supply to ensure sufficient power for connected USB devices. The units feature a durable metal housing, compact size and options for wall or DIN-rail mounting for flexible installation.

Advantages

This USB 2.0 CAT 5 extender preserves full USB 2.0 data rates while enabling long-distance connectivity up to 100 m. The included receiver power adapter supplies reliable power to attached peripherals, and the plug-and-play design requires no additional drivers and is compatible with major operating systems. Robust metal enclosures and included mounting accessories make the device suitable for industrial and space-constrained environments.

Suitable for

• Extending keyboards, mice and local USB hubs to a remote workstation
• Connecting USB peripherals such as webcams, scanners or printers located up to 100 m away
• Point-of-sale systems where USB devices must be placed near the customer while the host remains remote
• Industrial or control-room installations requiring durable, mountable extenders

Key specifications

• Model: ATEN UCE32100-AT-G
• USB standard: USB 2.0, 4 downstream ports
• Maximum extension distance: up to 100 meters over Cat 5 cable
• Included units: 1x transmitter (UCE32100T), 1x receiver (UCE32100R)
• Included accessories: USB A-to-B cable, power adapter, power cord, mounting kits, DIN rails, DC jack lock kits, rubber feet, user manual
• Product colour: Black; Weight: 0.9 kg (unit)

How to use

Connect the transmitter unit to the host computer using the supplied USB Type-A to Type-B cable. Run a Cat 5 Ethernet cable between the transmitter and the receiver, then connect USB devices to the receiver’s downstream ports. Attach the receiver’s power adapter and secure any required mounting hardware. The devices are recognized by the host automatically; no driver installation is required for standard operating systems.

Recommendations

For best results use high-quality Cat 5 or better Ethernet cables and avoid running the cable alongside high-voltage lines. If multiple high-power USB devices are connected, ensure the receiver’s power adapter is properly rated for the combined load.
