ATEN 1,8 m USB DisplayPort Triple-Display κιτ καλωδίου KVM

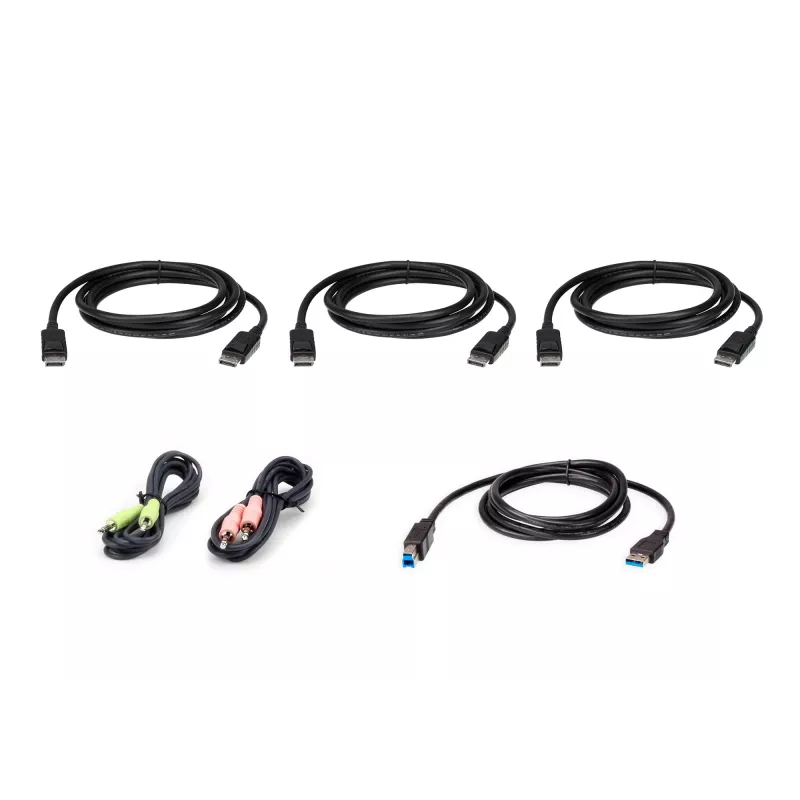

The ATEN 1.8M USB DisplayPort Triple Display KVM Cable Kit (MPN 2L-7D02UDPX6, EAN 4719264649431) provides a single-cable solution for linking DisplayPort triple-display computers or servers to an ATEN DisplayPort KVM switch. The kit carries video, USB keyboard and mouse signals, and stereo audio (speaker and microphone) over a 1.8 m black cable, enabling consolidated connections between your workstation and multiple-display systems.

Advantages

This cable kit supports simultaneous transmission of DisplayPort video for up to three displays, USB keyboard and mouse connectivity, and audio in/out through one integrated assembly. With a 1.8 m length and 0.43 kg weight, it offers a balance of reach and manageability while maintaining compatibility with ATEN DisplayPort KVM switches and DisplayPort triple-display hosts.

Suitable for

• Connecting triple-display DisplayPort workstations or servers to an ATEN DisplayPort KVM switch
• Shared keyboard and mouse setups in control rooms, trading desks, or multi-user workstations
• Environments that require consolidated video, USB, and audio cabling for multiple monitors

Key specifications

• Manufacturer: ATEN
• Model / MPN: 2L-7D02UDPX6
• EAN: 4719264649431
• Cable length: 1.8 m
• Keyboard port type: USB
• Mouse port type: USB
• Audio: Speaker and microphone support
• Colour: Black
• Weight: 0.43 kg

How to use

Plug the DisplayPort video connectors into the triple-display outputs of the host computer or server and connect the other end to the corresponding DisplayPort ports on the ATEN KVM switch. Attach the USB keyboard and mouse connectors into the KVM switch USB console ports. Connect the audio plugs to the microphone and speaker jacks if audio is required. After connections are made, switch the KVM to the desired channel to control the target system and share peripherals and displays.

Recommendations

Use the 1.8 m cable length to position devices within comfortable reach of the KVM switch without creating excessive cable tension. For reliable operation, ensure connectors are fully seated and avoid sharp bends near the connector heads. Confirm compatibility with your ATEN DisplayPort KVM switch model and the host’s triple-display DisplayPort outputs before installation.
