Αρθρωτή μονάδα Keystone Digitus CAT 6A θωρακισμένη χωρίς εργαλεία 8 τεμ.

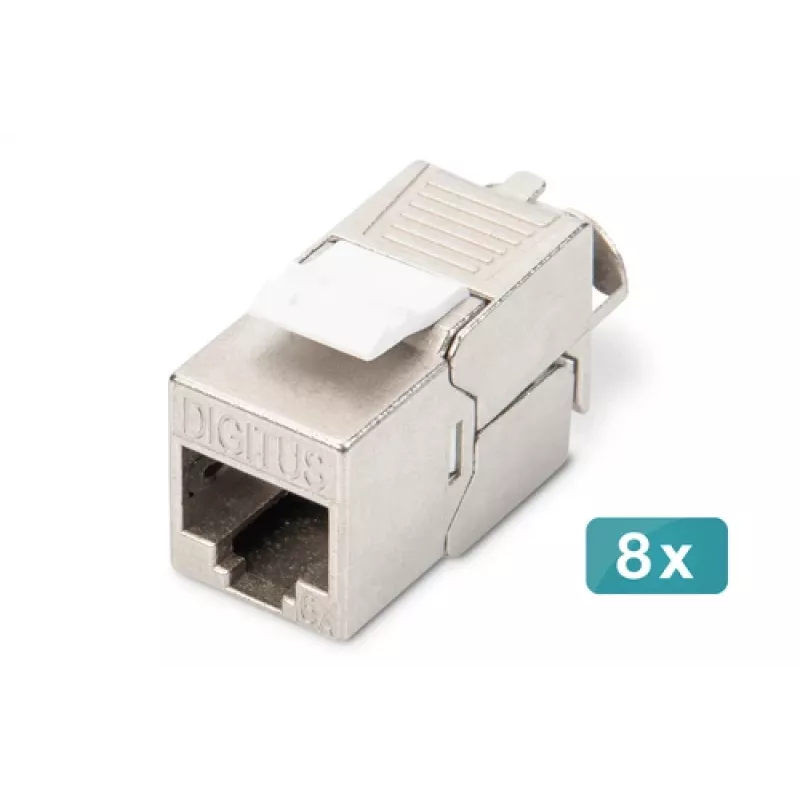

The DIGITUS CAT 6A shielded keystone module set (8 pcs, MPN DN-93615-8) provides tool-free, high-performance RJ45 terminations for structured cabling. Designed for field installation and distribution panel or junction box mounting, the compact modules support Cat. 6A performance with an LSA insulation-displacement connector, full 360° shield contact and a dust protection cap for the RJ45 jack. The modules are GHMT certified and support PoE standards IEEE 802.3af/at/bt.

Advantages

Tool-free assembly enables quick and safe wire terminations without special tools. The 360° shield contact reduces electromagnetic interference, while the LSA insulation-displacement connector ensures reliable Cat. 6A connections. Compact design allows series installation in a 19" 1U panel and fits in compatible modular junction boxes. The RJ45 dust protection cap preserves connector integrity during installation and storage.

Suitable for

• Structured cabling in data closets and distribution panels
• Field installation and on-site terminations without tools
• Mounting in 483 mm (19") 1U panels and modular junction boxes
• PoE-powered devices including IEEE 802.3af/at/bt equipment

Key specifications

• Brand: DIGITUS
• MPN: DN-93615-8
• EAN: 4016032490579
• Type: Shielded Cat. 6A keystone module, tool-free
• Pack size: 8 pieces
• Connector: RJ45 with dust protection cap
• Termination: LSA insulation-displacement (color-coded for EIA/TIA 568 A & B)
• Shielding: 360° shield contact
• Certifications: GHMT certified
• PoE support: IEEE 802.3af/at/bt (PoE, PoE+ & 4PPoE)

How to use

Insert the prepared cable conductors into the LSA contacts following the color-coded EIA/TIA 568 A or B scheme and press into the insulation-displacement connector to terminate. Snap the keystone module into the compatible 19" 1U panel cutout or into a modular junction box. Connect the RJ45 plug to the module; use the dust protection cap when the jack is not in use. No special tools are required for assembly.

Recommendations

For reliable Cat. 6A performance, use properly prepared cables rated for 6A, follow EIA/TIA termination standards, and verify connections with appropriate network testing equipment after installation.
