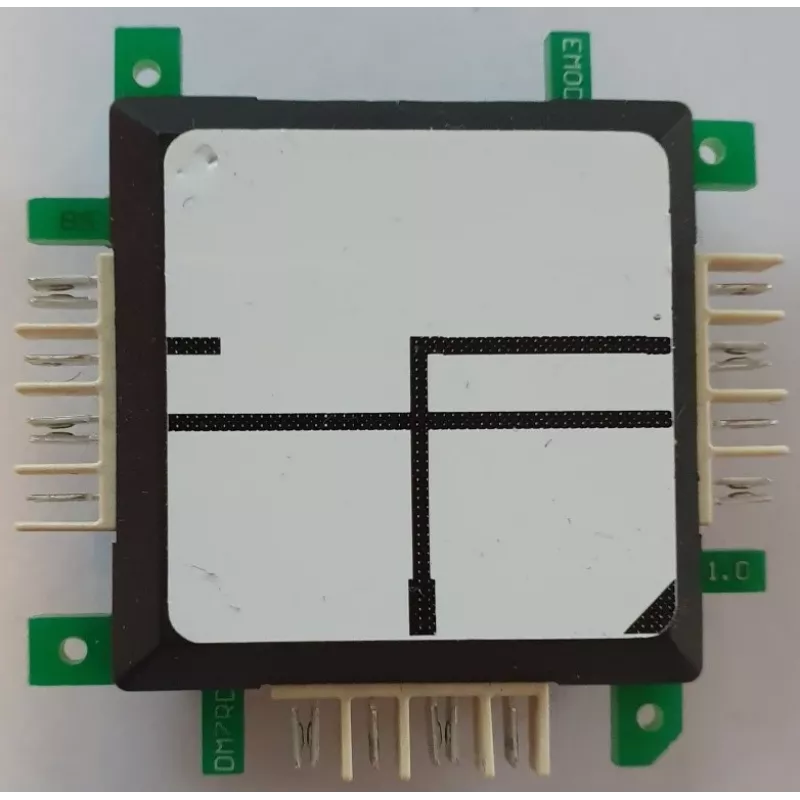

ALLNET Brick'R'knowledge ALLBRICK-0716 καλώδιο ως γωνία και ευθεία για μεμονωμένα pins

The ALLNET ALLBRICK-0716 Jumper Wire Set is a comprehensive 140-piece kit designed for electronic prototyping on breadboards, Arduino, Raspberry Pi, and microcontrollers. This set includes male-to-male, male-to-female, and female-to-female jumper wires in both straight and angled pin shapes, providing maximum flexibility for your projects. Each wire is made from 22 AWG tinned copper with PVC insulation, ensuring reliable conductivity and durability. The wires are color-coded for easy identification and come in four lengths: 10 cm, 15 cm, 20 cm, and 25 cm (35 pieces each). Packaged in a resealable plastic box for convenient storage.

Advantages

This jumper wire set offers a versatile combination of connector types and pin shapes, allowing you to create secure connections in tight spaces or standard layouts. The assorted lengths and colors simplify circuit organization and troubleshooting. The wires are flexible, reusable, and rated for up to 50V DC and 1A, making them suitable for a wide range of low-voltage applications.

Suitable for

• Breadboard prototyping and circuit testing
• Arduino, Raspberry Pi, and microcontroller projects
• Educational electronics labs and hobbyist experiments
• Connecting sensors, modules, and components on 2.54 mm pitch headers

Key specifications

• Product Type: Jumper Wire Set
• Number of Wires: 140 pieces
• Connector Types: Male-to-Male, Male-to-Female, Female-to-Female
• Pin Shape: Straight & Angled
• Wire Gauge: 22 AWG
• Conductor Material: Tinned Copper
• Insulation Material: PVC
• Pin Spacing: 2.54 mm (0.1 inch)
• Wire Lengths: 10 cm, 15 cm, 20 cm, 25 cm (35 each)
• Max Voltage: 50V DC
• Max Current: 1A
• Operating Temperature: -20°C to 80°C
• Packaging: Resealable Plastic Box

Recommendations

For best results, use these jumper wires with standard breadboards and 2.54 mm header pins. The angled connectors are ideal for tight spaces where straight connectors may not fit. Store in the resealable box to keep wires organized and tangle-free.
