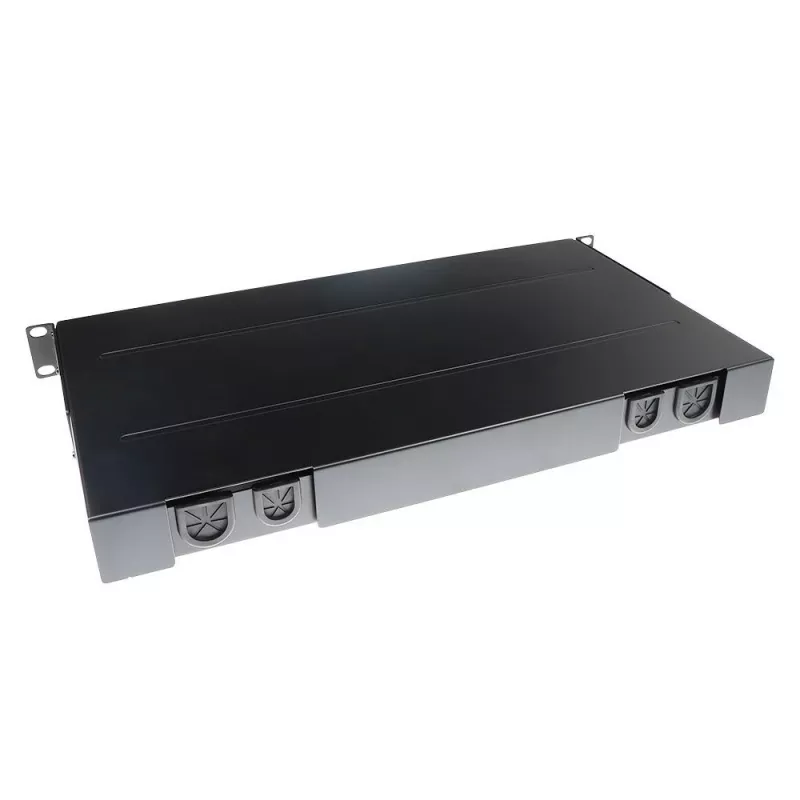

ACT Fiberpanel 24 x Duplex LC Singlemode OS2

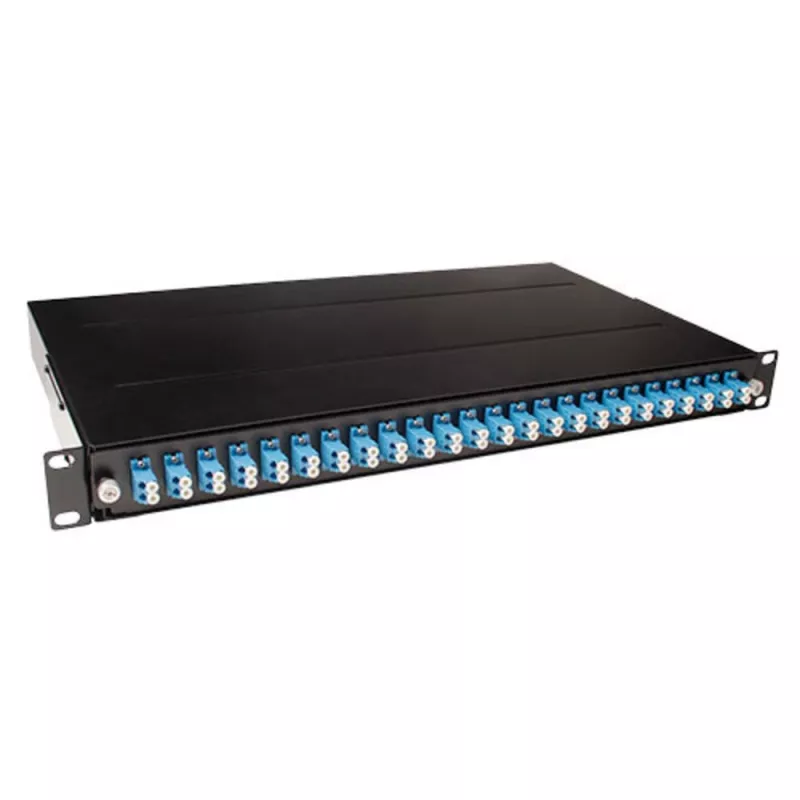

The ACT Fiber panel ACT 24 x duplex LC singlemode OS2 provides a compact, rack-mountable solution for organizing and terminating singlemode fiber connections. Designed for standard 19-inch racks, the panel accommodates 24 duplex LC ports using OS2 singlemode fiber interfaces, enabling orderly cable routing and secure connector access. Its black finish and 482 mm width with 255 mm height fit common server cabinets and telecommunication enclosures while supporting high-performance optical links.

Advantages

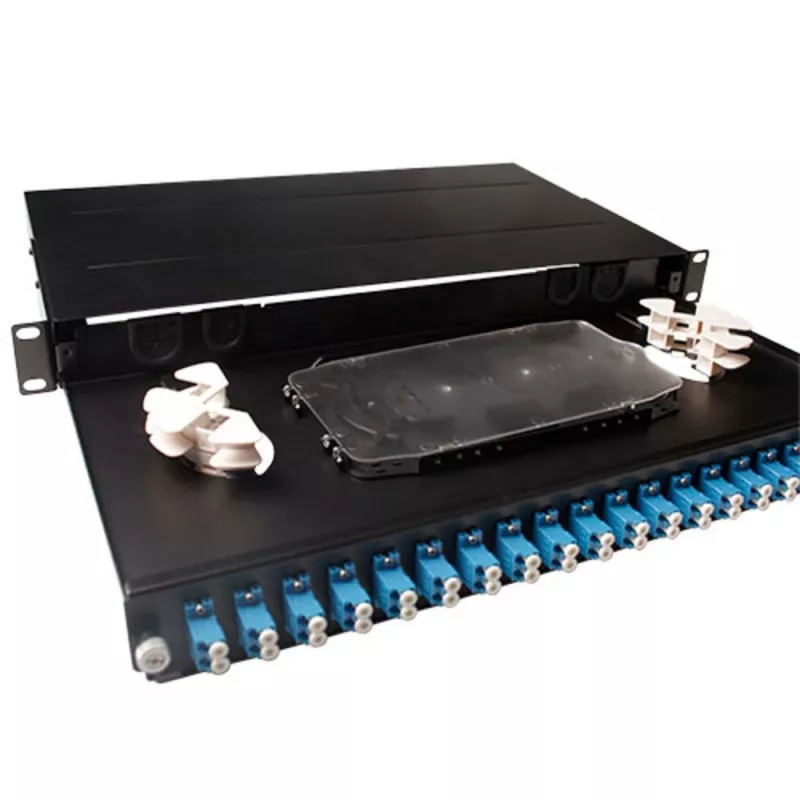

The panel offers a dense port layout that reduces rack space consumption while maintaining easy access to individual LC duplex connectors. By using OS2 singlemode interfaces it supports long-distance and low-loss optical transmission suitable for backbone and distribution links. The sturdy front housing protects adapters and connectors from accidental damage and helps keep patching neat and manageable.

Suitable for

Key specifications

How to use

Install the panel into a compatible 19-inch rack at the desired U position using appropriate mounting hardware. Route incoming and outgoing singlemode fiber cables to the rear or side entry points as available, taking care to maintain minimum bend radii for singlemode fiber. Terminate or insert LC duplex connectors into the front-facing adapter ports, and label each port if required for inventory and troubleshooting. Use cable management accessories and patch cords compatible with LC duplex to complete the connections.

Recommendations

Handle connectors with protective caps until connection to prevent contamination; avoid sharp bends and secure fibers with strain relief. Use compatible singlemode OS2 patch cords and verify optical links with an appropriate test instrument after installation.
