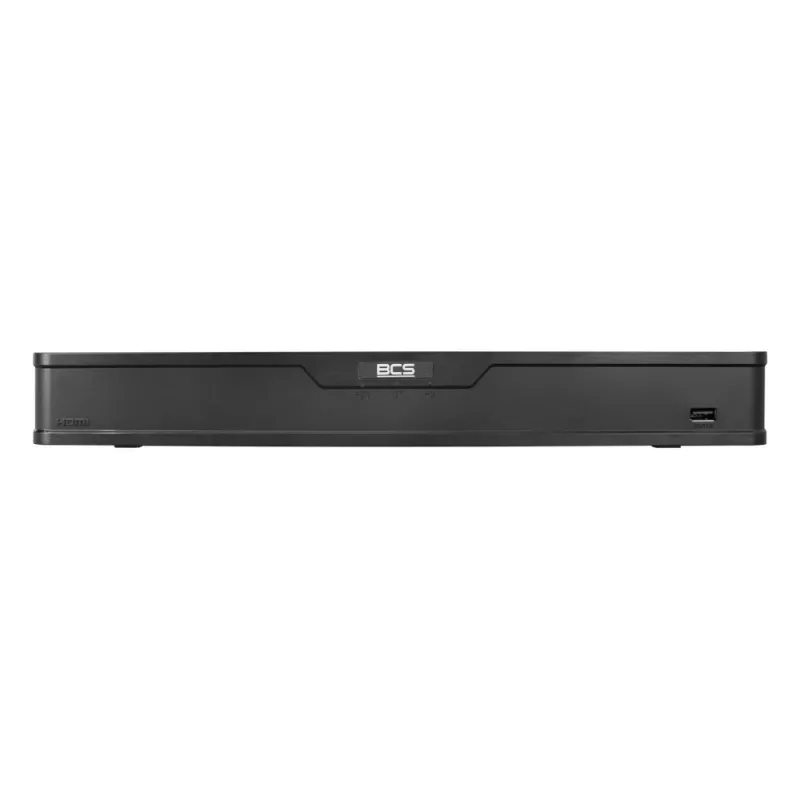

8-Kanal-IP-Rekorder BCS-P-NVR0802-A-4KE-8P(3)

This 8-channel network video recorder from BCS delivers robust 4K surveillance recording with integrated Power over Ethernet, simplifying installation for small to medium security systems. Its eight PoE ports provide both data and power to IP cameras over a single cable, while support for H.265+ compression maximizes storage efficiency without sacrificing image quality.

Advantages

The BCS-P-NVR0802-A-4KE-8P(3) combines recording, power management, and remote access in one compact unit. With a 72W PoE budget, it can power multiple cameras directly, eliminating separate power supplies. Dual SATA bays allow up to 20TB of storage, ensuring extended retention for high-resolution footage. The HDMI output supports 4K display for crisp live view and playback.

Suitable for

• Small offices and retail stores needing up to 8 IP cameras
• Warehouses and logistics hubs requiring high-resolution monitoring
• Residential complexes with multiple entry points
• Installers seeking a streamlined PoE NVR solution

Key specifications

• 8 IP channels, each up to 8MP (4K) resolution
• 8 PoE ports (IEEE 802.3af/at) with 72W total budget
• H.265+/H.265/H.264+/H.264 compression
• 2 SATA ports, up to 10TB per HDD (20TB total)
• HDMI (4K) and VGA (1080p) video outputs
• 4 alarm inputs and 2 alarm outputs
• 1 audio input and 1 audio output (RCA)
• Gigabit Ethernet for network connectivity
• ONVIF 2.4 compliance and P2P for remote access
• Operating temperature: -10°C to +55°C

Recommendations

Pair this NVR with BCS 4K IP cameras to fully leverage its recording and decoding capabilities. For continuous recording, install surveillance-grade hard drives and enable H.265+ to optimize storage usage. Use the BCS Point app for convenient remote monitoring on iOS or Android devices.
