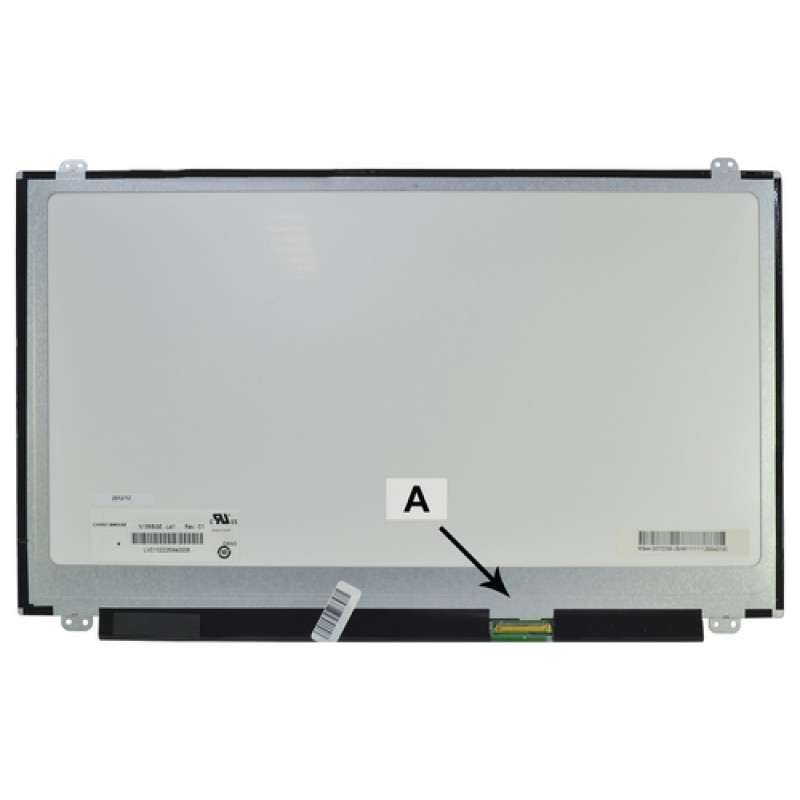

2-power 2P-KL.15605.004 - Οθόνη - 39,6 cm (15.6) - WXGA

Experience crisp visuals with a 15.6-inch WXGA display that delivers 1366 x 768 resolution and a bright 220-nit LED backlight. This panel is built for laptops requiring a 40-pin LVDS connection, offering a straightforward upgrade or replacement path.

Overview

The 2-POWER 2P-KL.15605.004 is a 15.6-inch TFT active matrix display with a 16:9 aspect ratio and a glossy finish. It features a TN panel with a 60 Hz refresh rate and an 8 ms response time, making it suitable for everyday computing tasks. The LED backlight ensures energy efficiency while maintaining consistent brightness.

What stands out

• WXGA resolution (1366 x 768) for sharp text and images
• LED backlight with 220 cd/m² brightness for clear viewing

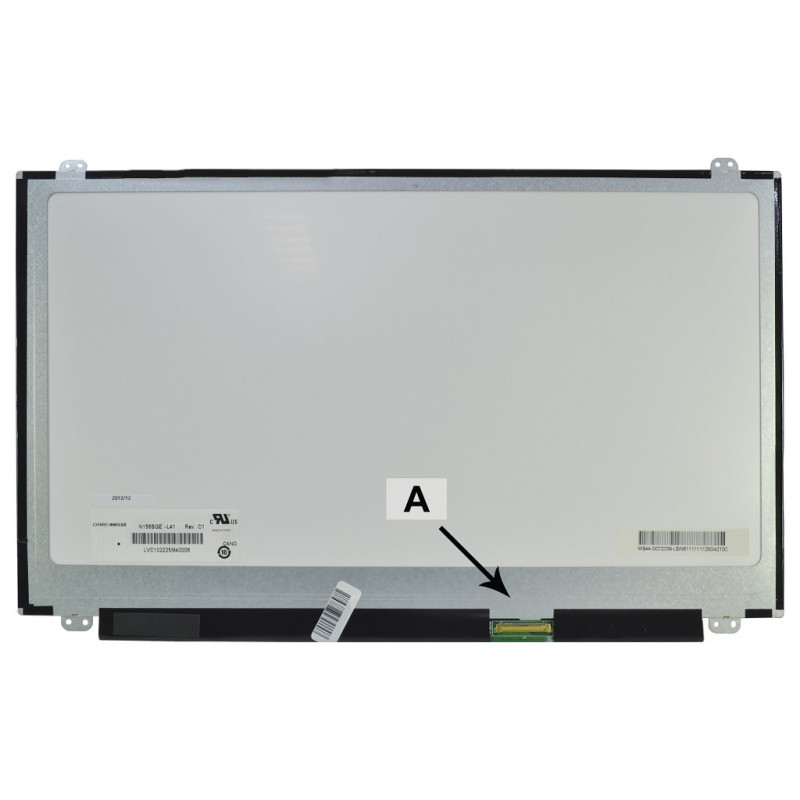

• 40-pin LVDS connector positioned bottom-left for easy integration
• Glossy surface enhances colour vibrancy
• Side brackets included for secure mounting

Technical details

• Display size: 15.6 inches (39.6 cm)
• Resolution: 1366 x 768 pixels (WXGA)
• Aspect ratio: 16:9
• Panel type: TN (Twisted Nematic)
• Backlight: LED
• Surface finish: Glossy
• Connector: 40-pin LVDS
• Connector position: Bottom left (viewed from back)
• Refresh rate: 60 Hz
• Brightness: 220 cd/m²
• Colour support: 262,144 colours (6-bit)
• Response time: 8 ms (typical)
• Viewing angles: 45/45/20/40 (CR≥10)
• Power consumption: 4-6 W
• Mounting: Side brackets

Our verdict

A reliable replacement panel that combines standard WXGA clarity with LED efficiency, ideal for restoring laptops to full functionality.
