Aristo TopLine Mat Series Διαβήτης σχεδίασης Γκρι, 1 τεμ. (AR55816)

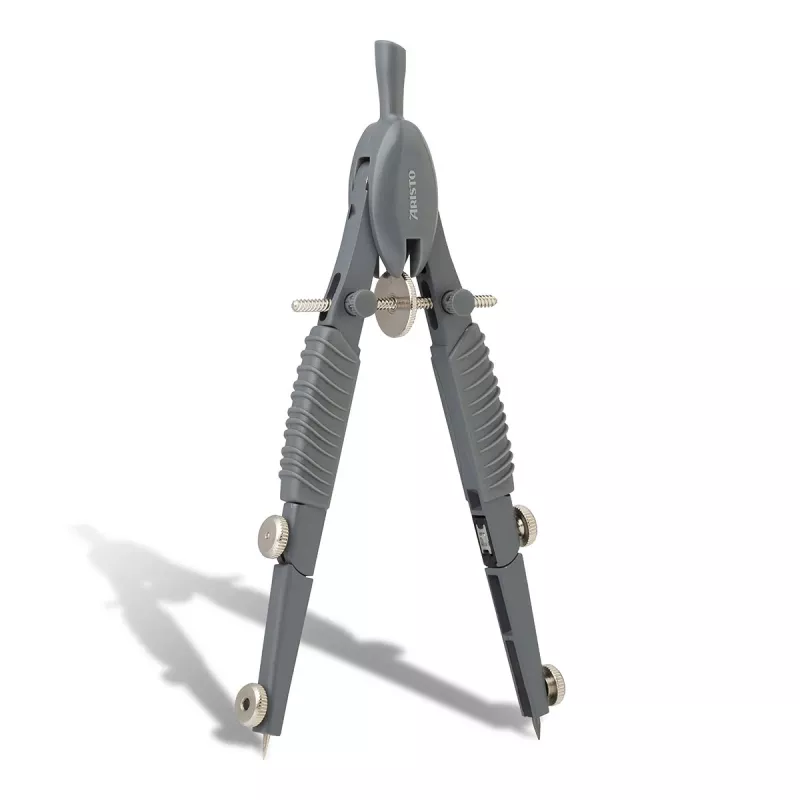

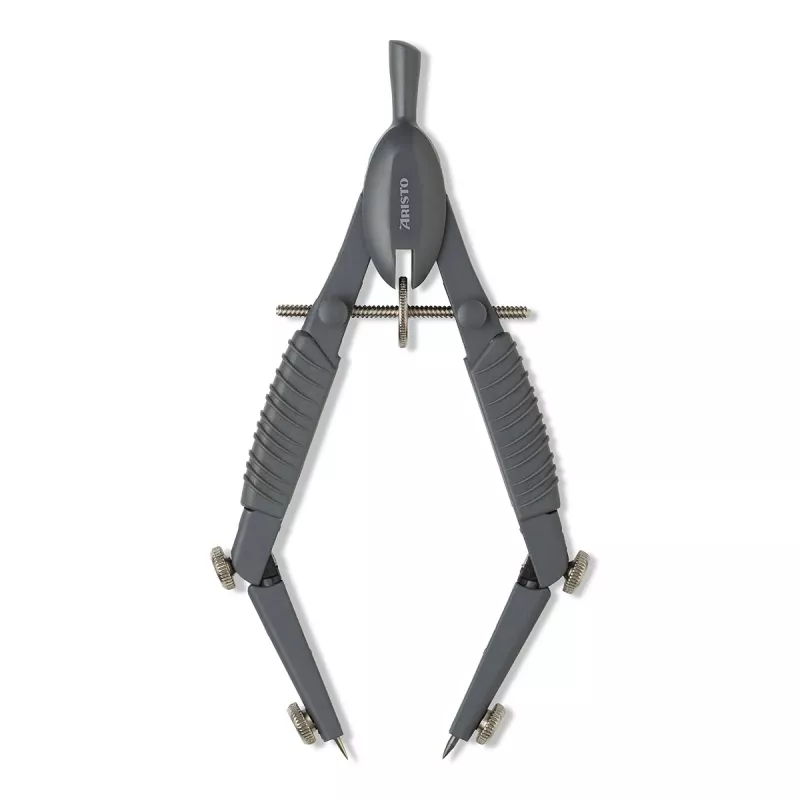

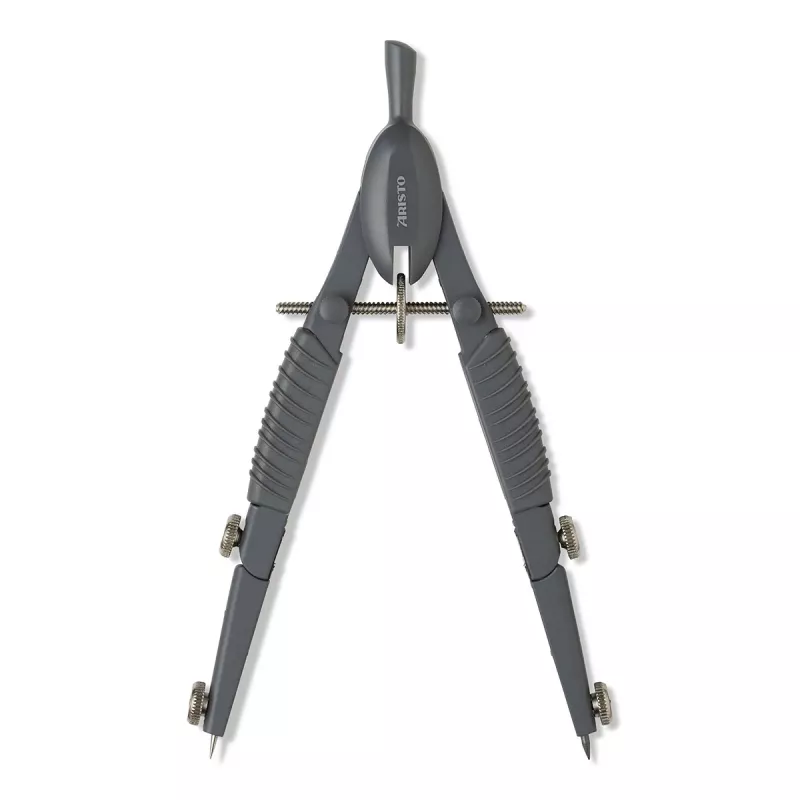

The Aristo TopLine Mat Series Drawing Compass in grey is a precision instrument designed for technical drawing, geometry, and school use. Crafted from robust zinc die-cast material, this compass offers durability and accuracy for all your drafting needs. With a maximum circle diameter of 360 mm and a length of 170 mm, it is ideal for a wide range of drawing tasks. The spindle drive with central wheel ensures smooth and precise adjustment, while the hinged legs (knee joints) provide flexibility and stability. The interchangeable lead and needle inserts allow for quick and easy replacement, making it a versatile tool for any workspace. This set includes spare leads and a spare needle, all packaged in a convenient blister pack.

Advantages

Precision engineering ensures accurate circles and arcs. The robust zinc die-cast construction guarantees long-lasting performance. The spindle drive mechanism allows for fine, controlled adjustments. Hinged legs provide stability and ease of use. Interchangeable inserts extend the life of the compass and reduce waste.

Suitable for

• Technical drawing and drafting
• Geometry and mathematics
• School and educational projects
• Architectural and engineering sketches

Key specifications

• Product Type: Drawing Compass
• Series: TopLine Mat Series
• Material: Zinc Die-Cast
• Colour: Grey
• Max. Circle Diameter: 360 mm
• Compass Length: 170 mm
• Lead Diameter: 2 mm
• Adjustment Mechanism: Spindle Drive with Central Wheel
• Leg Design: Hinged Legs (Knee Joints)
• Lead Holder Type: Interchangeable Lead Insert
• Needle Holder Type: Interchangeable Needle Insert
• Construction: Robust, Precision
• Application: Technical Drawing, Geometry, School
• Included Accessories: Spare Leads, Spare Needle

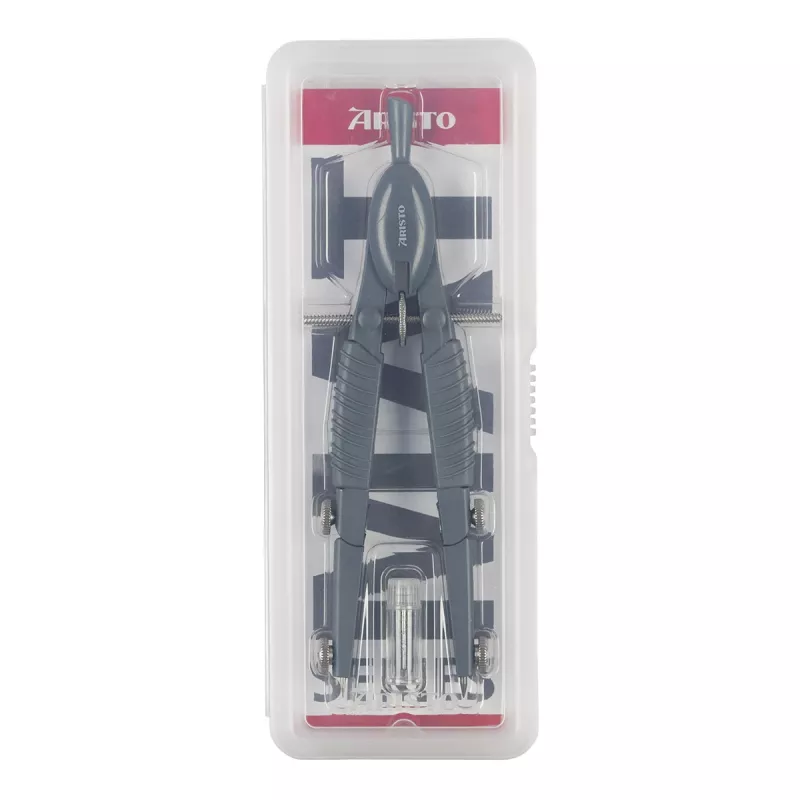

• Packaging: Blister Pack
• Unit Quantity: 1 Piece

Recommendations

For best results, use with a high-quality drawing board and appropriate paper. Store in a dry place to maintain precision. Ideal for students, architects, and designers who demand accuracy.
