ZVK Easylan LWL Spleißkassette Basic SB0012481HE 12x LC-Duplex Standard OM3 Slide-Out - Glasfaser-Patchpanel

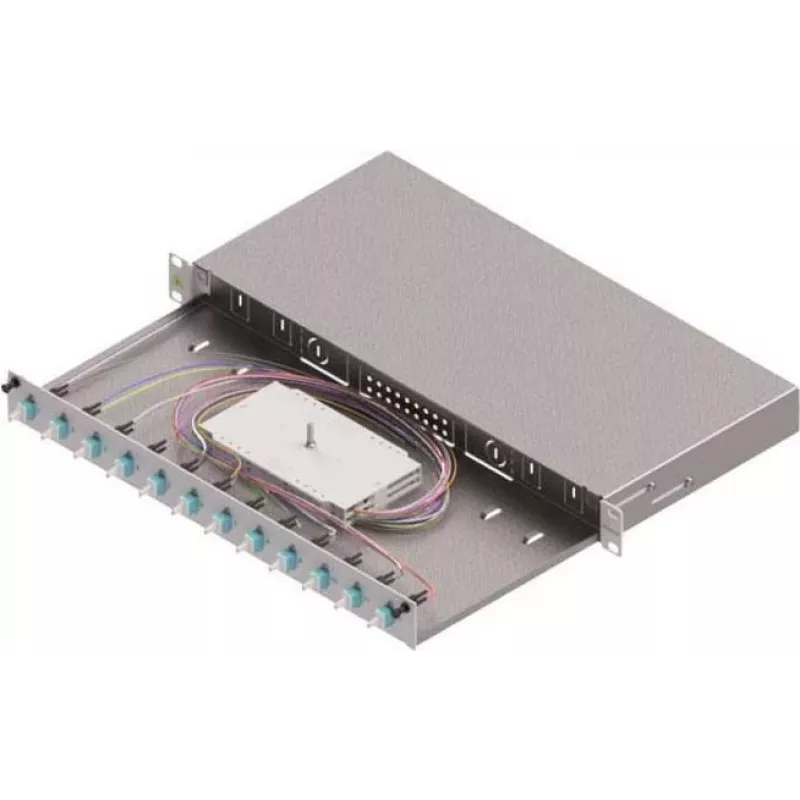

The ZVK Easylan LWL Splice Enclosure Basic SB0012481HE is a high-quality fiber optic patch panel designed for efficient cable management in data centers, LAN, and telecommunications infrastructure. This 1U 19-inch rack-mountable enclosure features a slide-out tray for easy access and supports 12 LC-Duplex adapters (24 fibers) with OM3 multimode fiber, optimized for 10 Gigabit Ethernet.

Advantages

Space-saving 1U design with slide-out tray simplifies installation and maintenance. Integrated cable entry and strain relief ensure organized cabling. Ceramic LC-Duplex adapters provide reliable, low-loss connections for high-speed networks.

Suitable for

• Data center fiber patching and splicing
• Local Area Networks (LAN) requiring OM3 multimode
• Telecommunications infrastructure
• 10 Gigabit Ethernet applications

Key specifications

• Product Type: Fiber Optic Patch Panel / Splice Enclosure
• Connector Type: LC-Duplex
• Number of Ports: 12x LC-Duplex (24 fibers)
• Fiber Mode: Multimode OM3
• Rack Units: 1U
• Mounting: 19-inch Rack
• Material: Steel
• Slide-out Tray: Yes

Recommendations

Ideal for structured cabling in enterprise networks. Pair with OM3 patch cables for optimal performance.
