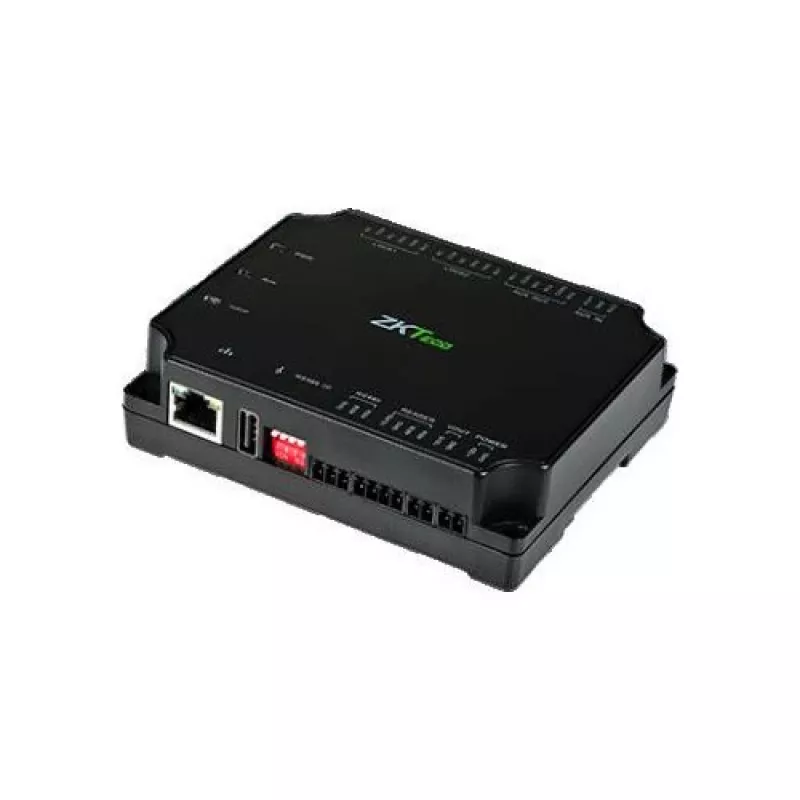

ZKTeco CON-C2-260 πίνακας ελέγχου πρόσβασης 2 θυρών με TCP/IP και RS-485

The ZKTeco CON-C2-260 is a high-performance 2-door access control panel designed for medium to large-scale security systems. It supports up to 4 Wiegand readers (2 in, 2 out) and offers a user capacity of 30,000 users with a 100,000 event buffer. With TCP/IP and RS-485 communication, it integrates seamlessly with ZKBioAccess IVS and ZKAccess 3.5 software.

Advantages

Reliable 32-bit microprocessor ensures fast processing. Real-time data backup prevents data loss. Advanced functions like anti-passback and multi-door interlock enhance security. Flexible power input range (DC 9.6V-14.4V) and low power consumption (<1A) make it suitable for various installations.

Suitable for

• Commercial buildings requiring multi-door access control
• Office complexes with high user capacity needs
• Industrial facilities needing robust security features
• Integration with existing Wiegand reader systems

Key specifications

• Doors Controlled: 2
• Readers Supported: 4 (2 In, 2 Out)
• User Capacity: 30,000
• Event Buffer: 100,000
• Communication: TCP/IP, RS-485
• Inputs: 6 (2 Exit Button, 2 Door Sensor, 2 Aux)
• Outputs: 4 (2 Relay Lock, 2 Aux Relay)
• Power: DC 9.6V-14.4V, <1A
• Operating Temperature: 0°C to 45°C
• Operating Humidity: 20% to 80%

Recommendations

For optimal performance, pair with ZKTeco readers and ZKBioAccess IVS software. Ensure proper power supply within specified range. Suitable for indoor use only.
