Zalman ZM-MH10 σύστημα ψύξης υπολογιστή εξάρτημα/παρελκόμενο ψύκτρα

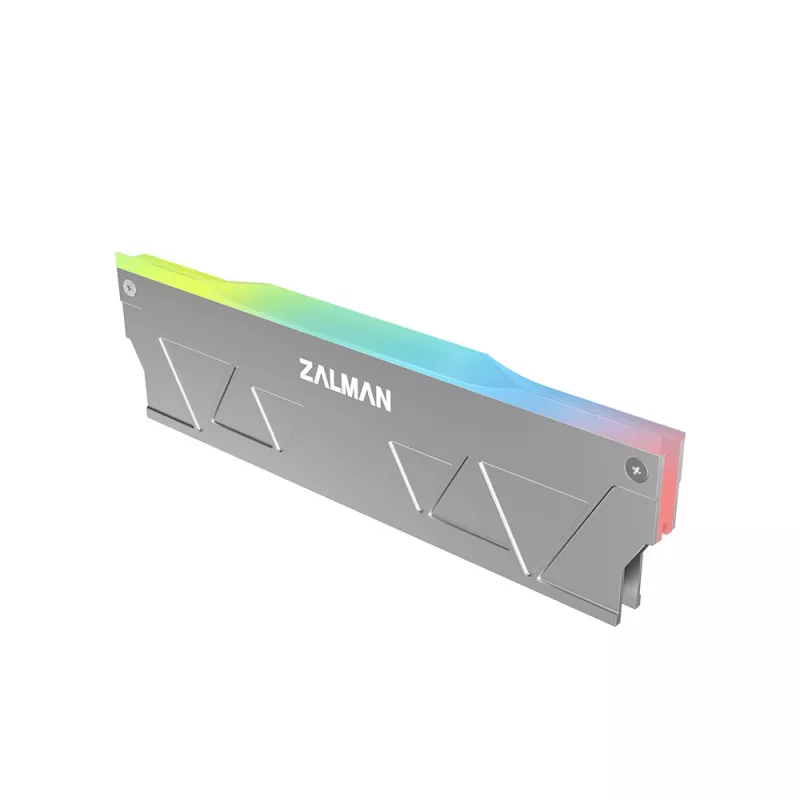

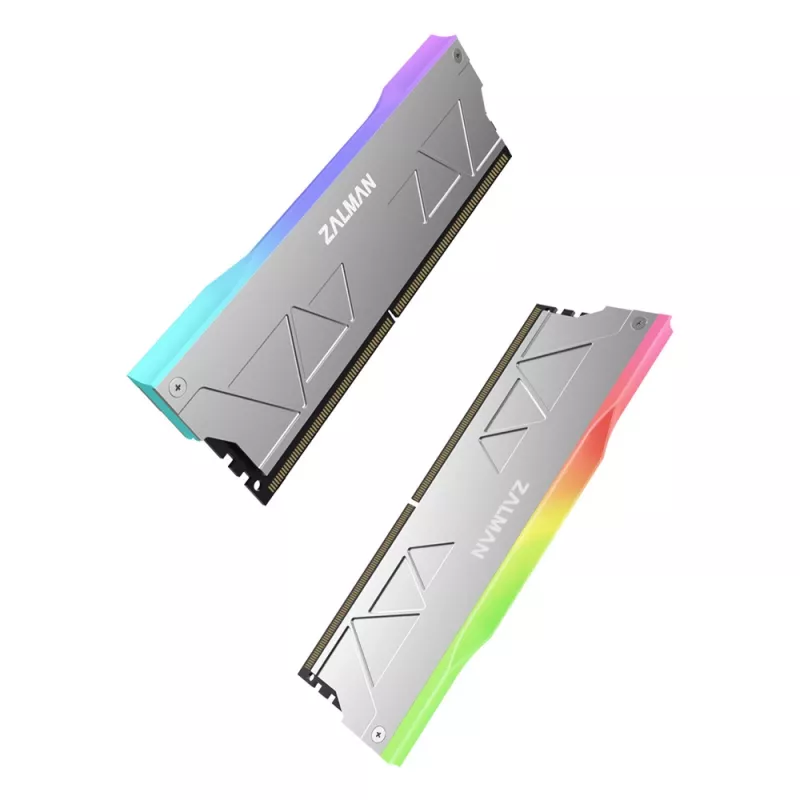

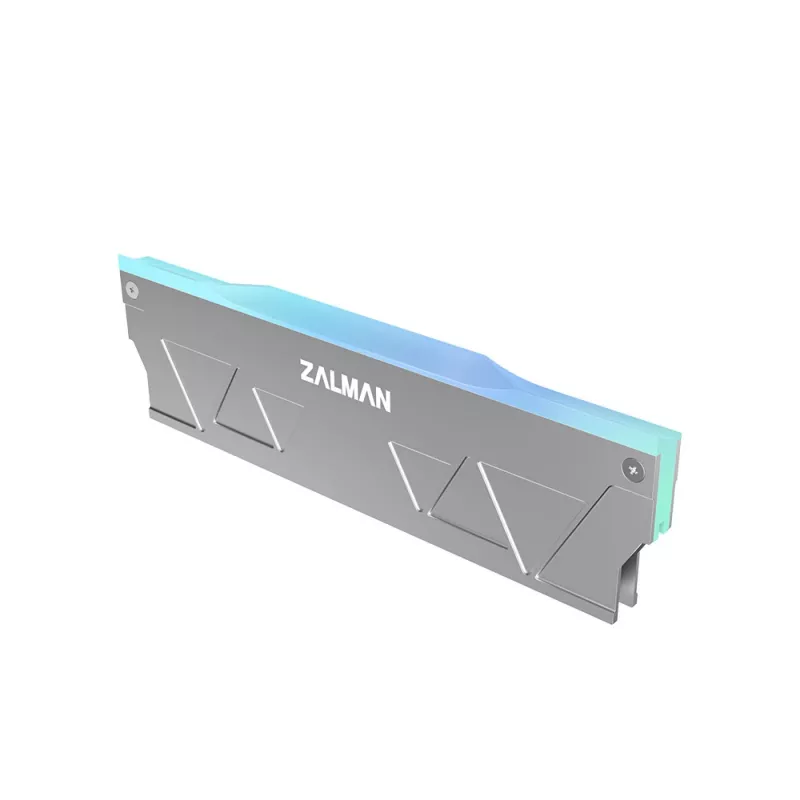

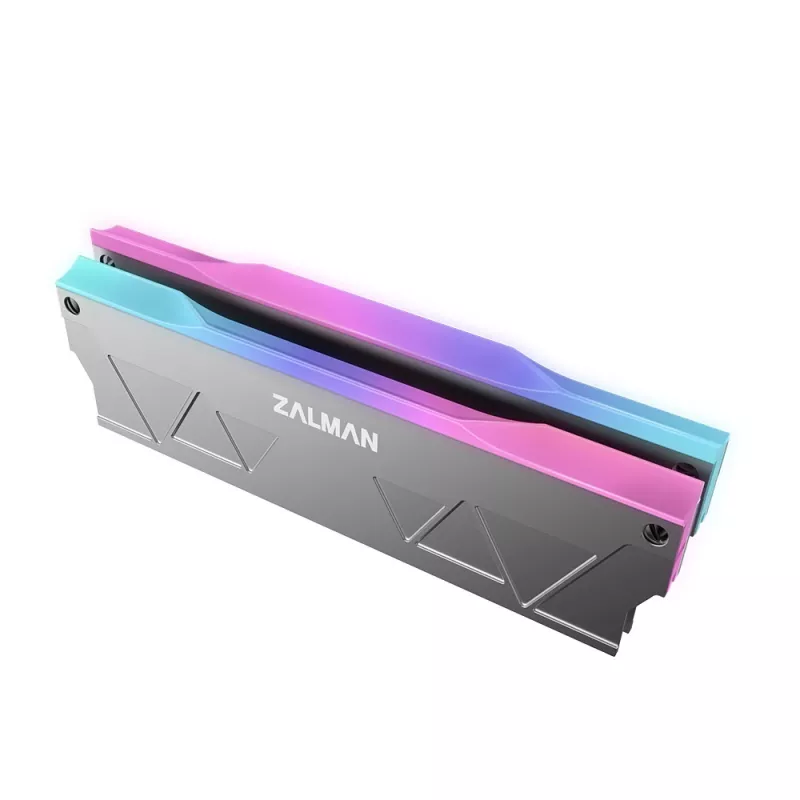

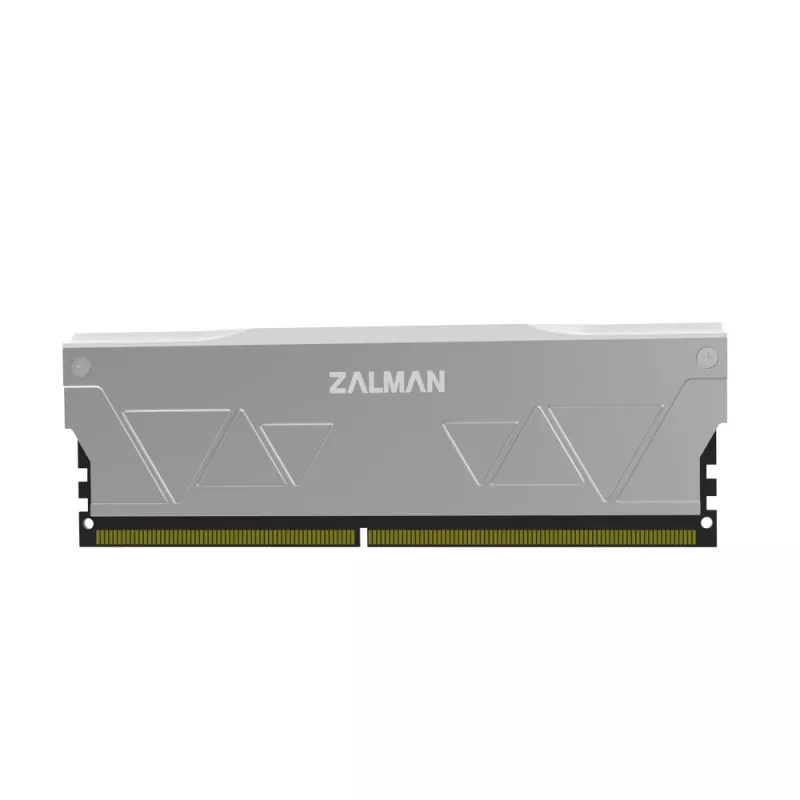

The Zalman ZM-MH10 is a slim aluminium-ABS heatsink set in silver finish, supplied as a pack of two. At 137 x 8.5 x 40 mm and weighing 55 g per module, the ZM-MH10 is designed for installation on single- or double-sided RAM modules and connects to a 3-pin addressable ARGB header for synchronized lighting at 5V.

Advantages

The heatsink combines an aluminium-magnesium alloy body with an ABS base and uses an anodized CNC process to improve surface quality and expand the heat dissipation area. Six addressable ARGB LEDs with reflective optics provide synchronized lighting effects when connected to motherboard ARGB software. Its low-profile dimensions ensure compatibility with most memory and cooler configurations while adding passive cooling capability and visual customization.

Suitable for

• Enhancing cooling and appearance of single-sided RAM modules
• Enhancing cooling and appearance of double-sided RAM modules
• Systems with 3-pin (addressable) ARGB motherboard headers
• PC builds where a slim, low-profile RAM heatsink is required

Key specifications

• Model: ZM-MH10
• Materials: Aluminium (aluminium-magnesium alloy), ABS
• Dimensions: 137 x 8.5 x 40 (H) mm
• Weight: 55 g (per piece)
• Colour: Silver
• Compatibility: Single/Double sided RAM modules
• Connector: 3-pin (Addressable RGB)
• Rated voltage: 5 V
• Package: 2 pieces

How to use

Clean the top surface of the RAM modules, remove any protective film from the heatsink adhesive (if present), align each ZM-MH10 heatsink centrally on the memory module and press firmly to secure. Connect the 3-pin addressable RGB cable to a compatible motherboard ARGB header and configure lighting through the motherboard’s RGB software. Ensure clearance with the CPU cooler and adjacent components before finalizing installation.

Recommendations

Use the ZM-MH10 on compatible memory modules only; verify module height and motherboard cooler clearance. Do not force installation on incompatible DIMMs. For optimal lighting sync, connect to a 5V addressable ARGB header and use the motherboard manufacturer’s RGB control utility.
