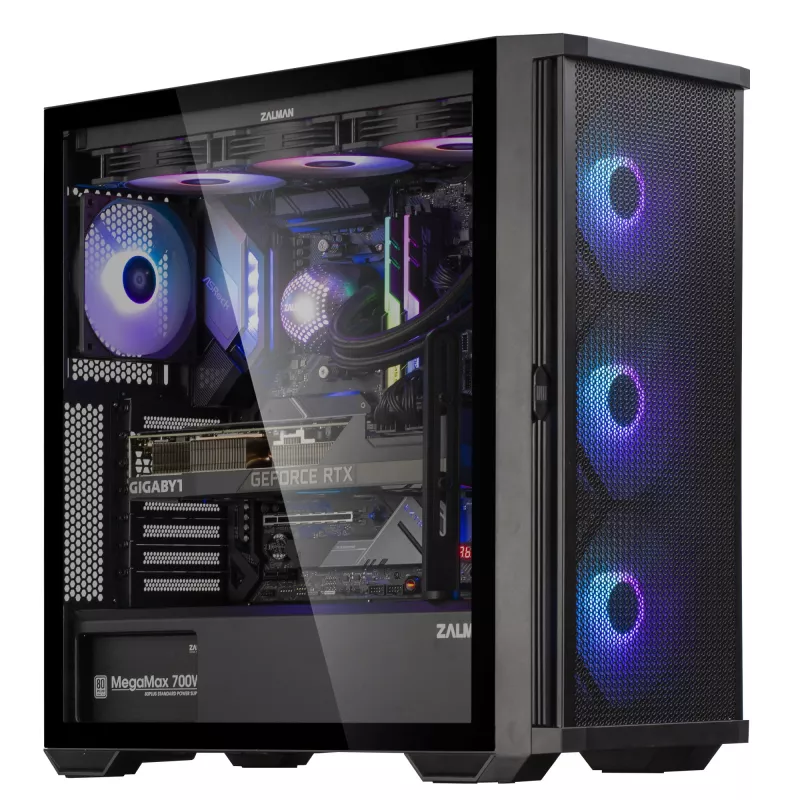

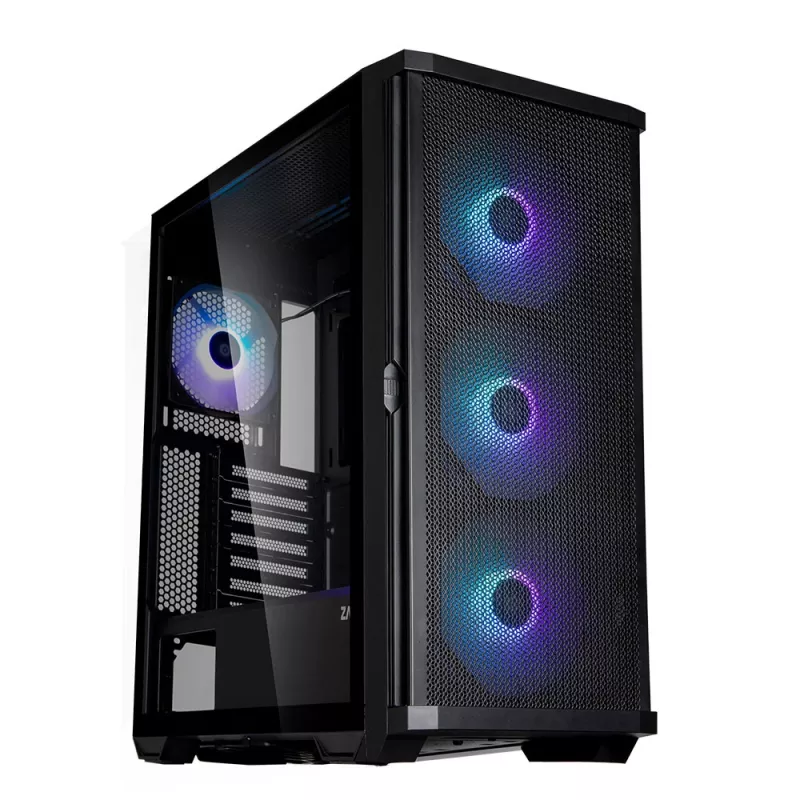

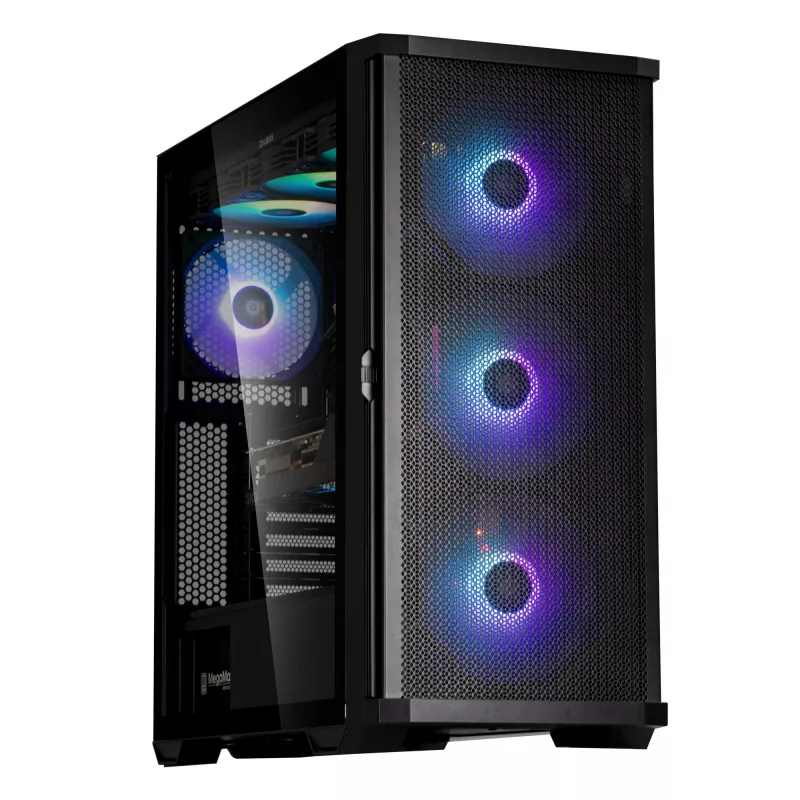

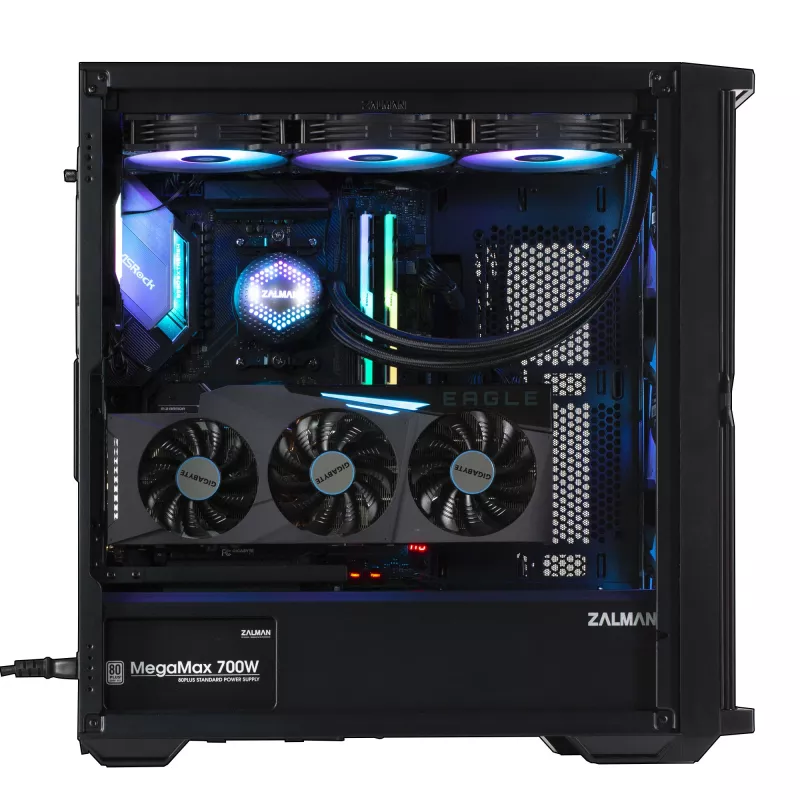

Zalman Z10 PLUS Κουτί υπολογιστή Midi Tower Μαύρο

The Zalman Z10 PLUS is a black ATX mid-tower PC case engineered for effective cooling and flexible expansion. It comes with a minimalistic front panel available in mesh or tempered glass, pre-installed ARGB fans, and support for multiple radiator sizes. The case accommodates ATX, mATX and Mini-ITX motherboards and offers tempered glass panels, a GPU support bracket with height adjustment, USB Type-C on the front I/O, and a variety of drive and fan mounting options.

Advantages

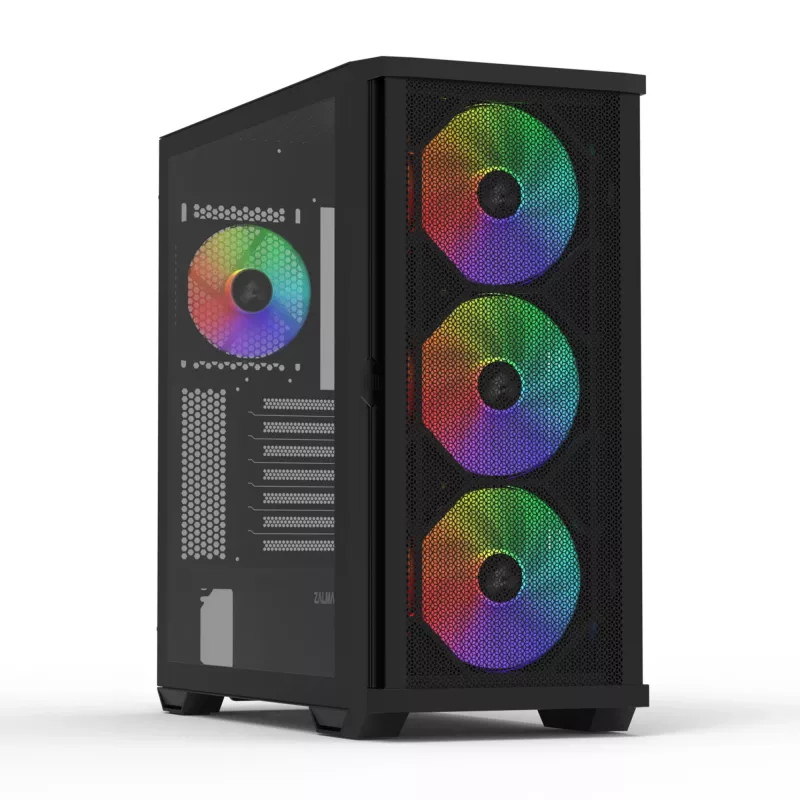

The chassis provides strong airflow through a full mesh front and low-noise pre-installed fans (three 140 mm ARGB front and one 120 mm ARGB rear). A 4 mm-thick tempered glass panel with stoppers allows easy removal. The included adjustable GPU support bracket helps prevent GPU sag and can be positioned for dual-GPU support. Cooling flexibility includes support for up to 360 mm radiators on front and top, multiple fan mounting positions including side and bottom, and space for long graphics cards and tall CPU coolers.

Suitable for (tasks / use cases)

• Building a gaming PC with high-airflow requirements
• Water-cooled systems using 240–360 mm radiators
• Workstations requiring multiple storage drives and long GPUs
• ARGB lighting setups and showcase builds with tempered glass side panel

Key specifications

• Model: Z10 PLUS; Form factor: ATX Mid Tower
• Dimensions: 481 x 220 x 488 mm; Weight: 8.1 kg
• Materials: Tempered glass (4 mm), Steel, Plastic
• Motherboard support: ATX / mATX / Mini-ITX
• Maximum GPU length: 395 mm; Maximum CPU cooler height: 173 mm; Maximum PSU length: 200 mm
• Drive bays: 2 x 3.5" (1 cage combo, 1 guide toolless), 2 x 2.5"
• PCI expansion slots: 7

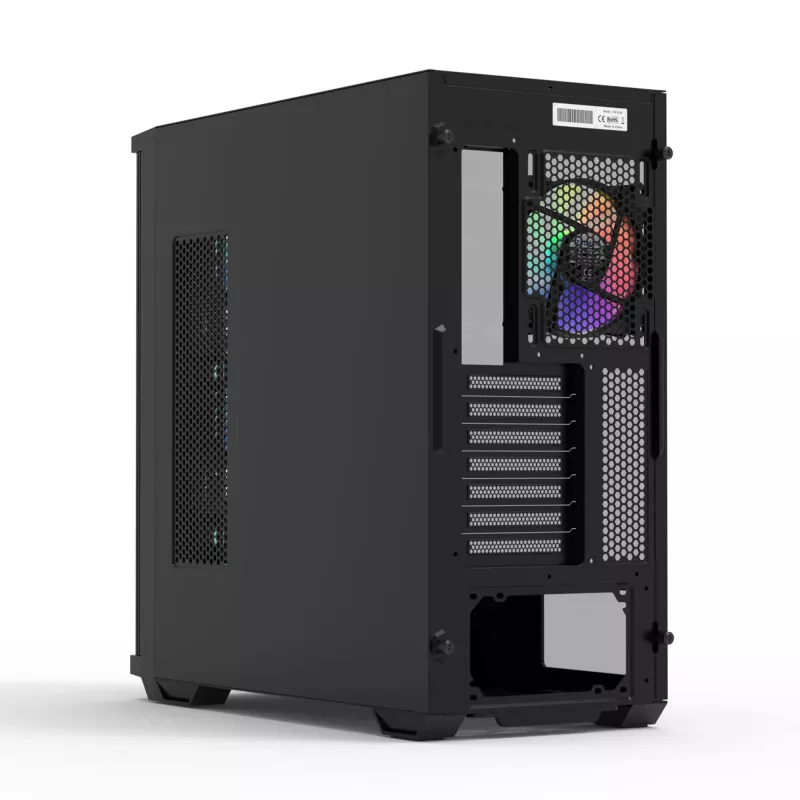

• Pre-installed fans: Front 3 × 140 mm ARGB; Rear 1 × 120 mm ARGB
• Fan support: Front 3×120/3×140 mm, Top 3×120/2×140 mm, Rear 1×120 mm, Bottom 2×120 mm, Side 2×120 mm
• Radiator support: Front/Top 120/140/240/280/360 mm; Rear 120 mm

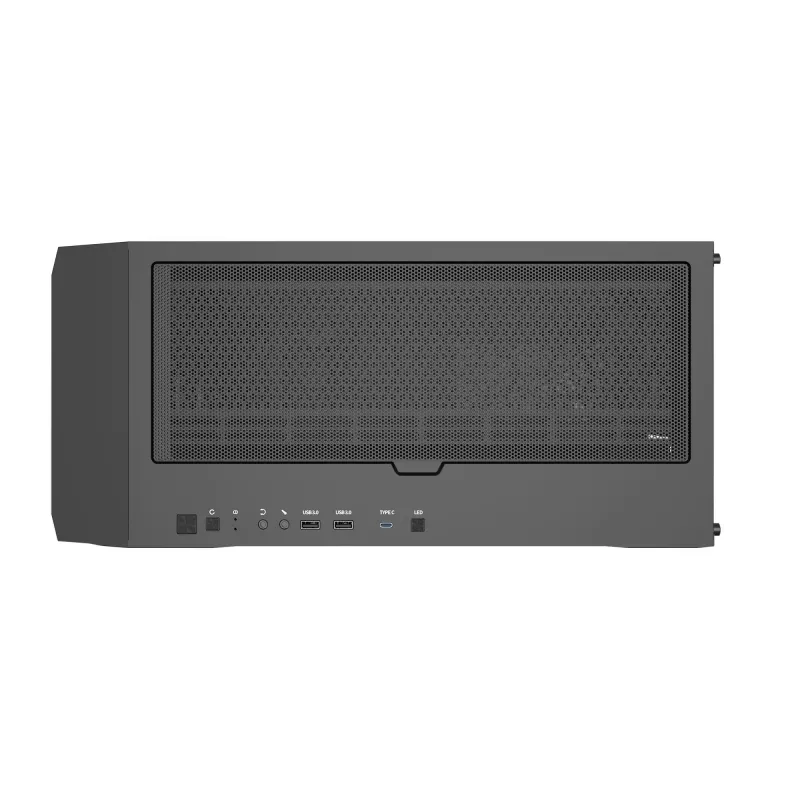

• I/O ports: 1× Headphones, 1× MIC, 2× USB 3.0, 1× USB Type-C, Power, Reset, LED buttons

How to use

Install the supported motherboard (ATX/mATX/Mini-ITX) onto the standoff locations, mount the PSU in the designated shroud area and route cables through the supplied cutouts for tidy cable management. Fit storage drives into the 3.5" cage or 2.5" mounts, and install the GPU while using the adjustable GPU support bracket to align and stabilize the card. For liquid cooling, mount compatible radiators at the front or top up to 360 mm, or a 120 mm radiator at the rear. Reattach the 4 mm tempered glass panel using the stoppers for secure placement.

Recommendations

For optimal cooling and quiet operation, use the included ARGB fans in combination with full-mesh front intake, maintain unobstructed airflow paths by routing cables behind the motherboard tray, and verify radiator clearance against memory and motherboard components before final installation.
