Υποδοχή πρίζας HDMI + 3,5mm Bachmann 917.189, 1 απλή, μαύρο

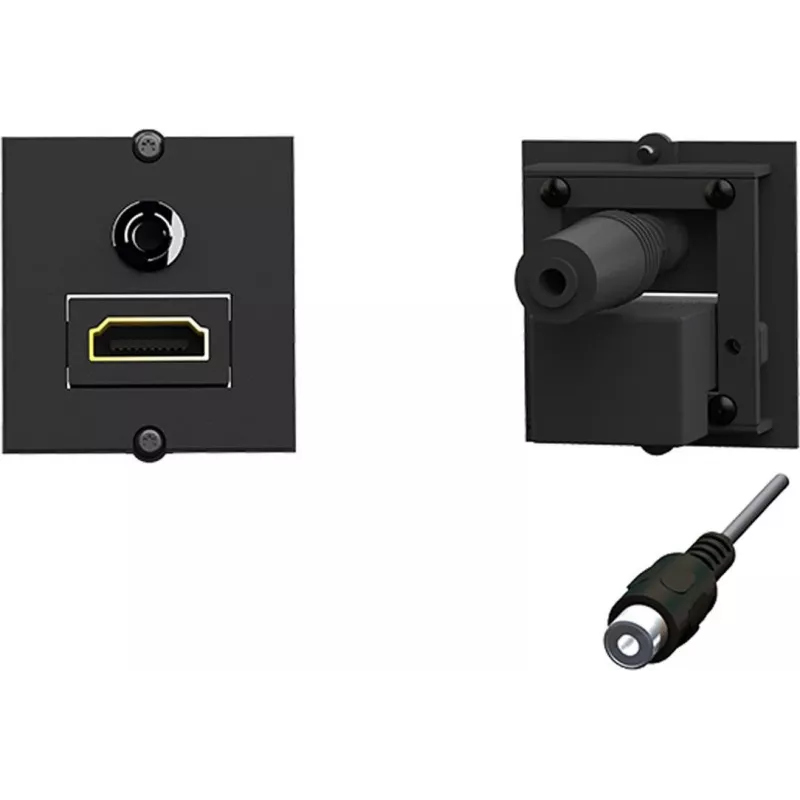

The Bachmann 1-module socket-outlet combines a standard HDMI connector and a 3.5 mm audio jack in a compact black module designed for installation into compatible modular frames or panels. This unit routes digital video and audio via HDMI while providing an analogue audio connection through the 3.5 mm jack. The module is intended for environments that require a discreet, integrated AV connection point such as meeting rooms, home entertainment systems and conference installations.

Advantages

The module integrates HDMI and 3.5 mm audio in a single 1-module form factor, saving space in modular frames and allowing a neat installation without separate faceplates. Its black finish conceals fingerprints and matches contemporary AV furniture and paneling. The outlet is designed with a 90° side orientation to allow lateral cable exit when used with compatible power strips that accept 90° side outlets, reducing cable strain and improving cable routing in confined spaces.

Suitable for

• Meeting rooms and conference tables where HDMI video and analogue audio connections are required
• Home theatre systems and media cabinets needing a compact wall or panel AV feed
• Presentation kiosks and podiums with integrated modular frames
• Installations where lateral 90° cable routing is necessary to save space

Key specifications

• Module size: 1-module form factor for compatible modular frames
• Connectors: HDMI socket and 3.5 mm audio jack
• Finish: black
• Orientation: 90° side outlet for lateral cable exit
• Application: routing of digital video/audio (HDMI) and analogue audio (3.5 mm)

How to use

Install the module into a compatible modular frame or panel slot sized for a 1-module unit following the installation instructions of the frame manufacturer. Connect an HDMI cable to the HDMI socket for digital video and audio transmission and use a 3.5 mm cable or plug for analogue audio. Ensure the receiving device and source are powered off during connection to avoid signal issues, then power devices on and select the appropriate input on the display or audio system. Route cables laterally to the side to match the 90° outlet orientation and secure them to prevent strain at the connector.

Recommendations

Use certified HDMI cables for reliable high-definition signal transmission and keep analogue and digital cables separated where possible to reduce interference. Verify that the chosen modular frame or power strip accepts side-mounted 90° outlets before installation to ensure correct fit and cable routing.
