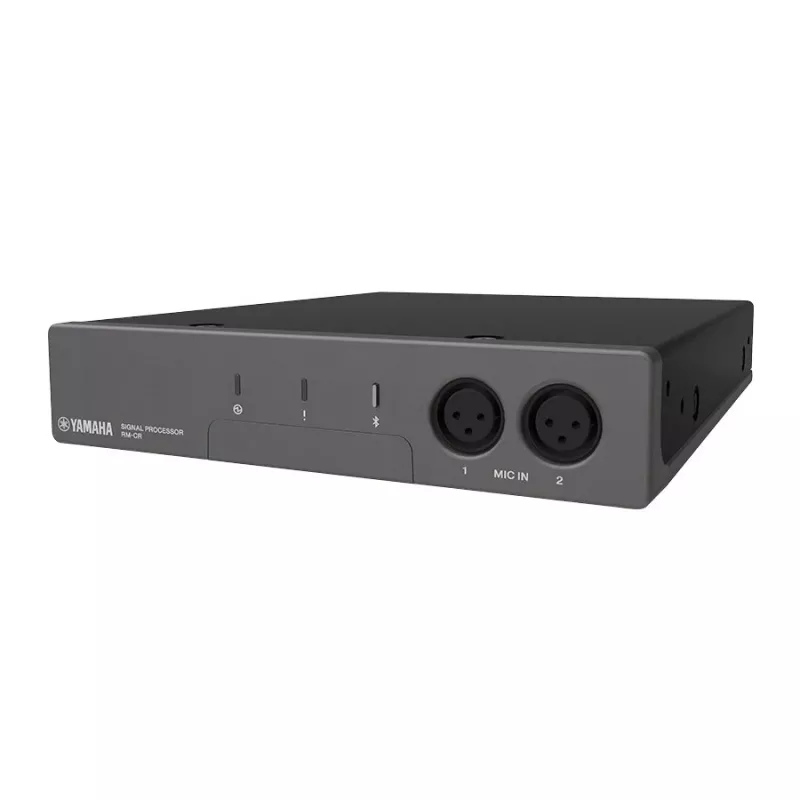

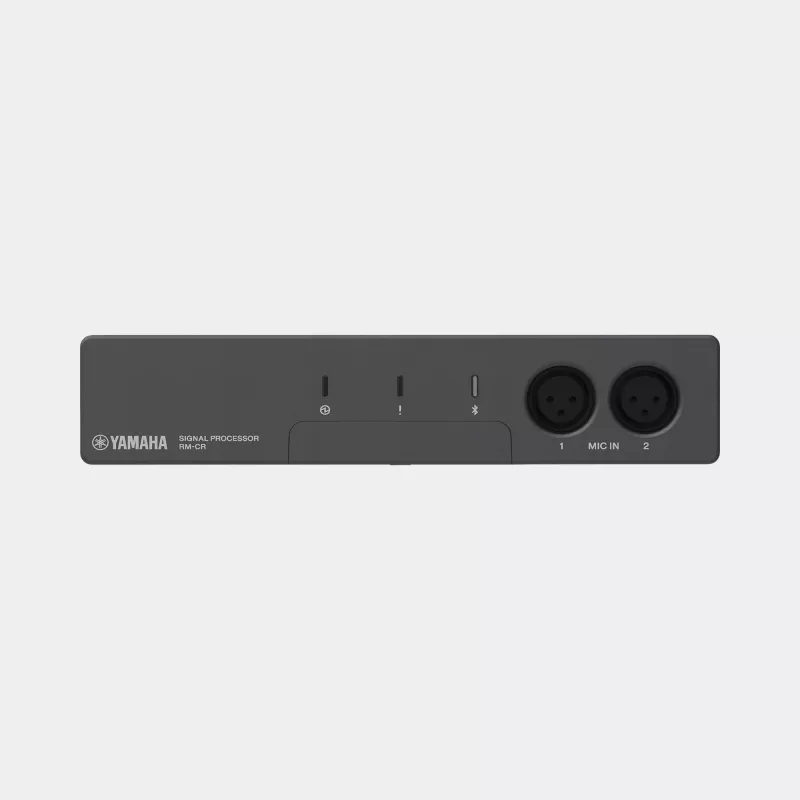

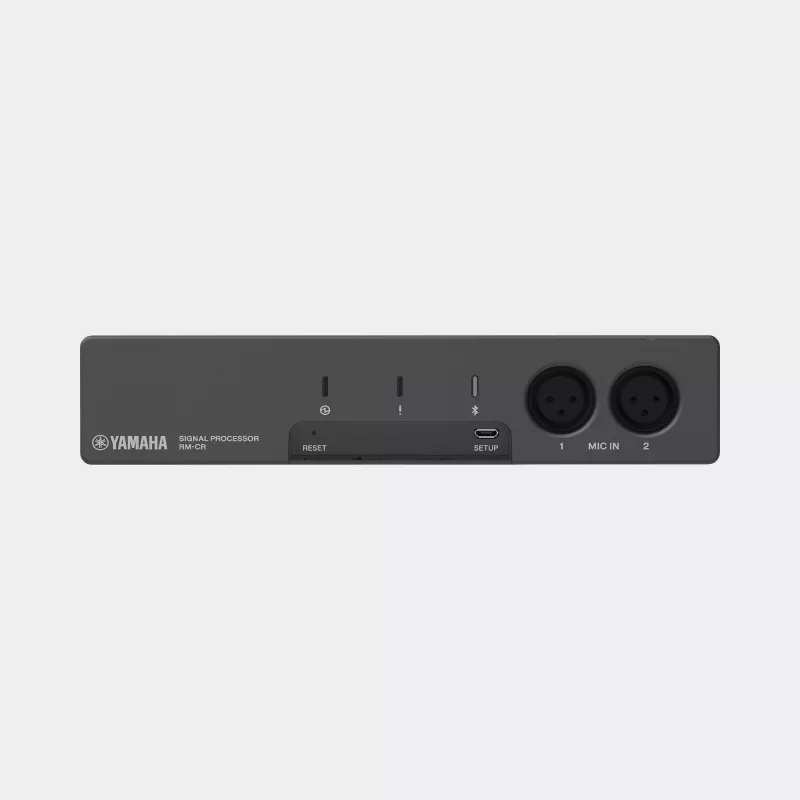

Yamaha RM-CR ADECIA επεξεργαστής μικροφώνου

The Yamaha RM-CR is a high-performance conference processor and DSP mixer designed for the ADECIA ecosystem. It delivers ultra-low latency audio processing with advanced acoustic echo cancellation, adaptive noise reduction, automatic gain control, and de-reverberation for crystal-clear conferencing. The unit supports Dante audio networking, USB audio, and analog I/O, and is powered via PoE+ (IEEE 802.3at). It is rack-mountable in a 1U form factor and integrates seamlessly with Yamaha ADECIA RM-CG and RM-TT components.

Advantages

Optimized for professional conferencing environments, the RM-CR ensures natural, intelligible speech with minimal setup. Its Dante connectivity allows flexible integration into existing audio networks, while the comprehensive DSP suite eliminates echo, background noise, and reverberation. The unit is easy to configure via web UI or Yamaha ProVisionaire software.

Suitable for

• Conference rooms and meeting spaces
• Boardrooms and executive offices
• Education and training facilities
• Any environment requiring high-quality audio conferencing

Key specifications

• Product Type: Conference Processor / DSP Mixer
• Audio Network Protocol: Dante
• Acoustic Echo Cancellation (AEC): Yes
• Noise Reduction: Adaptive
• Automatic Gain Control (AGC): Yes
• De-reverberation: Yes

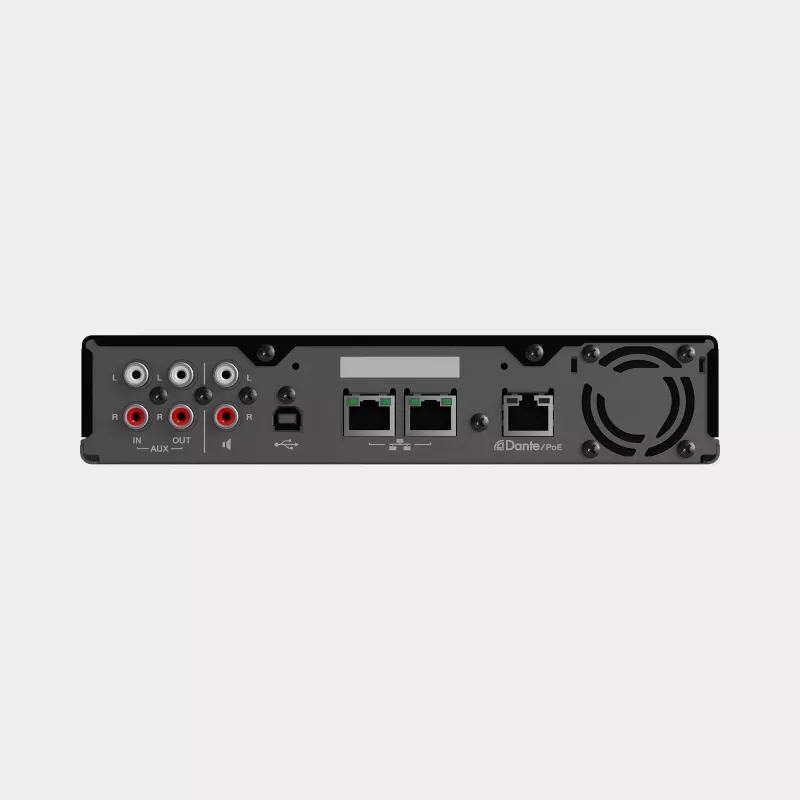

• Connectivity: Dante I/O, USB Audio 2-in/2-out, 2 x XLR/TRS Combo Inputs, 2 x XLR Outputs, Control Network
• Power Supply: PoE+ (IEEE 802.3at)
• Mounting: 1U Rack-mountable
• Sampling Frequency: 48 kHz
• Frequency Response: 20 Hz - 20 kHz (+0.5 dB/-1.0 dB)
• Control Interface: Web UI, Yamaha ProVisionaire Design/Control, Dante Controller
• Compatibility: Yamaha ADECIA Conferencing Solutions (RM-CG, RM-TT)

Recommendations

For optimal performance, pair the RM-CR with Yamaha ADECIA RM-CG ceiling array microphone and RM-TT tabletop microphone. Use a PoE+ switch to power the unit and ensure network stability.
