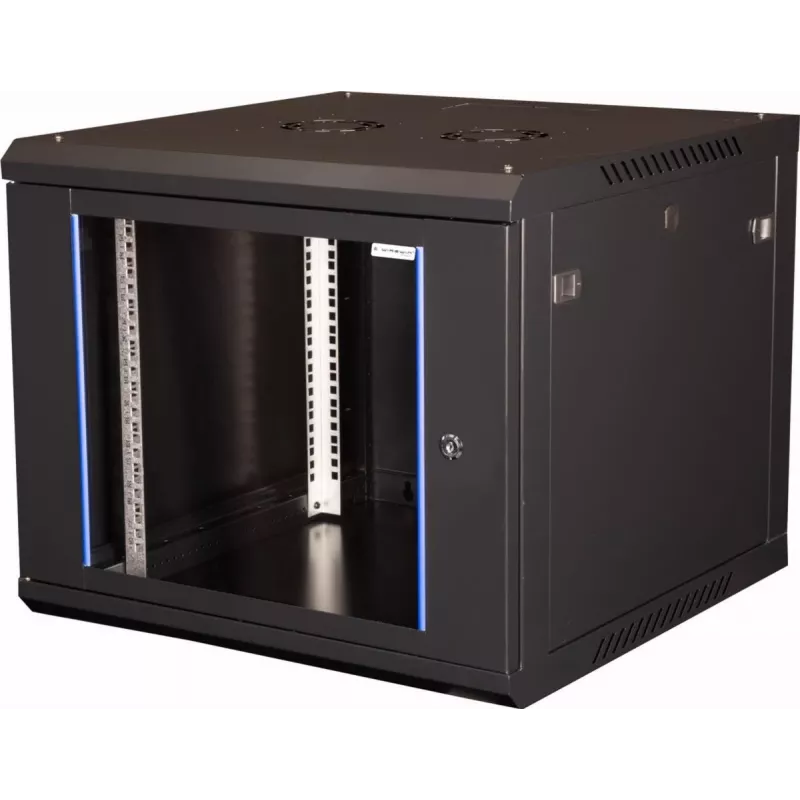

Wirewin WCAB PS3 600X600X9U B επιτοίχιο κουτί 19 ιντσών, 9U, 600x600mm, μαύρο

The Wirewin 19" Wall-Mount Cabinet, Pro 3rd Generation, one-piece welded frame, offers a compact 9U enclosure with a tempered glass front door and removable lockable side panels. Its 600x600mm footprint fits standard 19-inch equipment, while top and bottom cable entry with brush strips keeps installations tidy.

Highlights

• 9U rack capacity in a wall-mount form factor
• One-piece welded steel frame for rigidity
• Tempered glass front door with security lock
• Removable, lockable side panels for easy access
• Top and bottom cable entry with brush strips
• Passive ventilation with fan cutouts in top panel
• 60 kg maximum load capacity
• Adjustable 19" mounting rails (depth adjustable)

In daily use

Mount this cabinet on a wall to save floor space while securing network switches, patch panels, and other 19" equipment. The glass door allows visual monitoring of indicator lights, and the lock restricts access. Removable side panels simplify cable management and equipment installation. The included keys and mounting hardware facilitate setup.

Full specifications

• Rack type: Wall Mount Cabinet
• Rack units: 9U
• Rack width: 19 inch
• External dimensions (WxDxH): 600 x 600 x 500 mm
• Colour: Black (RAL 9005)
• Material: Steel
• Front door: Tempered glass with security lock
• Side panels: Removable, lockable
• Construction: One-piece welded frame
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive, fan cutouts in top panel
• Load capacity: 60 kg
• Protection rating: IP20
• Product series: Pro 3rd Generation
• Standards compliance: IEC 60297-3-100, EN 60950-1
• Included accessories: 2 keys, mounting hardware, adjustable 19" mounting rails

Final note

The Wirewin WCAB PS3 600X600X9U B combines security, accessibility, and ventilation in a compact wall-mount design for small network installations.
