WIHA 47218 Σετ ελεγκτή εγκατάστασης MFT One με αξεσουάρ

The WIHA 47218 Installation Tester Set MFT One stands out by bundling the multifunction tester with a comprehensive accessory kit, making it ready for professional electrical safety testing straight out of the case. It covers the essential measurements required by IEC 60364 and EN 61557, including RCD testing, loop impedance, insulation resistance, and more, all in a single portable unit.

Highlights

• Tests RCDs of types A, AC, F, B, and B+ with currents from 10 mA to 1000 mA
• Measures loop impedance using both high-current and no-trip methods for RCD-protected circuits
• Insulation testing at 50 V, 100 V, 250 V, 500 V, and 1000 V
• Large backlit LCD for clear readings in any lighting

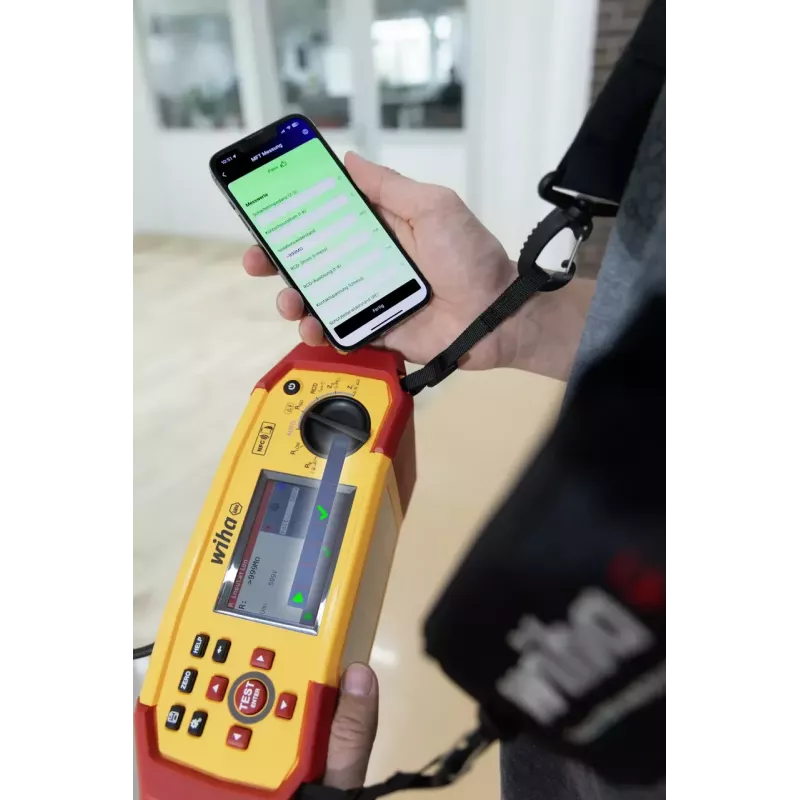

• Bluetooth connectivity for data transfer and internal memory for measurement storage

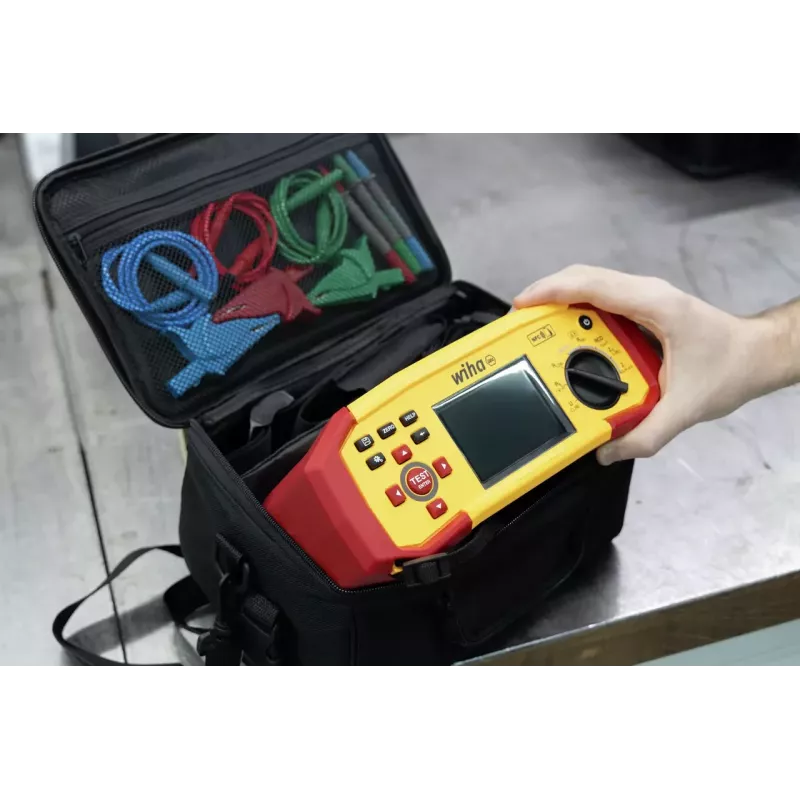

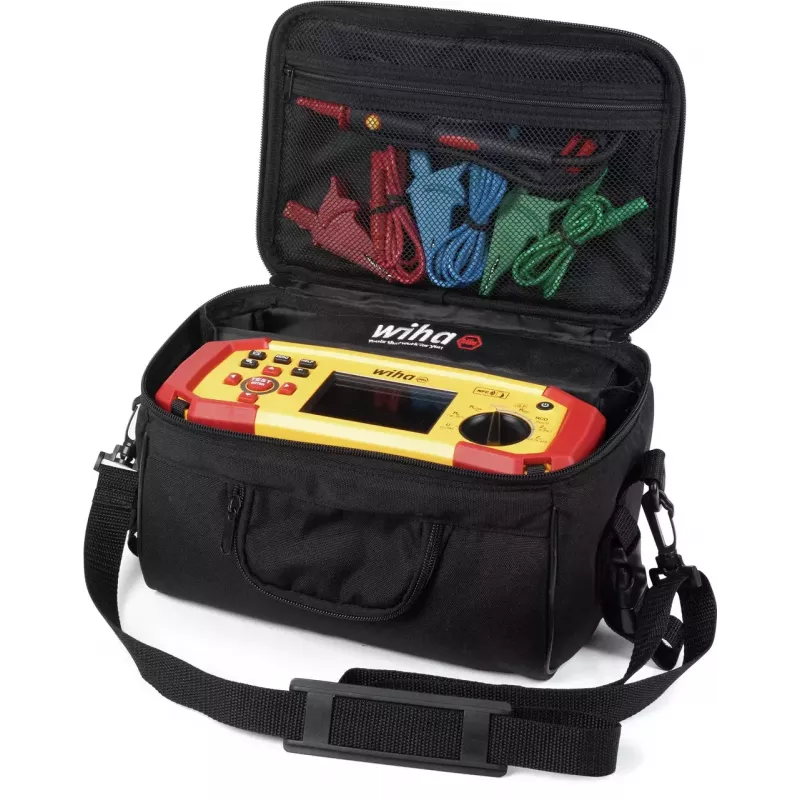

• Includes test leads, probes, crocodile clips, mains plug adapter, remote probe, carrying case, software, and earth spike set

In daily use

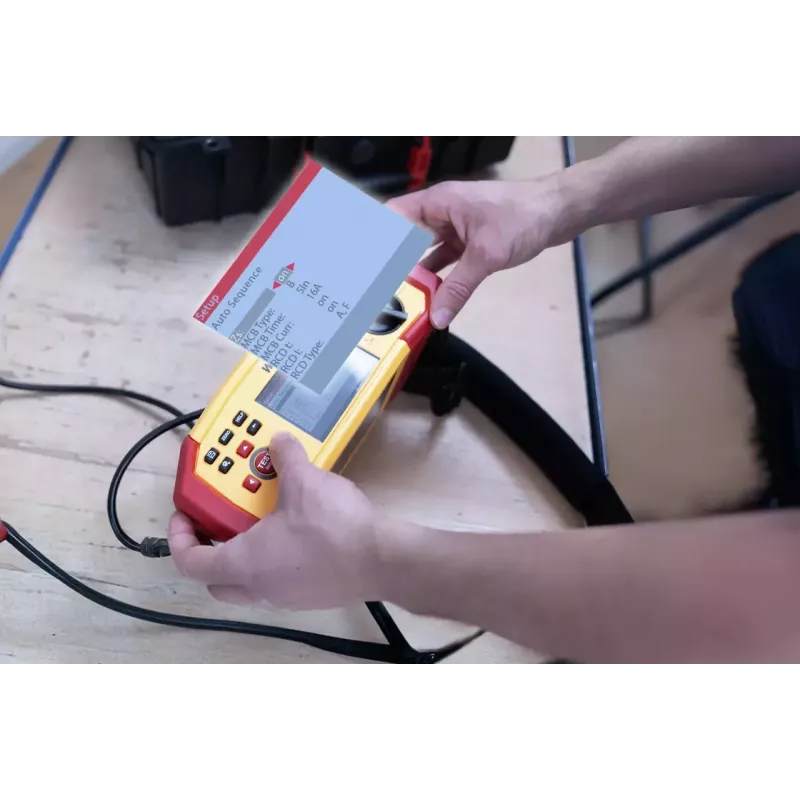

Electricians will appreciate the automatic test sequences and phase sequence test, which speed up routine verification tasks. The device is powered by six AA batteries (rechargeable NiMH compatible), providing flexibility in the field. With a safety rating of CAT III 600 V and CAT IV 300 V, it is suitable for a wide range of installation environments.

Full specifications

• Measurement functions: RCD, loop impedance, insulation resistance, voltage, resistance, continuity, phase sequence, earth resistance
• RCD test types: A, AC, F, B, B+
• RCD test currents: 10 mA, 30 mA, 100 mA, 300 mA, 500 mA, 1000 mA
• Insulation test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
• Voltage measurement range: AC/DC 0–600 V
• Resistance measurement range: 0.01 Ω to 2000 Ω
• Continuity test current: >200 mA
• Display: Large, backlit LCD
• Power source: 6x AA batteries (rechargeable NiMH compatible)
• Data storage: Internal memory
• Connectivity: Bluetooth
• Compliance standards: EN 61557, IEC 60364
• Protection class: IP40
• Included accessories: Test leads, probes, crocodile clips, mains plug test adapter, remote probe, carrying case, software, earth spike set
• Automatic test sequences: Yes
• Phase sequence test: Yes

Final note

A complete testing solution for electrical installations, combining advanced functionality with practical accessories in one set.
