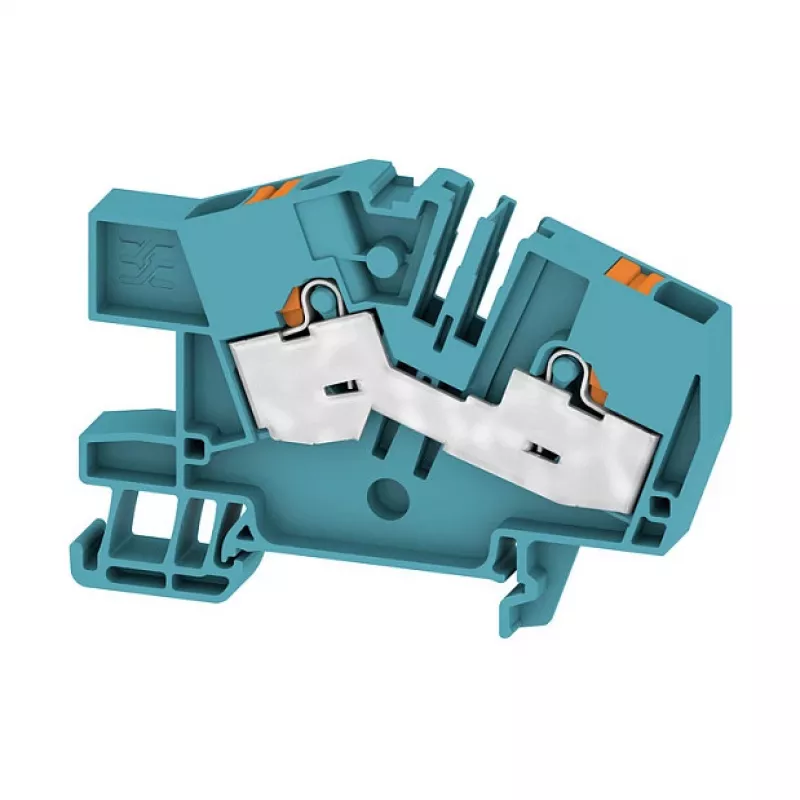

Weidmüller AITB 6 BB 2C BL Ακροδέκτης διέλευσης, 6 mm², μπλε, 2668710000

The Weidmüller AITB 6 BB 2C BL is a high-quality feed-through terminal block designed for reliable and safe electrical connections. With a rated cross-section of 6 mm² and a rated voltage of 1000 V, it is suitable for a wide range of industrial applications. The blue insulating housing made of Wemid material ensures excellent thermal and mechanical properties, while the screw connection technology provides secure and durable wiring.

Advantages

This terminal block offers easy installation on DIN rail TS 35, saving time and space in control cabinets. The V-0 flammability rating according to UL 94 guarantees high fire safety. With a wide operating temperature range from -50 °C to 120 °C, it performs reliably even in harsh environments.

Suitable for

• Industrial control systems
• Building automation
• Power distribution panels
• Machine wiring

Key specifications

• Product Type: Feed-through Terminal Block
• Number of Connections: 2
• Number of Potentials: 1
• Rated Cross-section: 6 mm²
• Rated Voltage (IEC): 1000 V
• Rated Current (IEC): 41 A
• Connection Technology: Screw Connection
• Mounting Type: DIN Rail TS 35
• Color: Blue
• Insulating Material: Wemid
• Operating Temperature: -50 °C to 120 °C
• Pollution Degree: 3
• Overvoltage Category: III
• Flammability Rating (UL 94): V-0
• Stripping Length: 12 mm
• Clamping Range (Flexible with Ferrule): 0.5 - 10 mm²
• Clamping Range (Solid): 0.5 - 10 mm²
• Tightening Torque: 0.8 - 1.2 Nm

Recommendations

For optimal performance, use appropriate ferrules for flexible conductors and ensure proper tightening torque. This terminal block is ideal for applications requiring high reliability and safety standards.
