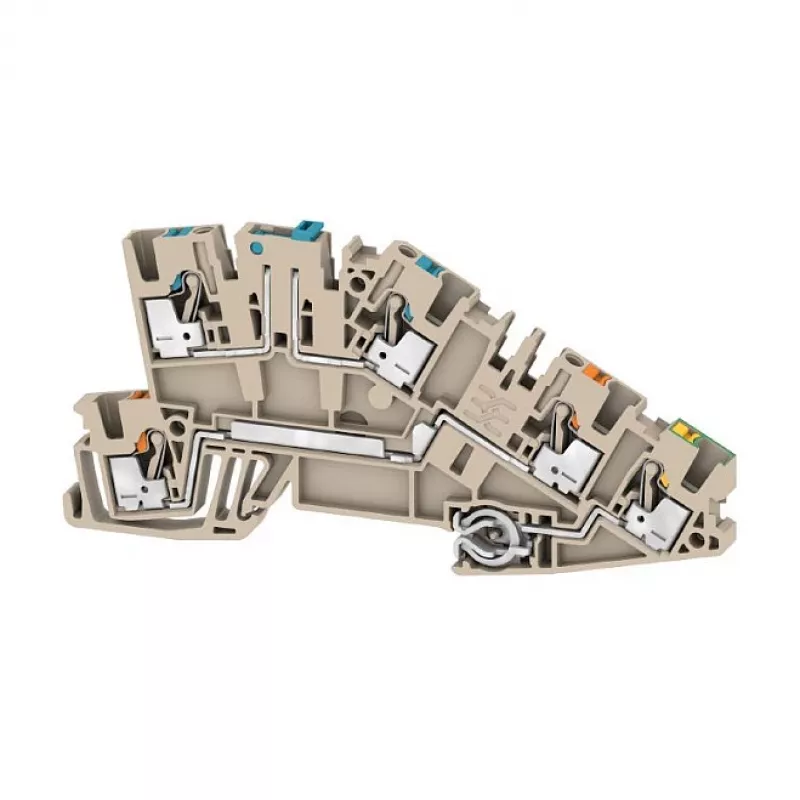

Weidmüller AITB 2.5 NDT-L-PE Ακροδέκτης σειράς εγκατάστασης 2669030000

The Weidmüller AITB 2.5 NDT-L-PE is a high-quality installation terminal block designed for reliable electrical connections in industrial and building installations. With PUSH IN connection technology, it ensures fast, tool-free wiring and secure contact. This terminal block is part of the AITB series, offering three potentials (L, N, PE) and a rated cross-section of 2.5 mm², suitable for a wide range of applications.

Advantages

• PUSH IN connection technology for quick and easy wiring without special tools
• Compact design with three potentials (L, N, PE) saves space on DIN rail
• High rated voltage (400 V) and current (24 A) for demanding applications
• Wide operating temperature range from -50 °C to +120 °C
• UL94 V-0 flammability rating ensures safety in case of fire

Suitable for

• Industrial control cabinets
• Building automation systems
• Power distribution panels
• Lighting and HVAC systems

Key specifications

• Connection Technology: PUSH IN
• Rated Cross-Section: 2.5 mm²
• Number of Potentials: 3 (L, N, PE)
• Number of Connections: 3
• Rated Voltage (IEC): 400 V
• Rated Current (IEC): 24 A
• Mounting Type: DIN Rail TS 35
• Insulating Material: Polyamide (PA)
• Colour: Grey
• Operating Temperature Range: -50 °C to +120 °C
• Flammability Rating: UL94 V-0
• Wire Size (Solid): 0.5 - 4 mm²
• Wire Size (Stranded): 0.5 - 4 mm²
• Wire Size (AWG): 20 - 12
• Stripping Length: 10 mm
• Pollution Degree: 3
• Number of Levels: 1

Recommendations

For optimal performance, use with appropriate ferrules and ensure proper stripping length. This terminal block is ideal for new installations or retrofitting existing systems. Always follow local electrical codes and regulations.
