WAGO Βραχίονας στερέωσης θωράκισης 790-108 πλάτος 11 mm

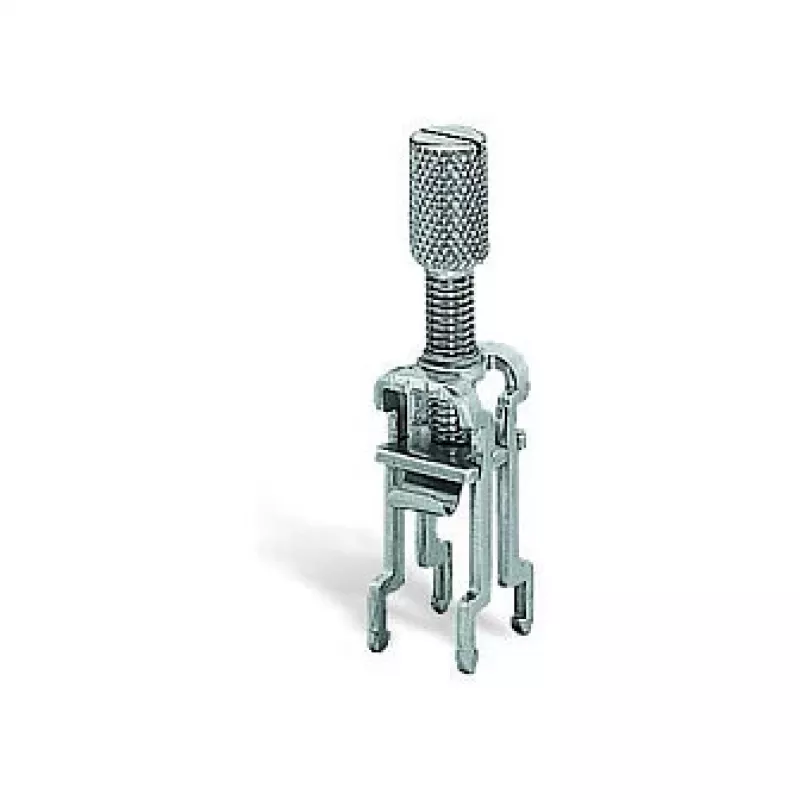

The WAGO Shield Clamping Bracket 790-108 is a high-quality accessory designed for EMC-compliant cable shielding. With a width of 11 mm, it provides a low-impedance connection of cable shields to ground potential, ensuring reliable electromagnetic compatibility (EMC) in industrial and building installations. This bracket is part of the WAGO 790 Series and is compatible with the TOPJOB S terminal block system.

Advantages

Tool-free installation saves time and effort. The CAGE CLAMP® spring connection technology ensures a secure and maintenance-free shield connection. The compact 11 mm width allows for space-saving mounting on DIN rails or directly on carrier terminal blocks. Robust materials provide long-term reliability in demanding environments.

Suitable for

• EMC shielding of cables in control cabinets and junction boxes
• Grounding cable shields in industrial automation systems
• Installations requiring low-impedance shield connection to ground
• Use with WAGO TOPJOB S terminal blocks for shielded wiring

Key specifications

• Product Type: Shield Clamping Bracket
• Series: WAGO 790 Series
• Width: 11 mm
• Shield Connection Range: 0.25 - 16 mm² (AWG 24 - 6)
• Max. Cable Shield Diameter: 11 mm
• Mounting: DIN Rail (TS 35) or Direct Mount on Carrier Terminal Blocks
• Connection Technology: CAGE CLAMP® (Spring-type)
• Material (Clamping Part): Galvanized Steel
• Material (Insulating Part): Polyamide 66 (PA 66)
• Color: Silver / Light Gray
• Flammability Rating: UL94 V-0
• Operating Temperature: -60 to +100 °C
• Pollution Degree: 2
• Standards: RoHS compliant

Recommendations

For optimal EMC performance, use this shield clamping bracket with WAGO TOPJOB S terminal blocks and ensure proper grounding of the DIN rail. Suitable for a wide range of cable diameters up to 11 mm.
