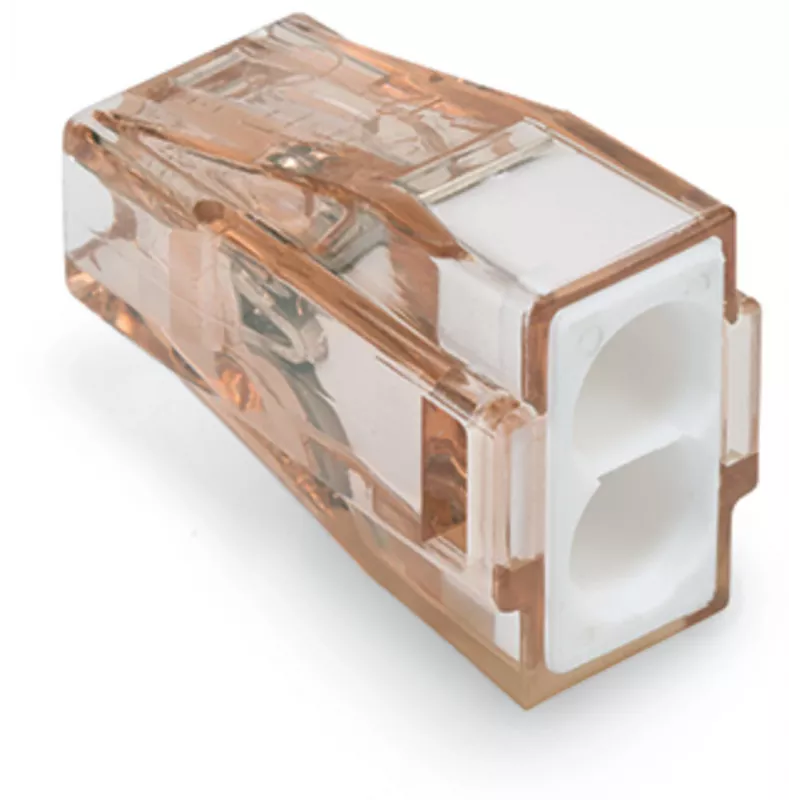

WAGO 773-602 Push-Wire Σύνδεσμος 2 αγωγών διαφανές/λευκό 400V 32A 1,5-2,5mm²

The WAGO 773-602 is a compact 2-conductor Push-Wire connector designed for solid conductors. With a transparent/white housing, it offers reliable and maintenance-free wiring for electrical installations. Rated for 400V and 32A, it accepts solid conductors from 1.5 to 2.5 mm² (AWG 16-14). The side-entry design simplifies wiring, and the connector is VDE, UL, CSA, and ENEC approved.

Advantages

Tool-free Push-Wire technology enables fast and secure connections. The transparent housing allows visual inspection of conductor insertion. Compact size saves space in junction boxes. High temperature range (-35°C to +105°C) suits demanding environments.

Suitable for

• Lighting installations
• Junction boxes
• Control cabinets
• General electrical wiring

Key specifications

• Number of Conductors: 2
• Connection Type: Push-Wire
• Conductor Type: Solid (single-strand)
• Nominal Cross Section: 1.5 - 2.5 mm² (AWG 16-14)
• Rated Voltage: 400 V
• Rated Current: 32 A
• Color: Transparent / White
• Stripping Length: 12 mm
• Wiring Type: Side-entry
• Pollution Degree: 2
• Insulation Material: Polyamide (PA 6.6)
• Flammability Rating: UL 94 V-2
• Operating Temperature: -35°C to +105°C
• Approvals: VDE, UL, CSA, ENEC
• Mounting Type: Free Wiring

Recommendations

For optimal performance, use only solid copper conductors and strip to 12 mm. Ensure connectors are not subjected to excessive vibration or moisture beyond specified ratings.
