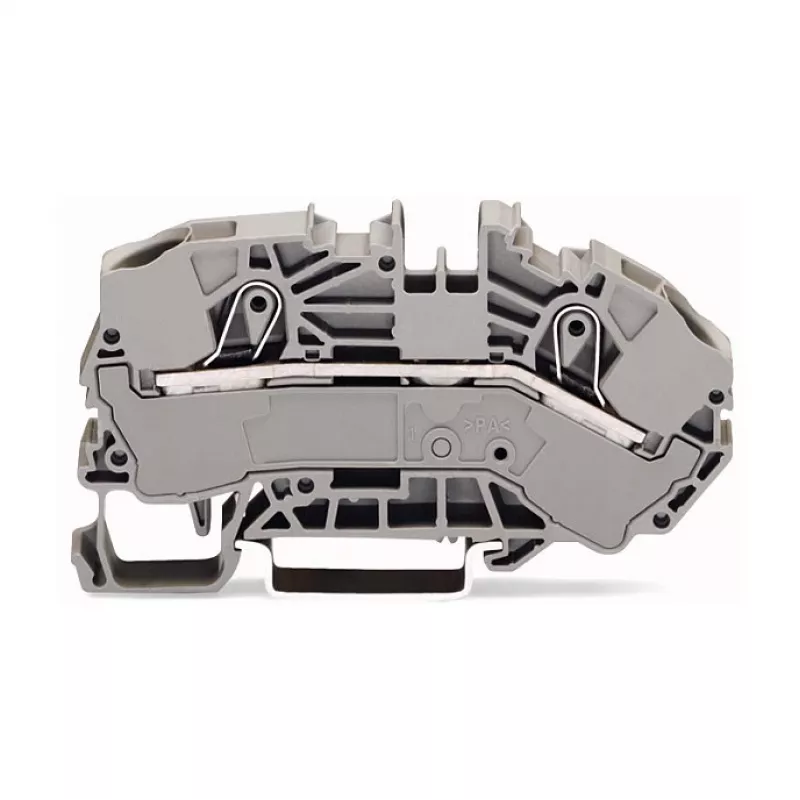

WAGO 2016-7604 Ακροδέκτης διέλευσης, 4 αγωγών, 16 mm², 800 V, γκρι

The WAGO 2016-7604 is a high-quality through terminal block designed for reliable and safe electrical connections. With 4 conductors and a rated voltage of 800 V, it is ideal for industrial and commercial applications. The CAGE CLAMP® connection technology ensures fast, maintenance-free wiring.

Advantages

• CAGE CLAMP® spring connection for vibration-proof and gas-tight connections
• Compact design saves space on DIN-rail 35
• Rated current up to 76 A for demanding loads
• Wide conductor range from 0.5 to 16 mm² (20-6 AWG)
• Gray polyamide 66 housing with V0 flammability rating for safety

Suitable for

• Control cabinets and distribution boards
• Industrial automation and machinery
• Building infrastructure and power distribution
• Lighting and HVAC systems

Key specifications

• Product Type: Through Terminal Block
• Number of Conductors: 4
• Connection Technology: CAGE CLAMP®
• Mounting Type: DIN-rail 35
• Rated Voltage (IEC/EN 60947-7-1): 800 V
• Rated Impulse Voltage: 8 kV
• Rated Current (IEC/EN 60947-7-1): 76 A
• Nominal Cross Section: 16 mm² (6 AWG)
• Solid Conductor Size: 0.5 - 16 mm² (20 - 6 AWG)
• Stranded Conductor Size: 0.5 - 16 mm² (20 - 6 AWG)
• Fine-Stranded Conductor Size: 0.5 - 16 mm² (20 - 6 AWG)
• Fine-Stranded with Ferrule: 0.5 - 10 mm² (20 - 8 AWG)
• Stripping Length: 20 - 22 mm
• Insulation Material: Polyamide 66 (PA 66)
• Color: Gray
• Actuation Type: Push-in, Operating tool
• Pollution Degree: 3
• Flammability Class (UL94): V0
• Dimensions (WxHxD): 12 mm x 85.7 mm x 40.8 mm

Recommendations

For optimal performance, use with WAGO operating tools and accessories. Ensure proper stripping length (20-22 mm) for secure connections. Suitable for use in environments with pollution degree 3.
