WAGO 2002-1204 Μπλοκ κλέμας Push-in 4 αγωγών, 2,5 mm², 800 V, γκρι

The WAGO 2002-1204 is a high-quality 4-conductor push-in terminal block from the 2002 series, designed for reliable and tool-free wiring in industrial and building installations. With a rated voltage of 800 V and a rated current of 24 A, it is suitable for a wide range of applications. The compact design (5.2 mm width) saves space on the DIN rail, while the Push-in CAGE CLAMP® connection technology ensures fast and secure conductor termination.

Advantages

Tool-free push-in connection for solid and stranded conductors; time-saving installation; vibration-proof and maintenance-free; compact width for high-density wiring; clear marking and test point for easy troubleshooting.

Suitable for

• Control cabinets and switchgear
• Building automation and lighting systems
• Industrial machinery and equipment
• Ex e applications (Zone 1, Zone 2) with appropriate approvals

Key specifications

• Number of conductors: 4
• Connection type: Push-in CAGE CLAMP®
• Nominal cross-section: 2.5 mm² (AWG 14)
• Rated voltage (EN 60947-7-1): 800 V
• Rated impulse voltage: 8 kV
• Rated current (EN 60947-7-1): 24 A
• Mounting type: DIN Rail 35 (TS 35)
• Color: Gray
• Insulating material: Polyamide (PA 66)
• Flammability rating (UL 94): V0
• Operating temperature: -35 °C to +85 °C
• Stripping length: 9 – 11 mm
• Solid conductor size: 0.25 – 4 mm² / 22 – 12 AWG
• Stranded conductor size: 0.25 – 4 mm² / 22 – 12 AWG
• Fine-stranded conductor size: 0.25 – 2.5 mm² / 22 – 14 AWG
• Pollution degree: 3
• Ex e rated voltage (Ex eb IIC Gb): 550 V
• Ex e rated current (Ex eb IIC Gb): 20 A

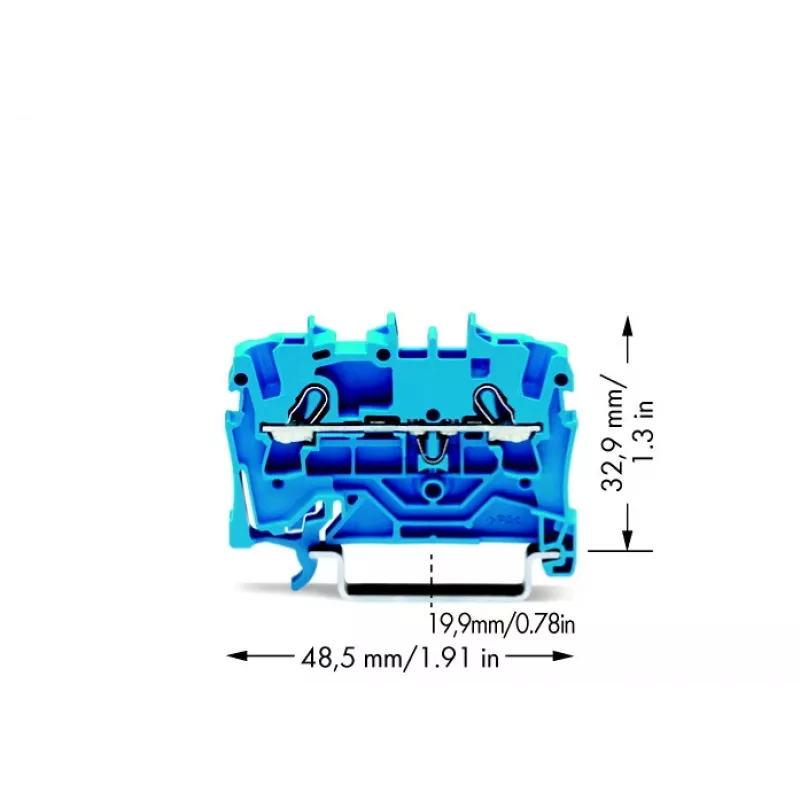

• Dimensions (W x H x D): 5.2 mm x 48.5 mm x 32.9 mm

Recommendations

For optimal performance, use WAGO ferrule crimping tools and marking strips. Ensure proper stripping length and conductor insertion. Suitable for use with WAGO 2002 series accessories such as end plates and jumpers.
