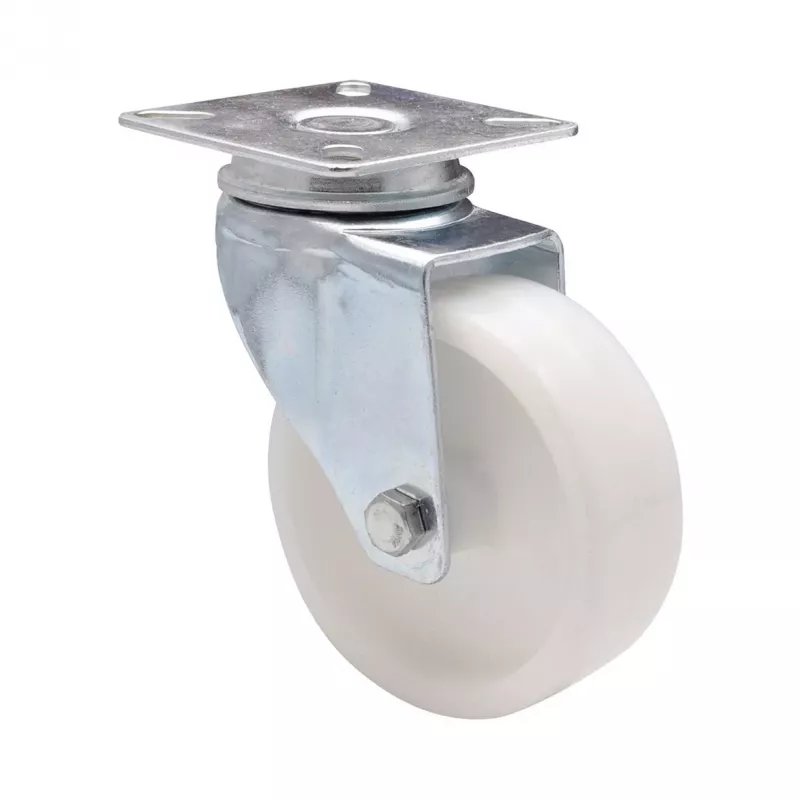

Wagner design yourself Τροχός με στροφή RO 1675 Λευκό (3167501)

Ideal for light furniture, appliances, and trolleys, this swivel caster allows smooth movement on sensitive floors. The white polypropylene wheel and galvanized steel housing provide durability and a clean appearance.

Key specifications

• Wheel diameter: 50 mm
• Load capacity: 40 kg per caster
• Overall height: 65 mm
• Mounting plate: 40 x 40 mm
• Bolt hole spacing: 28 x 28 mm
• Bolt hole diameter: 5.2 mm
• Wheel material: Polypropylene (PP)
• Housing material: Galvanized steel
• Bearing type: Plain bearing
• Caster type: Swivel caster
• No brake
• Wheel colour: White
• Housing colour: Silver (galvanized)
• Suitable for sensitive floors
• Temperature range: -20°C to +60°C
• Tread hardness: 98 Shore A
• Mounting method: Screw-on plate
• Swivel offset: 20 mm
• Swivel radius: 40 mm

Why choose it

The RO 1675 combines a robust galvanized steel housing with a soft polypropylene wheel, protecting delicate flooring while supporting up to 40 kg per caster. Its swivel design ensures effortless maneuverability in tight spaces.

Ideal use cases

• Light furniture such as side tables and cabinets
• Small appliances like kitchen trolleys
• Utility carts in offices or workshops

Good to know

Mounting is straightforward using the screw-on plate with standard bolt hole spacing. For heavier loads, consider using multiple casters to distribute weight evenly.
