Βραχίονας προσαρμογέα διασύνδεσης B-Tech BT7564/B VESA 600 x 400

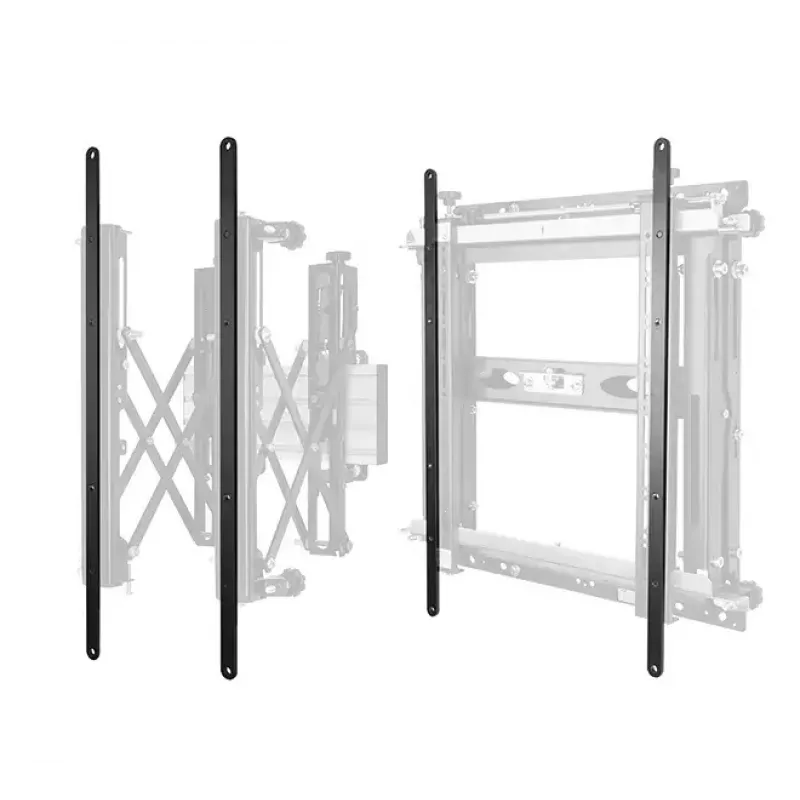

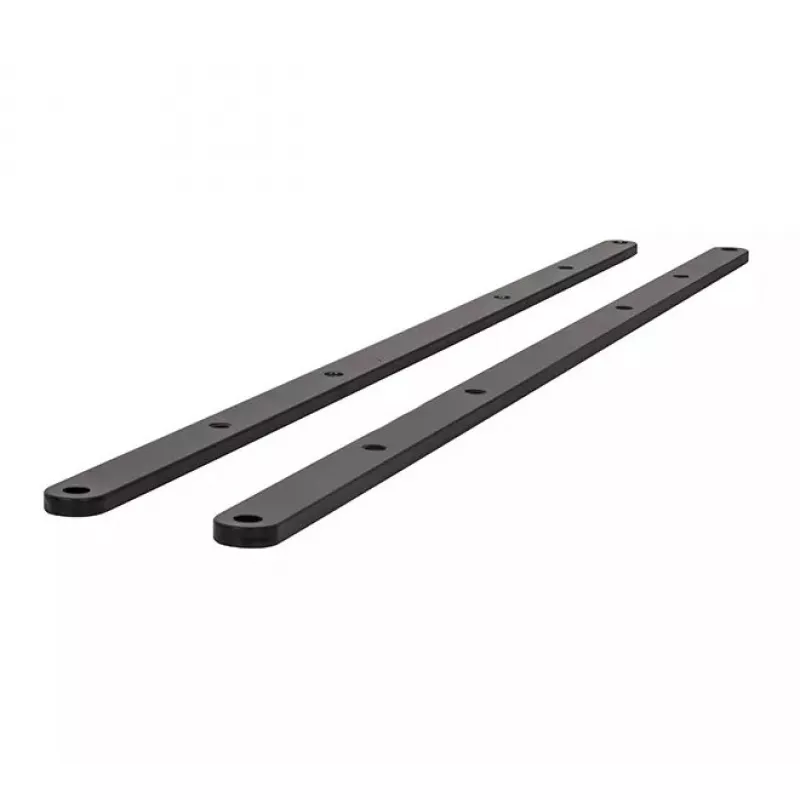

The B-Tech BT7564/B interface adapter arm increases the VESA mounting pattern of smaller mounts to fit larger displays, converting VESA 400 fixings to VESA 600. With a width of 620 mm, depth of 6 mm and height of 20 mm, this slim black adapter arm keeps installation depth to a minimum while providing a stable connection between the display and compatible B-Tech mounting products.

Advantages

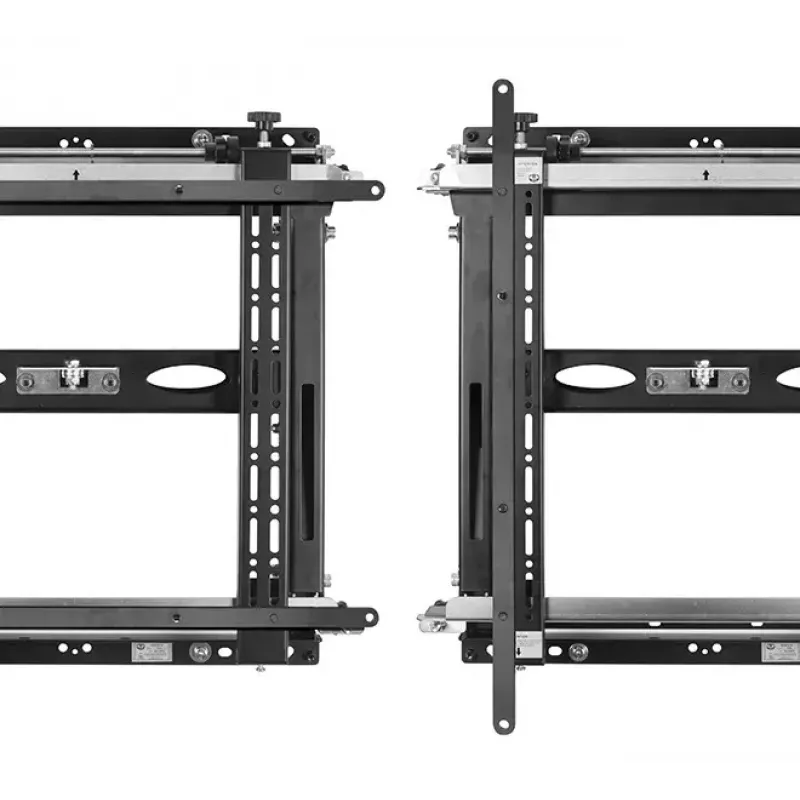

The adapter arm is ultra-slim to reduce overall install depth and is compatible with a wide range of existing B-Tech products including BT8310, BT8311 and System X interface arms. All necessary mounting hardware is included, enabling straightforward installation and reliable VESA pattern conversion without modifying the primary mount.

Suitable for

• Converting VESA 400 mounts to VESA 600
• Mounting larger screens on existing smaller interface arms
• Use with B-Tech mounts such as BT8310, BT8311 and System X

Key specifications

• Model: BT7564/B
• VESA compatibility: converts 400 to 600 (600 x 400)

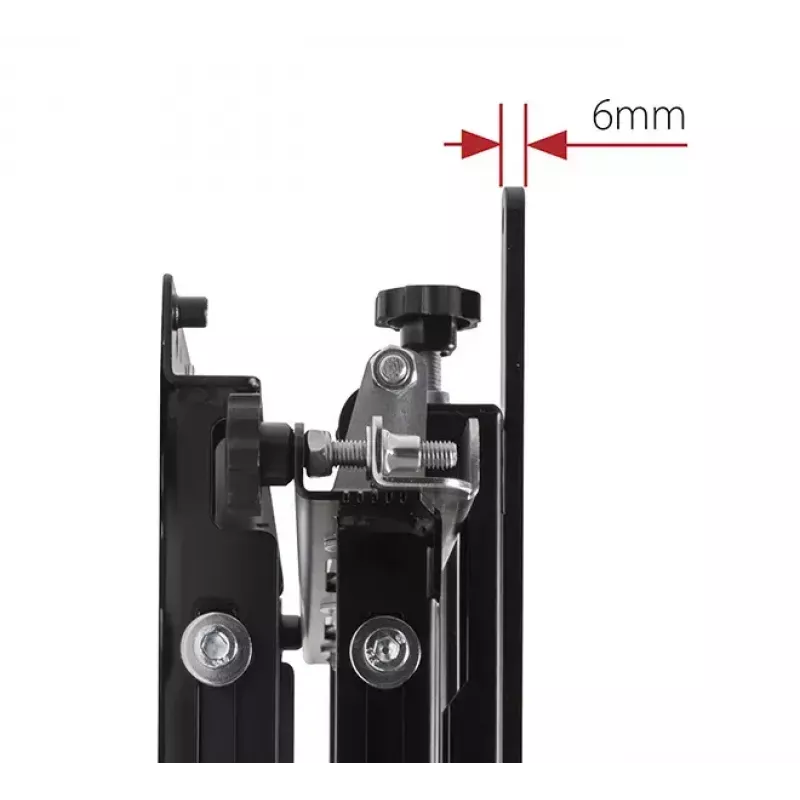

• Dimensions: width 620 mm, depth 6 mm, height 20 mm
• Colour: black
• Manufacturer: B-TECH (MPN BT7564/B, EAN 5019318079542)
• Includes all mounting hardware

How to use

Attach the BT7564/B adapter arm to the existing mount using the supplied hardware, aligning the adapter with the mount's VESA 400 fixing points. Secure the adapter to the mount, then attach the display to the adapter at the VESA 600 pattern. Ensure all bolts are tightened to the manufacturer's recommended torque and verify the display is level and secure before use.

Recommendations

Use the adapter with compatible B-Tech interface arms (for example BT8310, BT8311 or System X) and check the combined weight rating of the adapter and existing mount against the display weight. For safety, follow the mount manufacturer's installation guidelines and regularly inspect fastenings.
