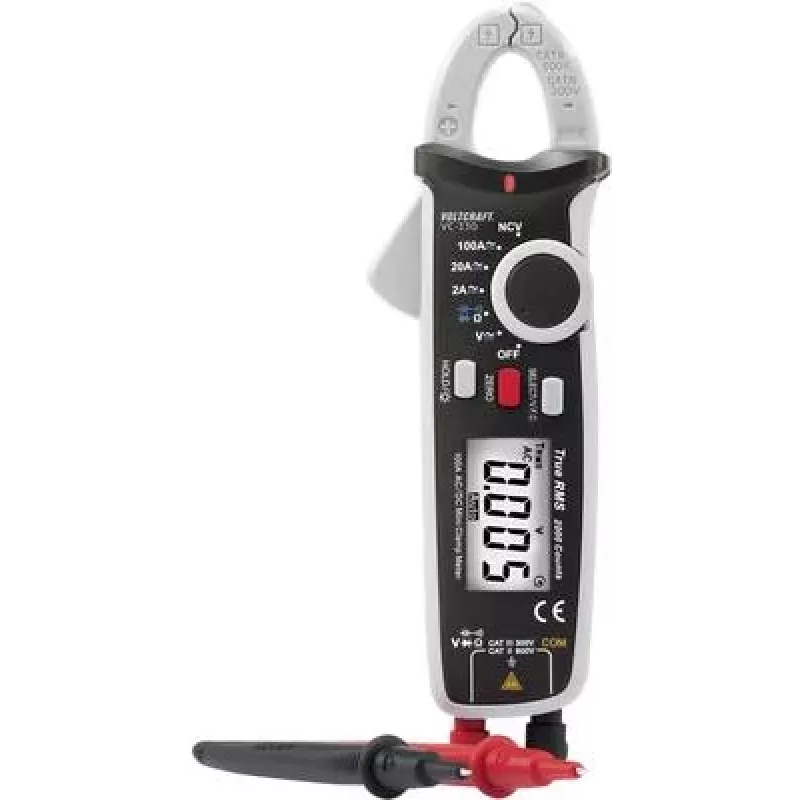

VOLTCRAFT VC-330 Ψηφιακό Αμπερόμετρο Τσιμπίδας CAT II 600 V, CAT III 300 V, 2000 Counts

The VOLTCRAFT VC-330 digital clamp meter stands out with its ability to measure both AC and DC current up to 400 A without breaking the circuit, thanks to its 30 mm jaw opening. It combines a 2000-count LCD with auto-ranging, data hold, and auto power-off for efficient troubleshooting in electrical installations.

Highlights

• AC/DC current measurement up to 400 A via clamp
• AC/DC voltage up to 600 V, resistance up to 20 MΩ
• Continuity test with buzzer and diode test
• Safety rated CAT II 600 V, CAT III 300 V
• Data hold, auto power-off, and low battery indicator

In daily use

The VC-330 is suitable for electricians and technicians who need a reliable clamp meter for current measurements in panels and conductors. The auto-ranging function and clear LCD make readings straightforward, while the compact design and battery operation allow for use in tight spaces.

Full specifications

• Display: LCD, 2000 counts
• AC current range: 0.1 A - 400 A
• DC current range: 0.1 A - 400 A
• AC voltage range: 0.1 V - 600 V
• DC voltage range: 0.1 V - 600 V
• Resistance range: 0.1 Ω - 20 MΩ
• Jaw opening: 30 mm
• Power supply: 2x AAA batteries (1.5 V)
• Frequency range (AC): 40 - 400 Hz
• Measurement principle: Average sensing

Final note

The VC-330 offers essential clamp meter functions with CAT III 300 V safety rating, making it a practical tool for everyday electrical measurements.
