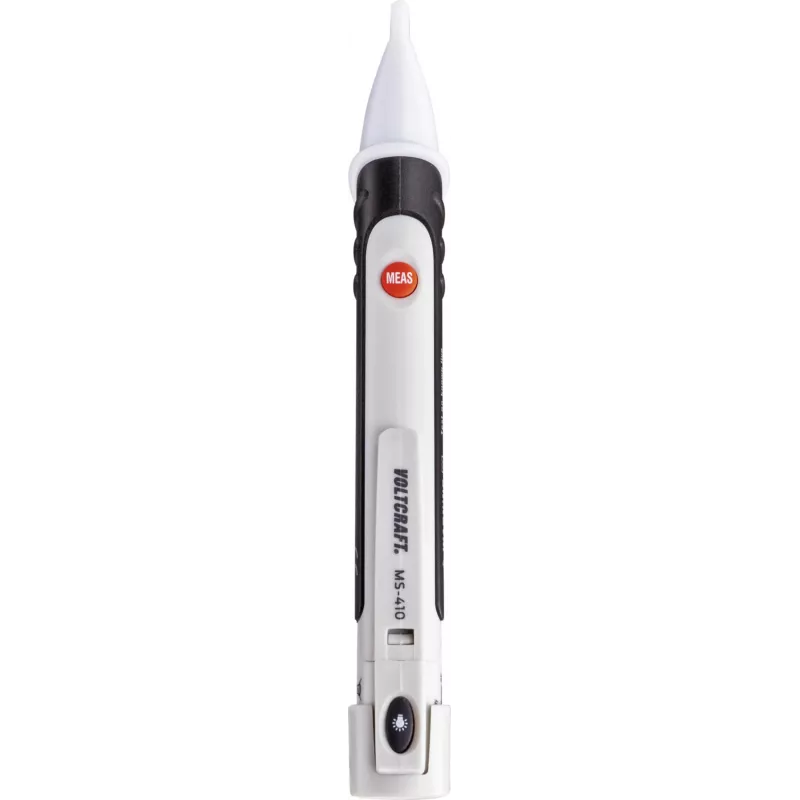

VOLTCRAFT MS-410 Μετρητής μαγνητικού πεδίου (VC-10906910)

Magnetic fields are invisible, yet they can disrupt sensitive equipment, damage magnetic media, or indicate faulty electrical installations. The VOLTCRAFT MS-410 Magnetic Field Tester gives you a fast, reliable way to measure DC and AC magnetic flux density in millitesla or gauss, so you can identify problem areas before they cause failures.

Who is it for

This handheld meter is ideal for electricians, maintenance technicians, quality inspectors, and anyone working with electromagnets, permanent magnets, motors, transformers, or magnetic shielding. It is also useful for checking residual magnetism in machined parts or verifying compliance with EMC guidelines.

Main features

• Measures DC magnetic fields up to 3000 mT and AC fields up to 1500 mT
• Selectable units: millitesla (mT) or gauss (G)
• Integrated Hall sensor for accurate axial measurements
• Data hold, max/min hold, and zero adjustment functions
• Auto power off to conserve battery life
• Clear 3½-digit LCD display
• Compact and lightweight, fits easily in a tool bag

Specifications

• Measurement range (DC): 0–3000 mT (0–30000 G)
• Measurement range (AC): 0–1500 mT (0–15000 G)
• Resolution: 0.1 mT (1 G)
• Accuracy: ±(5% + 10 digits)
• Frequency range (AC): 40 Hz – 500 Hz
• Sensor type: Integrated Hall sensor
• Display: 3½-digit LCD
• Power supply: 9V block battery (6F22)
• Battery life: approx. 100 hours
• Operating temperature: 0 to 50 °C
• Operating humidity: < 80% RH
• Safety standard: EN 61326-1
• Measurement direction: Axial

Tips

For best results, hold the meter steady and align the sensor perpendicular to the field being measured. Use the zero adjustment before each session to compensate for ambient magnetic fields. When measuring AC fields, ensure the frequency is within the specified range to maintain accuracy.
