VOLTCRAFT ενδοσκόπιο USB BS-17+ 8 mm καλώδιο, 93 cm, VGA, LED, IP67

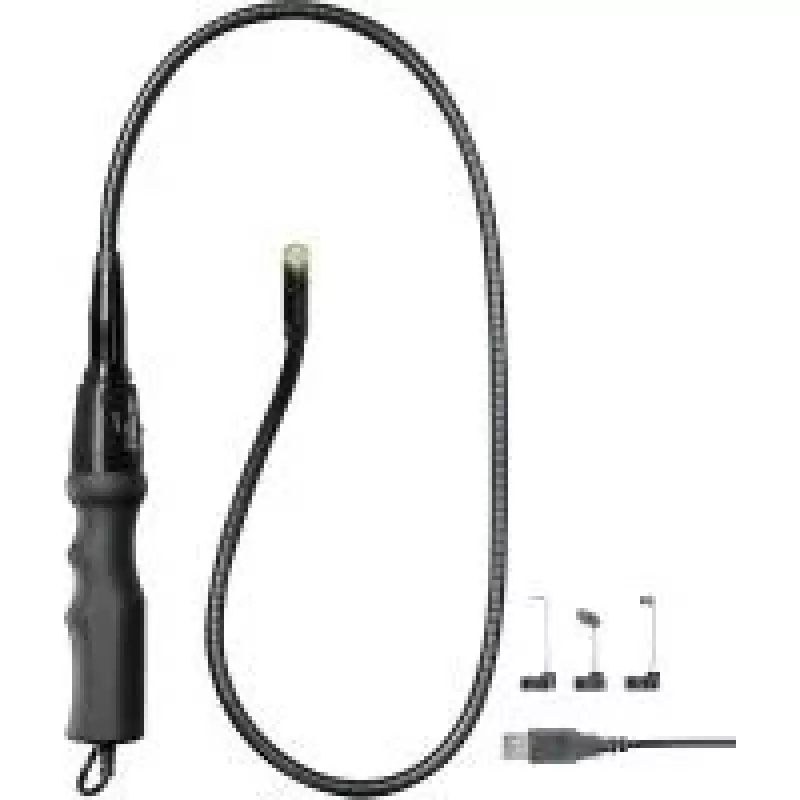

Inspect hard-to-reach areas with the VOLTCRAFT USB Endoscope BS-17+. This flexible 8 mm camera probe with 93 cm cable connects to your Windows PC via USB 2.0, giving you live VGA video and image capture. Four dimmable white LEDs illuminate dark cavities, while the manual focus and 60° field of view provide clear detail from 30 to 80 mm. The IP67-rated probe is waterproof, making it suitable for automotive, plumbing, and building inspections. Included mirror, hook, and magnet attachments extend its versatility. Powered directly from the USB port, no batteries needed.

Key specifications

• Probe diameter: 8 mm
• Probe length: 93 cm
• Camera resolution: 640 x 480 pixels (image and video)
• Frame rate: 30 fps
• Illumination: 4 dimmable white LEDs
• Focus: Manual, adjustable
• Field of view: 60°
• Depth of field: 30 - 80 mm
• Sensor: CMOS
• Connectivity: USB 2.0
• Probe protection: IP67 waterproof
• Operating temperature: 0 to +45 °C
• Compatibility: Windows XP/Vista/7/8/10
• Included accessories: Mirror, hook, magnet

Why choose it

The BS-17+ offers a practical balance of probe size and flexibility. The 8 mm diameter fits into many openings while remaining rigid enough for precise positioning. Dimmable LEDs allow you to adjust lighting to avoid glare, and the manual focus ensures sharp images at close range. With USB connectivity, it's a cost-effective inspection tool for occasional use.

Ideal use cases

• Automotive: Inspect engine cylinders, behind dashboards, and inside body panels.
• Plumbing: Examine pipe interiors and locate blockages.
• HVAC: Check ductwork and behind appliances.
• Building maintenance: Look inside walls and ceilings.

Good to know

The probe is IP67 rated, meaning it can withstand temporary immersion in water. The included attachments—mirror, hook, and magnet—help retrieve small objects or view around corners. The device draws power from the USB port, so no external power supply is required.
