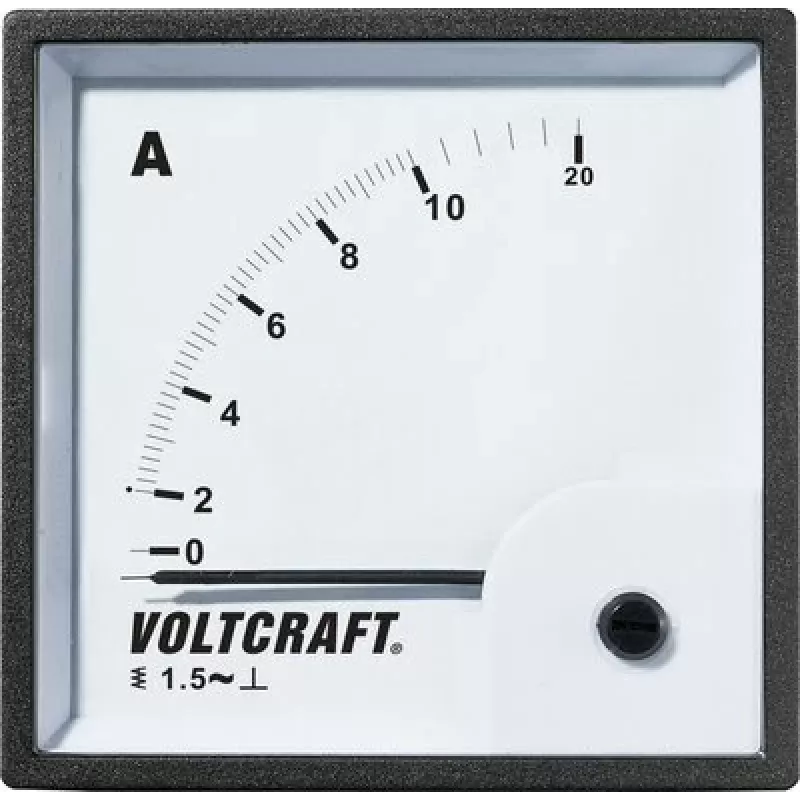

VOLTCRAFT AM-72X72/10A Αναλογικό Αμπερόμετρο Εντοιχισμού 10A AC Σιδηροκινητικό

Analog panel ammeter for direct AC current measurement up to 10 A. The moving iron movement ensures reliable RMS indication even with distorted waveforms, making it ideal for monitoring industrial loads and power distribution circuits.

Advantages

The AM-72X72/10A offers a robust and precise solution for current monitoring. Its moving iron principle provides true RMS measurement, essential for non-sinusoidal currents. The large 72 x 72 mm front panel with clear linear scale allows easy reading from a distance. The meter is built to withstand harsh environments with an IP52 front protection, ensuring durability in industrial settings. Installation is straightforward with a standard 68 x 68 mm panel cutout and screw terminals for secure connections.

Suitable for

• Industrial control panels
• Power distribution boards
• Generator monitoring
• Laboratory test equipment
• Any application requiring AC current indication

Key specifications

• Measurement range: 0 - 10 A AC
• Accuracy class: 1.5
• Moving iron movement for true RMS
• Front panel dimensions: 72 x 72 mm
• Panel cutout: 68 x 68 mm
• Mounting depth: 60 mm
• Operating frequency: 15 - 100 Hz
• Overload capacity: 1.2x continuous, 10x for 0.5s
• Front protection: IP52
• Operating temperature: -25 to +55 °C
• Complies with EN 60051

Recommendations

For reliable AC current monitoring in industrial environments, the VOLTCRAFT AM-72X72/10A is an excellent choice. Its moving iron design ensures accurate readings even with non-sinusoidal loads, and the robust construction guarantees long-term performance. Pair with appropriate current transformers for higher current ranges if needed.
