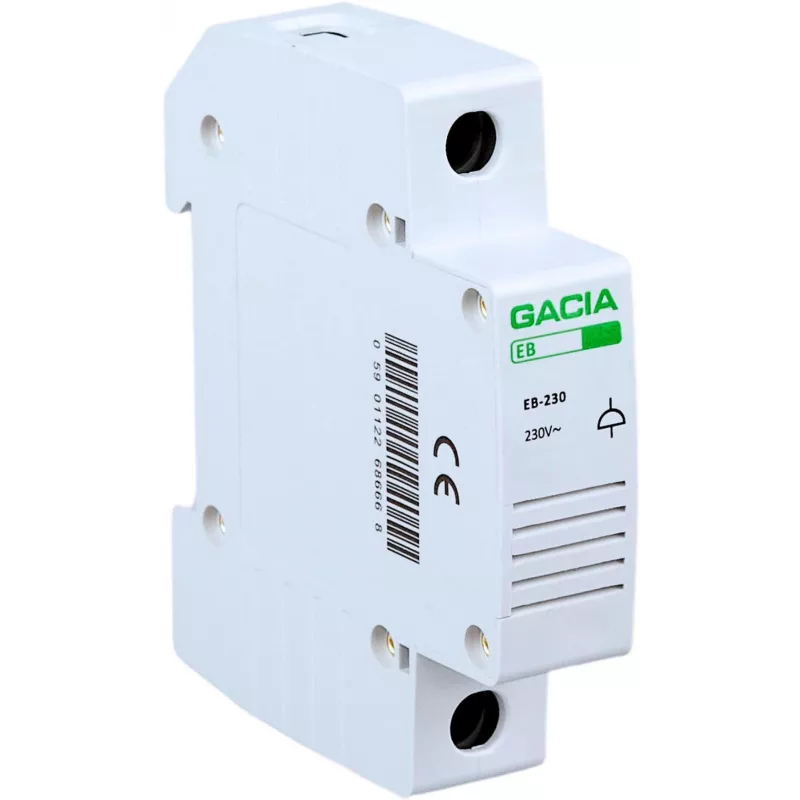

VCX BELL Κουδούνι Μονάδας για Ράγα DIN 230V AC 85dB

Modular bell for DIN rail mounting, delivering an 85 dB continuous tone to ensure reliable acoustic signaling in residential and commercial installations. Operating on 230V AC, this compact 1-module device integrates seamlessly into distribution boards and control panels, providing a clear alert for doorbells, alarms, and general signaling applications.

Advantages

The VCX BELL combines robust construction with effortless installation. Its self-extinguishing thermoplastic housing guarantees safety, while the screw terminals accept conductors up to 2.5 mm² for secure wiring. With a mechanical endurance of over 10,000 operations, it offers long-term dependability. The IP20 protection rating suits indoor environments, and the light grey finish blends unobtrusively with standard electrical enclosures.

Suitable for

• Doorbell signaling in homes and apartments
• Alarm indication in commercial buildings
• Status alerts in industrial control panels
• Audible notification in access control systems

Key specifications

• Nominal voltage: 230V AC, 50/60 Hz
• Sound level: 85 dB at 1 meter
• Power consumption: 3 VA
• Module width: 1 module (18 mm)
• Housing material: self-extinguishing thermoplastic
• Protection degree: IP20
• Operating temperature: -5°C to +40°C
• Terminal capacity: 2.5 mm²
• Compliance: EN 60669-1

Recommendations

For optimal performance, install the VCX BELL in a dry indoor location within a distribution board or enclosure. Ensure the supply voltage matches 230V AC and use appropriate cable sizes up to 2.5 mm². Pair with a compatible push button or control relay to activate the bell as needed.
