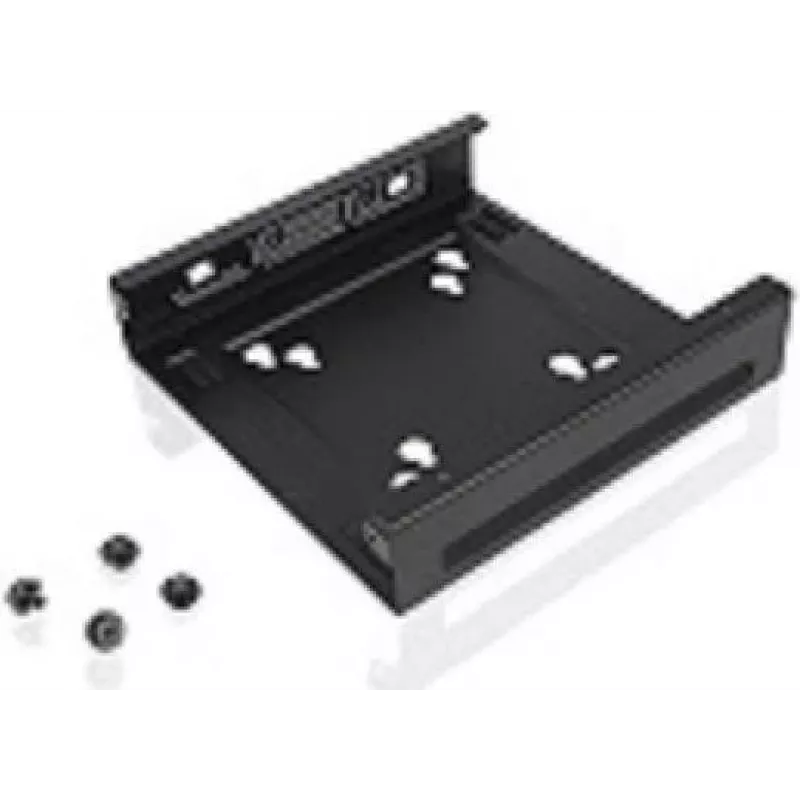

Βάση VESA Lenovo ThinkCentre Tiny VESA Mount II 01EF310 – συμβατή με Tiny-PCs, βάση τοποθέτησης VESA

Lenovo ThinkCentre Tiny VESA Mount II is a compact VESA-compatible mounting bracket designed to attach Tiny form-factor PCs securely to the back of monitors, monitor arms or wall mounts that follow VESA standards. The bracket supports space-saving placement of compatible small desktop systems, keeps the PC out of the way, and helps maintain an organized workspace by enabling tidy cable routing and a clean installation behind displays.

Advantages

The mount offers a stable mechanical connection to VESA mounting points and is engineered for reliable support of Tiny-class desktop systems without interfering with ports or cooling. Its low-profile design minimizes added depth behind the display and helps conceal the system for a neater appearance. Installation is straightforward and reversible, allowing the PC to be removed for service or repositioning as needed.

Suitable for

• Attaching Tiny form-factor PCs to the back of VESA-compatible monitors
• Mounting compact systems on monitor arms or articulating mounts
• Space-saving workstation setups in offices and call centres
• Retail displays, kiosks and digital signage with integrated small PCs
• Environments requiring tidy cable routing and reduced desk clutter

Key specifications

• VESA compatibility: designed to mate with standard VESA mounting patterns on monitors and arms
• Form factor support: intended for Tiny-class desktop systems and other compact PCs with compatible mounting points
• Construction: metal bracket designed for stable support and longevity
• Profile: low-profile design to reduce rear offset from the display
• Installation: tool-assisted mounting with provision for secure fastening and removable service access

How to use

Attach the bracket to the compatible Tiny PC following the product’s alignment points, then fasten the assembly to the monitor or arm using the corresponding VESA screw holes. Ensure all fasteners are tightened to prevent movement, and route cables through available openings or clips to maintain clearance for ventilation and port access. When service is required, unfasten the bracket from the display to access the PC for maintenance or replacement.

Recommendations

Verify that the monitor or arm supports the same VESA pattern and can bear the combined weight of the bracket and installed PC. Maintain recommended airflow clearance around the Tiny PC and avoid covering ventilation openings. Use appropriate screws for the specific VESA plate thickness and follow mounting hardware torque recommendations to ensure a secure installation.
