Βάση οθόνης LogiLink BP0086 81,3 cm (32 ίντσες) γραφείου ασημί

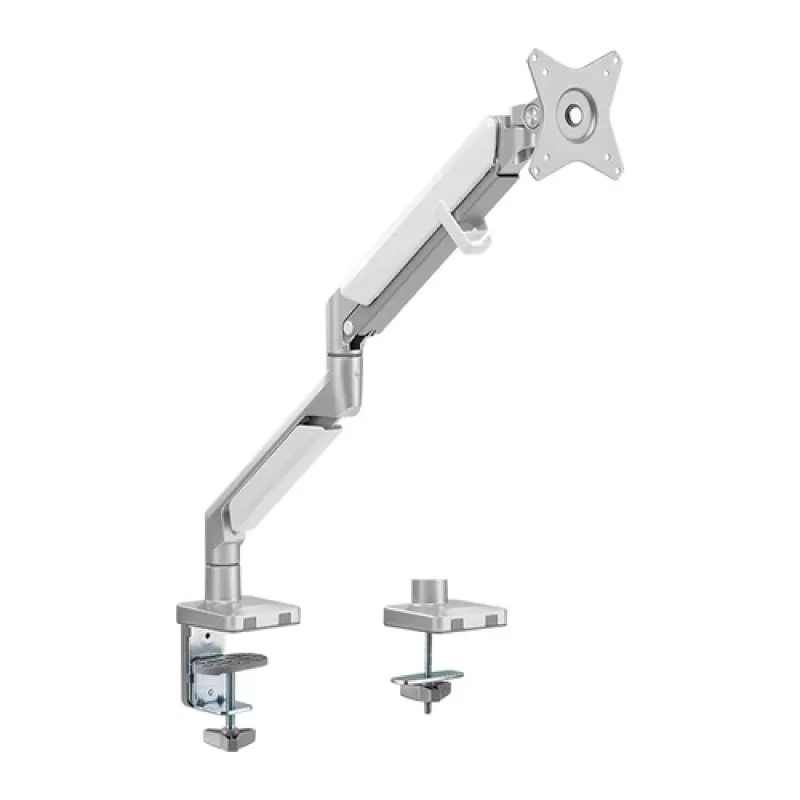

The LogiLink BP0086 monitor mount clamps directly to your desk and supports flat and curved screens from 43.2 cm (17") to 81.3 cm (32") with a maximum weight of 9 kg. It provides height adjustment and offers a wide range of motion — tilt, swivel and rotation — to improve viewing ergonomics while a built-in 180° swivel stop protects monitors from nearby walls. Compatible with VESA 75 x 75 mm and 100 x 100 mm mounting patterns, the silver BP0086 is a compact desk solution for single-monitor setups.

Advantages

The BP0086 offers stable desk mounting, full freedom of movement including tilt (-40° to 40°), swivel (-90° to 90°) and rotation, plus height adjustment for ergonomic positioning. Its 9 kg load capacity and support for VESA 75 x 75 and 100 x 100 ensure compatibility with most 17"–32" monitors. A built-in 180° swivel stop prevents contact with adjacent walls, increasing safety in tight workspaces.

Suitable for

• Home office and corporate desks
• Single-monitor workstations with 17"–32" screens
• Flat and curved display installations
• Users who need adjustable height and wide tilt/swivel range

Key specifications

• Supported screen sizes: 43.2 cm (17") to 81.3 cm (32")
• Maximum weight capacity: 9 kg
• VESA compatibility: 75 x 75 mm and 100 x 100 mm
• Tilt range: -40° to 40°
• Swivel range: -90° to 90° with 180° swivel stop
• Number of displays supported: 1
• Colour: Silver

How to use

Clamp the mount to the edge of a stable desk following the included hardware and instructions. Attach the monitor to the VESA plate using the appropriate screws for 75 x 75 mm or 100 x 100 mm patterns. Adjust height, tilt, swivel and rotation to the desired ergonomic position. Use the built-in swivel stop if the monitor is close to a wall to prevent over-rotation.

Recommendations

Check monitor weight and VESA hole pattern before installation to ensure compatibility with the BP0086. Tighten all fasteners securely and make incremental adjustments to achieve comfortable viewing angles while maintaining safe load limits.
