Βάση τοίχου B-Tech BT7510-PRO εξαιρετικά επίπεδη οθόνη

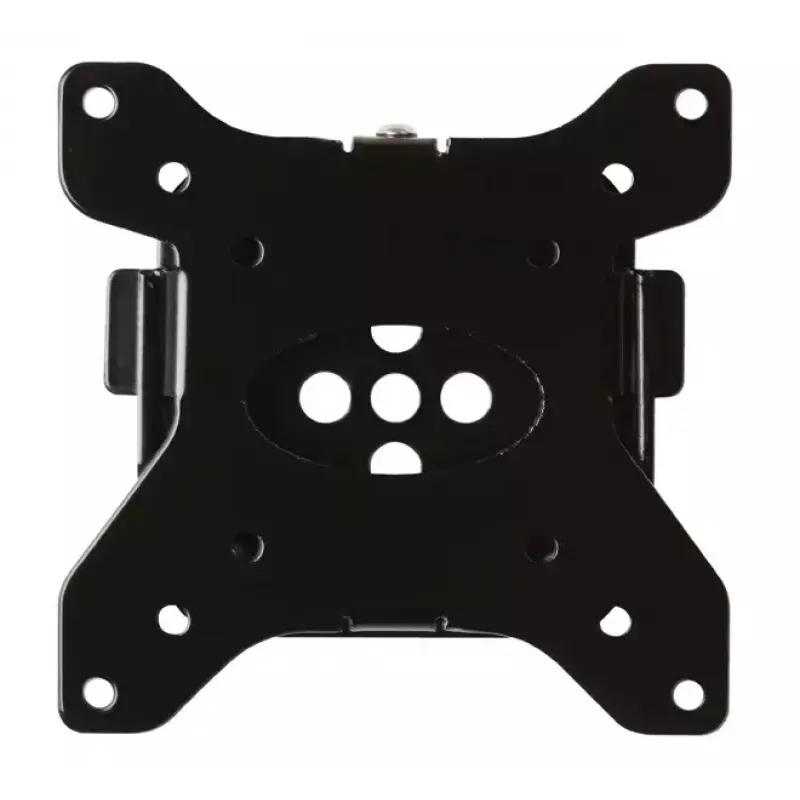

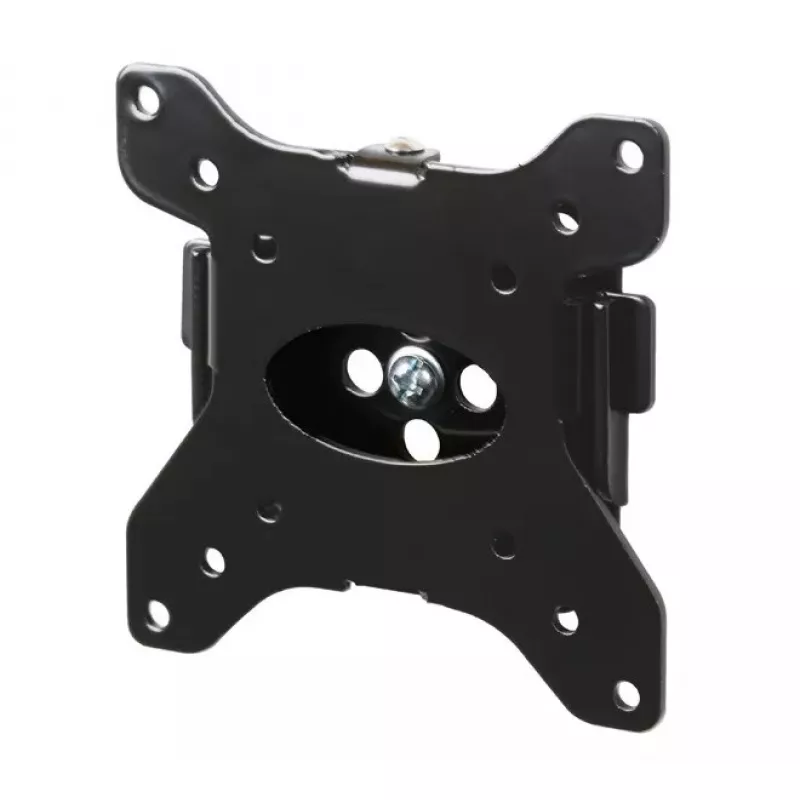

The B-Tech BT7510-PRO Ultra-slim Flat Screen wall mount is designed for small flat screens up to 28" (71.1 cm) and supports a maximum weight of 20 kg. This fixed, ultra-slim mount positions the display just 15 mm (1.5 cm) from the wall and is compatible with VESA sizes from 50 x 50 mm to 100 x 100 mm. Finished in black, the bracket provides a discreet, low-profile installation and is compatible with B-Tech poles and collars for alternative mounting options.

Advantages

The mount offers a minimal profile so the screen sits close to the wall while maintaining secure support for displays up to 20 kg. The integrated OWLS wall-levelling system simplifies alignment during installation, and a supplied security screw helps prevent unauthorized removal of the screen. Compatibility with B-Tech poles and collars increases mounting flexibility.

Suitable for

• Small TVs and monitors up to 28" and 20 kg
• Displays with VESA 50 x 50 mm to 100 x 100 mm

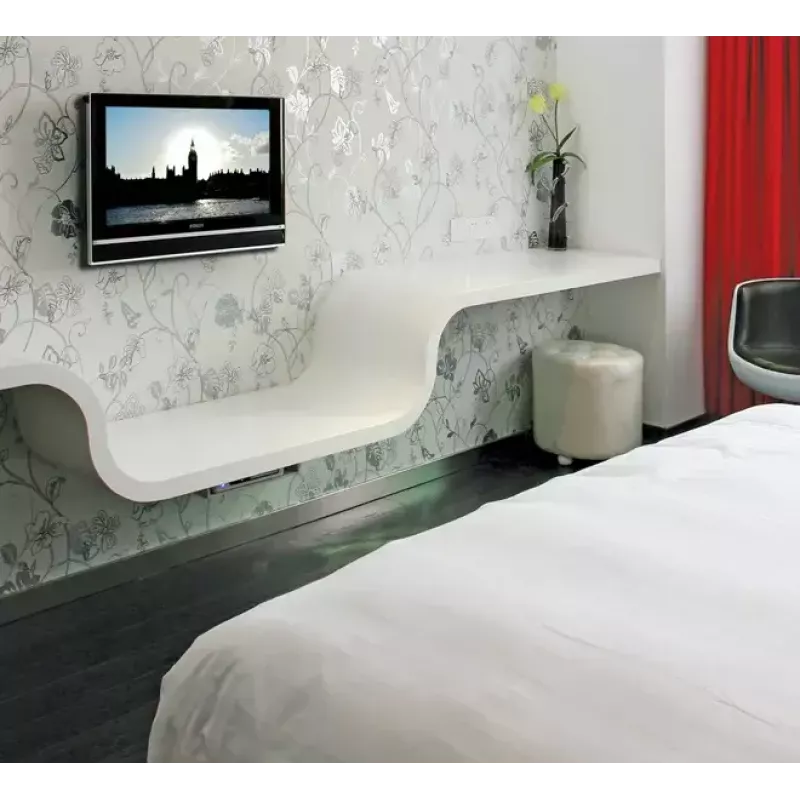

• Fixed, low-profile wall installations in homes, offices, or public areas

Key specifications

• Maximum screen size: 28" (71.1 cm)
• Maximum weight capacity: 20 kg
• VESA compatibility: 50 x 50 mm to 100 x 100 mm

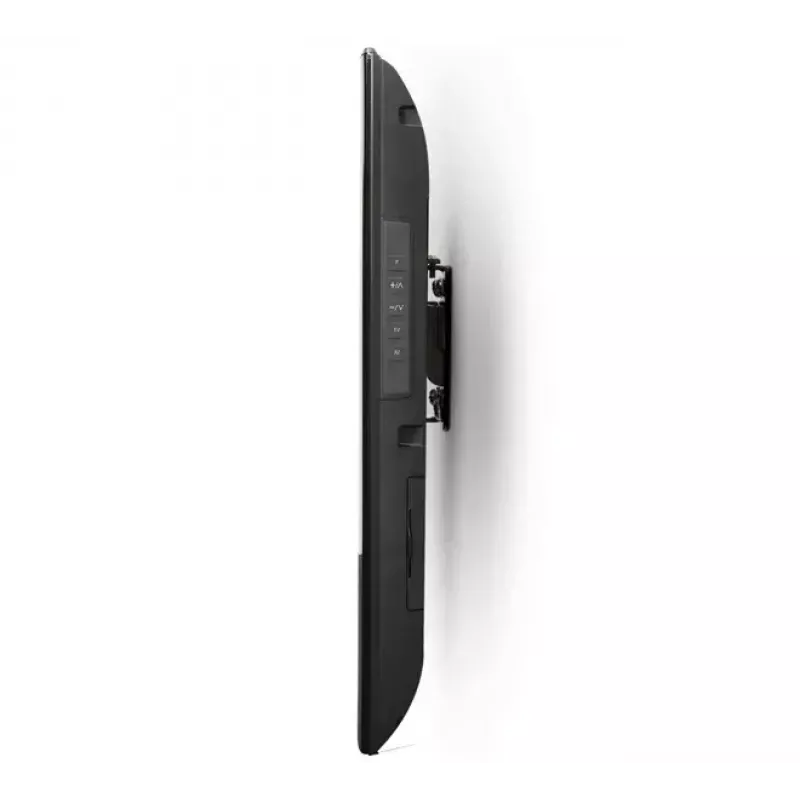

• Distance to wall: 15 mm (1.5 cm)
• Colour: Black
• Model/MPN: BT7510-PRO/B

How to use

Mount the wall plate to a suitable, load-bearing surface following the supplied instructions and using appropriate fixings for your wall type. Attach the screen to the bracket using the correct VESA holes and fasteners, adjust the OWLS levelling system to achieve a straight alignment, then secure the display with the provided security screw to reduce the risk of unauthorized removal.

Recommendations

Check the display's weight and VESA pattern before installation, and use wall fixings rated for the combined load. If mounting to plasterboard or hollow walls, use suitable anchors or fit the bracket to a stud. If unsure, consult a qualified installer.
