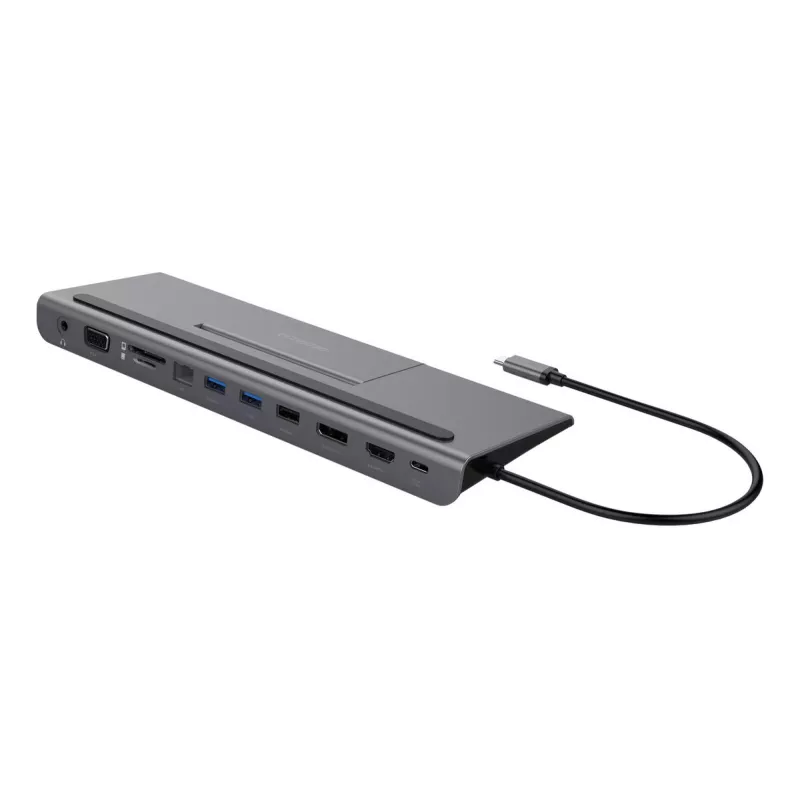

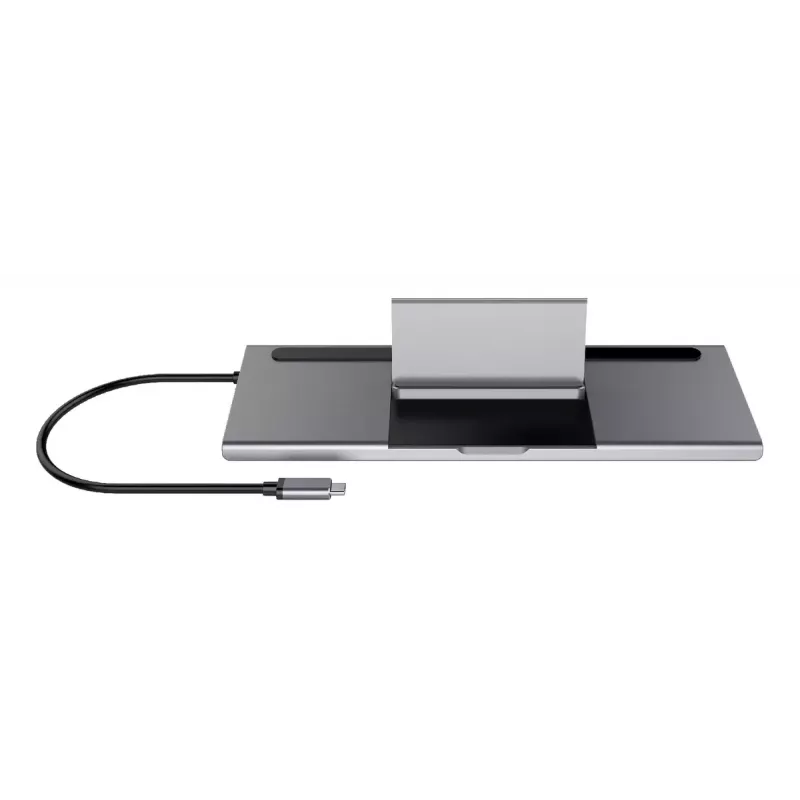

Βάση σύνδεσης laptop Deltaco USBC-DOCK2 ενσύρματη USB 3.2 Gen 1 Type-C γκρι

The Deltaco USBC-DOCK2 is a wired USB 3.2 Gen 1 Type-C laptop dock that expands a computer's connectivity. Connect the dock to a free USB-C port on your laptop to access one USB-C port, three USB-A ports, SD and microSD card readers, an RJ45 Ethernet port, DisplayPort, HDMI, VGA and a 3.5 mm jack that supports mic and headset. The dock supports connection of up to three 1080p external monitors and delivers up to 85 W USB-C Power Delivery for charging compatible laptops and mobile devices.

Advantages

The dock combines multiple ports in a single grey aluminium-coloured unit for improved workspace organization. It supports wired Gigabit Ethernet (1000 Mbit/s) and offers flexible video output options (DisplayPort, HDMI and VGA) to connect older and newer monitors. Built-in SD and microSD card readers and three USB 3.2 Gen 1 Type-A ports provide convenient data transfer, while 85 W Power Delivery supplies fast charging to USB-C laptops and peripherals.

Suitable for

• Office laptops requiring extra ports and Gigabit Ethernet
• Home workstations that need multiple monitor support (up to three 1080p displays)
• Photographers and content creators who use SD/microSD cards
• Users who need both modern and legacy monitor connections (HDMI, DisplayPort, VGA)

Key specifications

• Model: Deltaco USBC-DOCK2
• Connectivity: Wired USB 3.2 Gen 1 Type-C
• USB ports: 1× USB-C, 3× USB-A (USB 3.2 Gen 1)
• Video outputs: DisplayPort, HDMI, VGA (supports up to three 1080p monitors)
• Card readers: SD and microSD
• Ethernet: 1× RJ45 (1000 Mbit/s)
• Audio: 3.5 mm jack (mic and headset)
• Power Delivery: up to 85 W USB-C
• Colour: Grey
• MPN: USBC-DOCK2, EAN: 7333048057112

How to use

Connect the Deltaco USBC-DOCK2 to a free USB-C port on your laptop. Plug external monitors into the DisplayPort, HDMI and VGA outputs as required; the dock can drive up to three 1080p displays. Insert SD or microSD cards into the respective readers for file transfer. Connect network cable to the RJ45 port for wired Ethernet and attach headphones or a headset to the 3.5 mm jack. Use the USB-C port and USB-A ports to connect peripherals such as external drives, keyboard and mouse. Ensure your laptop supports video output over USB-C (DisplayPort Alt Mode) when using external displays.

Recommendations

For reliable multi-monitor operation, use quality display cables and verify that your laptop's USB-C port supports DisplayPort Alt Mode. To achieve the best charging performance, connect a power adapter capable of delivering sufficient power to the dock if required by your laptop model.
