Βάση στήριξης ιστού Schwaiger LWHT7050 513 Μαύρο

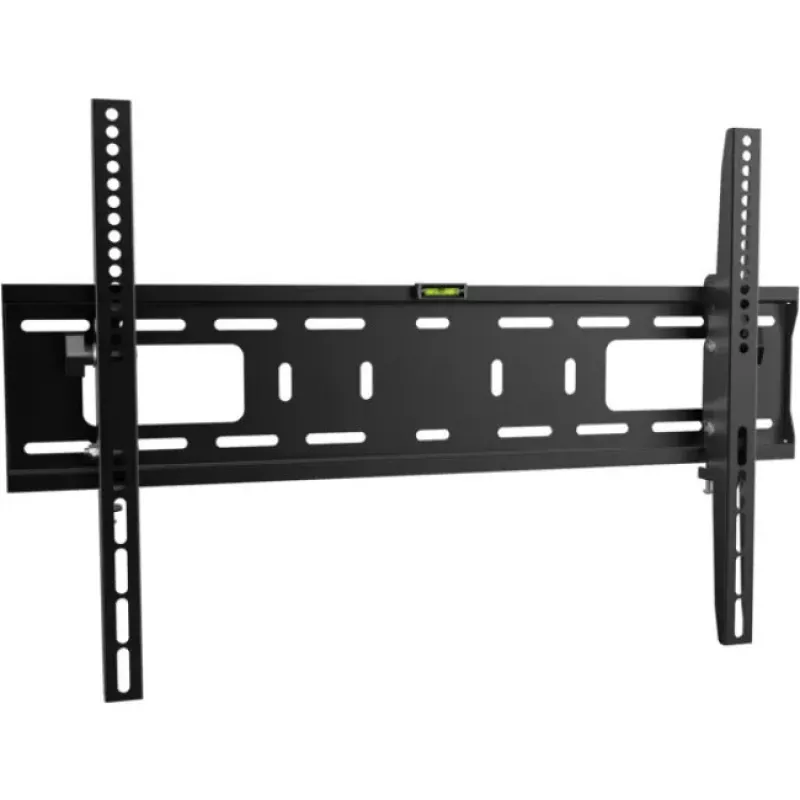

The SCHWAIGER® Wall Mount Bracket LWHT7050 513 is designed for securely mounting large flat-screen TVs. It supports VESA mounting patterns from 200 x 200 mm up to 600 x 400 mm and holds screens weighing up to 50 kg. The mount has two support arms, an integrated bubble level for precise alignment of the mounting rail and a slim black finish that suits home and office interiors.

Advantages

This wall mount offers high mechanical strength and a detachable screen feature that allows the display to be removed from the bracket when needed. The tilt function provides an adjustable viewing angle between +5° and -10°, and the integrated bubble level simplifies installation. The bracket is lightweight (approx. 2.3 kg) while supporting a single display up to the specified weight and VESA range.

Suitable for

• Mounting large flat-screen TVs in living rooms
• Installing displays in offices and meeting rooms
• Use where VESA patterns from 200 x 200 to 600 x 400 mm are required
• Situations requiring a tilt adjustment of +5° to -10°

Key specifications

• Brand: SCHWAIGER
• Model: LWHT7050 513
• Maximum VESA mount: 600 x 400 mm (supports from 200 x 200 mm)
• Maximum weight capacity: 50 kg
• Weight: 2.3 kg
• Number of displays supported: 1
• Colour: Black
• Tilt range: +5° to -10°

How to use

Position the mounting rail on a suitable solid wall and use the integrated bubble level to align it horizontally. Fix the rail to the wall following the load-bearing recommendations for your wall type (appropriate screws and anchors not included). Attach the bracket arms to the TV according to the TV's VESA pattern, then hang the TV on the rail and secure it. Adjust the tilt within the +5° to -10° range to obtain the optimal viewing angle. The screen can be detached from the mount when service or repositioning is needed.

Recommendations

Ensure the wall structure and fasteners used are rated for the TV weight (up to 50 kg). Verify VESA compatibility before installation and follow local building codes. Use appropriate tools and, if uncertain, seek professional installation to guarantee secure mounting.
