Βάση προβολέα Multibrackets M Projector Mount Short Throw Deluxe 300-700 Medium Βάση τοίχου 25 kg Λευκό

The Multibrackets M Projector Mount Short Throw Deluxe 300-700 Medium is a wall mount designed for short-throw projectors. It provides a compact, white metal mounting solution that positions the projector above the audience while saving floor space. The mount supports short-throw models and ships fully assembled for faster installation.

Advantages

The mount supports a wide adjustment range (distance between wall and mounting plate centered 325–740 mm) and a +/-5° tilt for fine aiming. Its compact design fits most short-throw projectors on the market and the built-in fine-tune adjustment lets you position the projector precisely to compensate for different projector weights. The product includes a wall plate and all necessary mounting hardware and is rated to support projector loads up to 25 kg.

Suitable for

• Home theaters with short-throw projectors
• Classrooms and meeting rooms requiring ceiling-level projection from a wall mount
• AV installations where saving floor space and neat cable routing are important

Key specifications

• Mounting type: Wall
• Compatible projector placement: Short throw

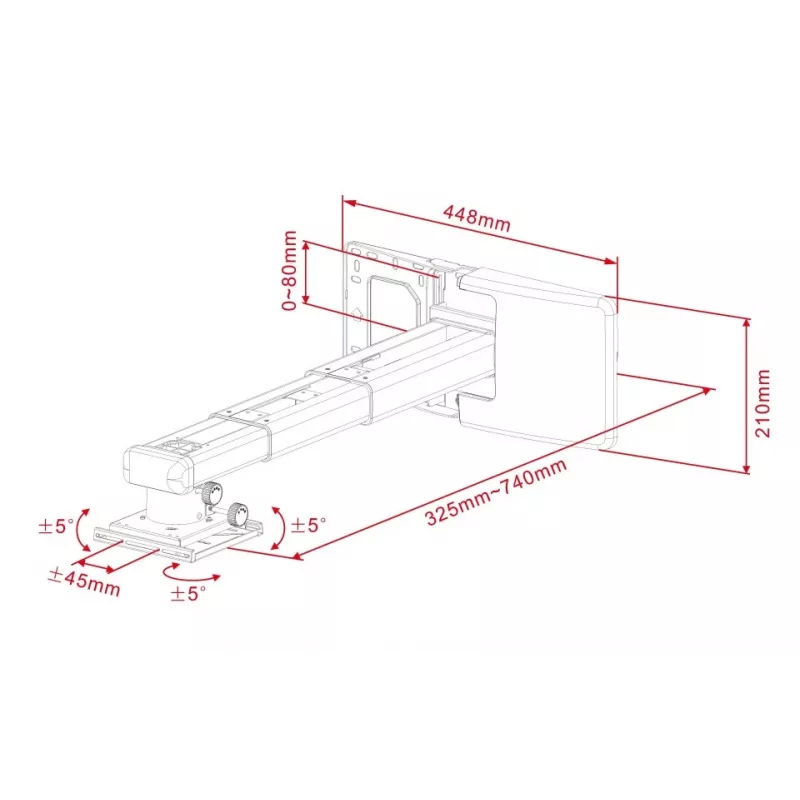

• Distance from wall (centered): 325–740 mm
• Tilt adjustment: +/-5°
• Maximum supported load: 25 kg
• Product colour: White

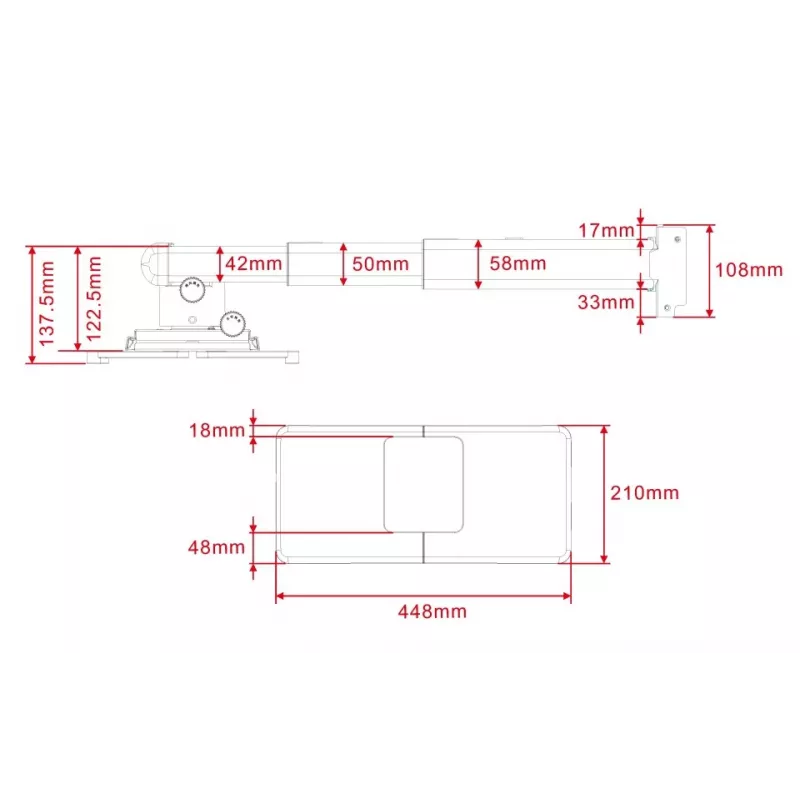

• Dimensions (W×H×D): 448 × 210 × 325 mm
• Weight (packaged): 3 kg
• Brand: MULTIBRACKETS, MPN MB-9833, EAN 7350022739833

How to use

Attach the wall plate to a suitable solid wall using the included hardware and appropriate wall anchors for your surface. Mount the adjustable arm to the plate and fix the projector to the included projector bracket, centering it on the mounting plate. Adjust the extension to position the projector within the 325–740 mm range from the wall and use the +/-5° tilt and fine-tune adjustment to achieve the correct image alignment. Verify all fasteners are tight and test the projector image before finalizing cable routing.

Recommendations

Install on load-bearing walls or secure to proper structural supports; consult a qualified installer if mounting to drywall without studs. Use the built-in fine-tune adjustment after the projector is powered and warm for best alignment stability. Do not exceed the 25 kg maximum load.
