Βάση οθόνης Hagor 8714 32,8 cm (12,9 ίντσες) μαύρη τοίχου

The Hagor 8714 wall monitor mount is designed for single displays with screen diagonals from 24.6 cm (9.7") up to 32.8 cm (12.9"). Its compact black construction provides a secure VESA-compatible interface for mounting monitors with 75 x 75 mm or 100 x 100 mm hole patterns. The mount offers adjustable swivel and tilt ranges to help position the screen for ergonomic viewing while keeping the profile close to the wall.

Advantages

This wall mount supports one display and is suitable for compact monitors and small all-in-one systems. The VESA compatibility covers the most common small-screen patterns, and the mechanical swivel of -10° to 10° together with a wide tilt range of -90° to 90° enables flexible screen orientation. The black finish is unobtrusive and integrates with office or home interiors. The product is built to provide a stable hold while allowing smooth adjustments.

Suitable for

• Mounting a single small monitor or tablet-like display (up to 12.9") on a wall
• Space-saving installations in offices, reception areas, kiosks, or home workspaces
• Applications requiring frequent screen angle adjustments for viewing or presentations

Key specifications

• Supported screen diagonal: 24.6 cm (9.7") to 32.8 cm (12.9")
• VESA compatibility: 75 x 75 mm and 100 x 100 mm
• Number of displays supported: 1

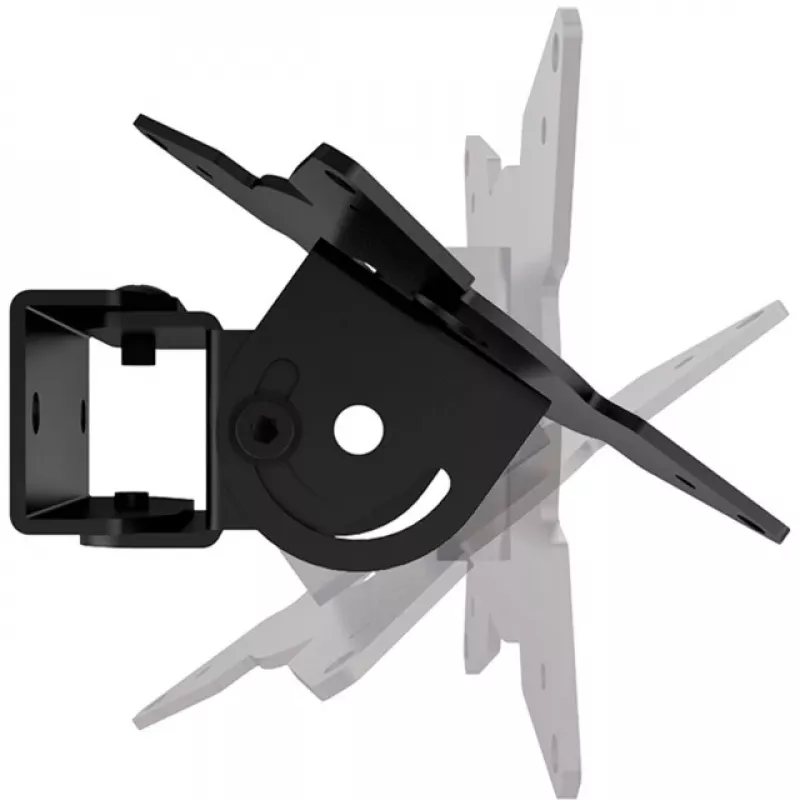

• Swivel range: -10° to 10°
• Tilt range: -90° to 90°
• Colour: black

How to use

Choose a suitable wall location with adequate load-bearing capacity and clearances for cable routing. Attach the mounting plate to the wall using appropriate anchors and screws for the wall material. Secure the compatible monitor to the mount using the VESA holes and the supplied or appropriate screws. Adjust the swivel and tilt angles to the desired position and tighten any adjustment screws to lock the display in place. Verify the installation for stability before leaving the mounted display in regular use.

Recommendations

Use suitable wall fixings rated for the combined weight of the monitor and mount. For frequent adjustments, check and retighten adjustment points periodically. Avoid excessive force beyond the stated swivel and tilt ranges to prevent damage to the mount or screen.
