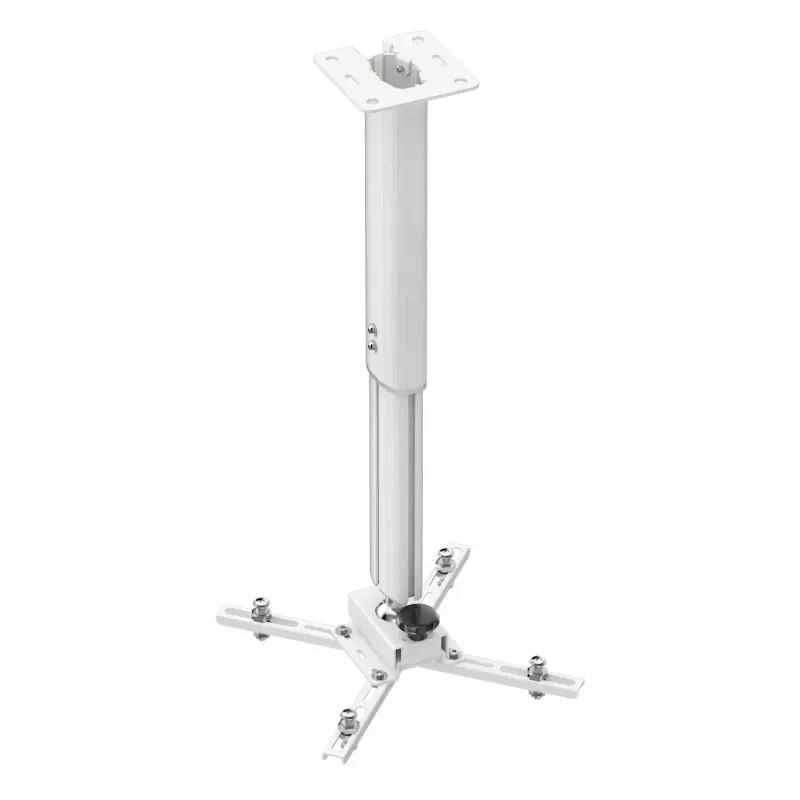

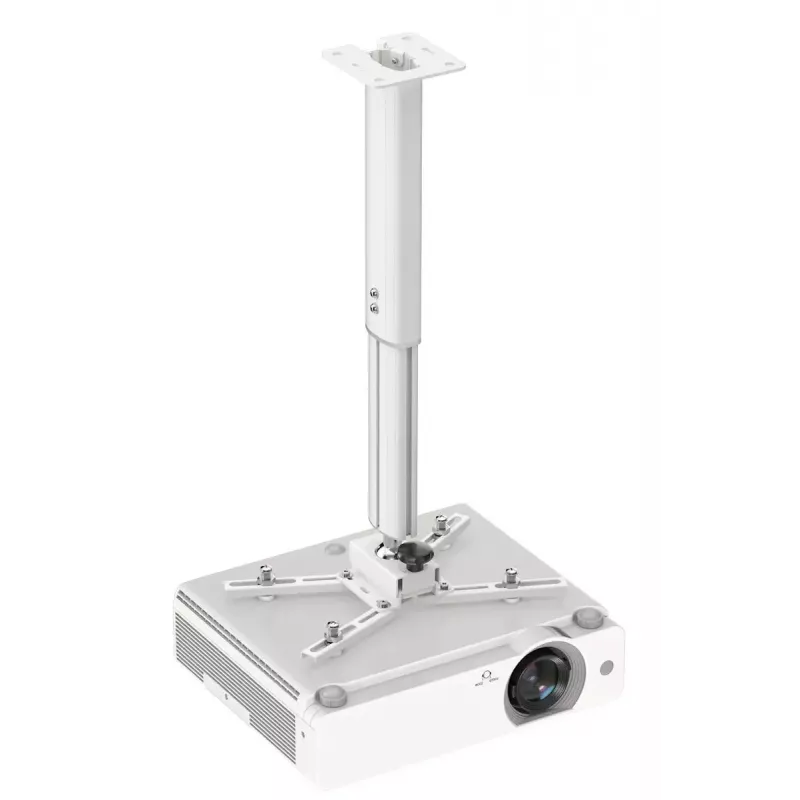

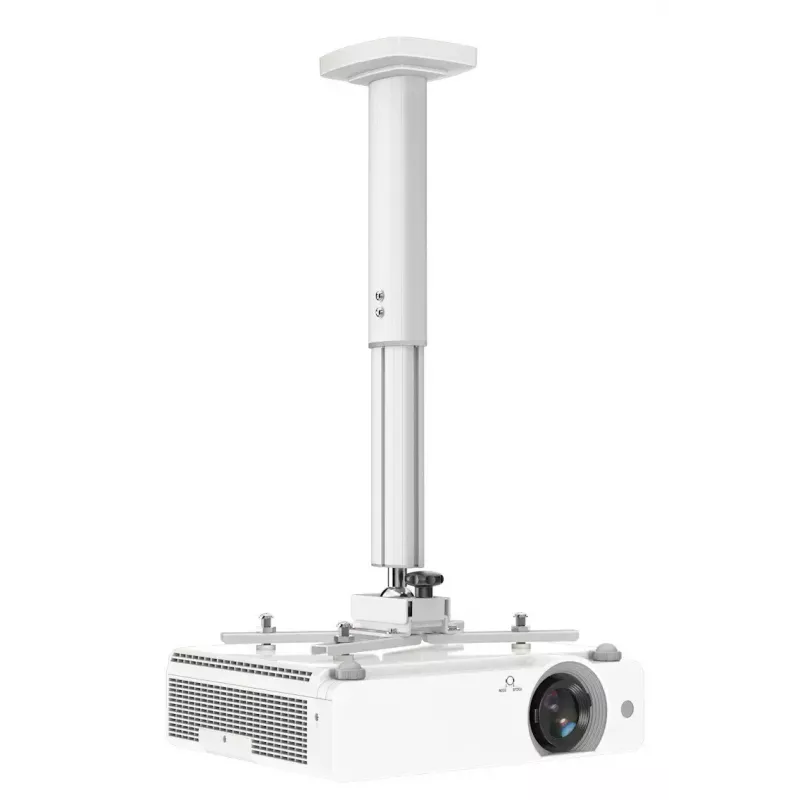

Βάση οροφής Kindermann Premium 60

The Kindermann Premium 60 ceiling mount provides a secure, adjustable support for data and video projectors. Finished in RAL 9003 white, it features an anodized aluminium profile with an internal cable channel and is TÜV/GS certified. The telescopic column covers a ceiling distance from 41 to 61 cm and the mount supports projectors up to 25 kg. The package includes a screw set (M3, M4, M5, M6) and height-adjustable distance elements.

Advantages

The Premium 60 uses a newly developed anodized aluminium profile with a fully covered interior cable channel for neat cabling. It ships pre-assembled for faster installation and allows stepless telescopic height adjustment. An aluminium ball-point joint with a quick-change system enables tilt of ±20° in all directions and rotation of ±180°. Fixing points range from 138 to 378 mm, and custom column lengths up to 300 cm are available on request.

Suitable for

Key specifications

How to use

Position the pre-assembled mount at the desired ceiling location, route the projector cables through the internal cable channel, and secure the column to the ceiling following local building and safety regulations. Attach the projector using the supplied screw set and adjust the fixing points to match the projector’s mounting holes. Use the stepless telescopic adjustment to set the required distance from the ceiling, then fine-tune tilt and rotation with the aluminium ball-point joint to achieve the correct projection alignment.

Recommendations

Ensure the combined weight of the projector and any accessories does not exceed the 25 kg maximum. For installations above standard loads or for custom column lengths up to 300 cm, contact the manufacturer to confirm suitability. Follow local installation codes and, if necessary, use professional installation services to maintain TÜV/GS-compliant safety standards.
